VM5404H / VM5808H User Manual
52
Grouping
Group
Option Description

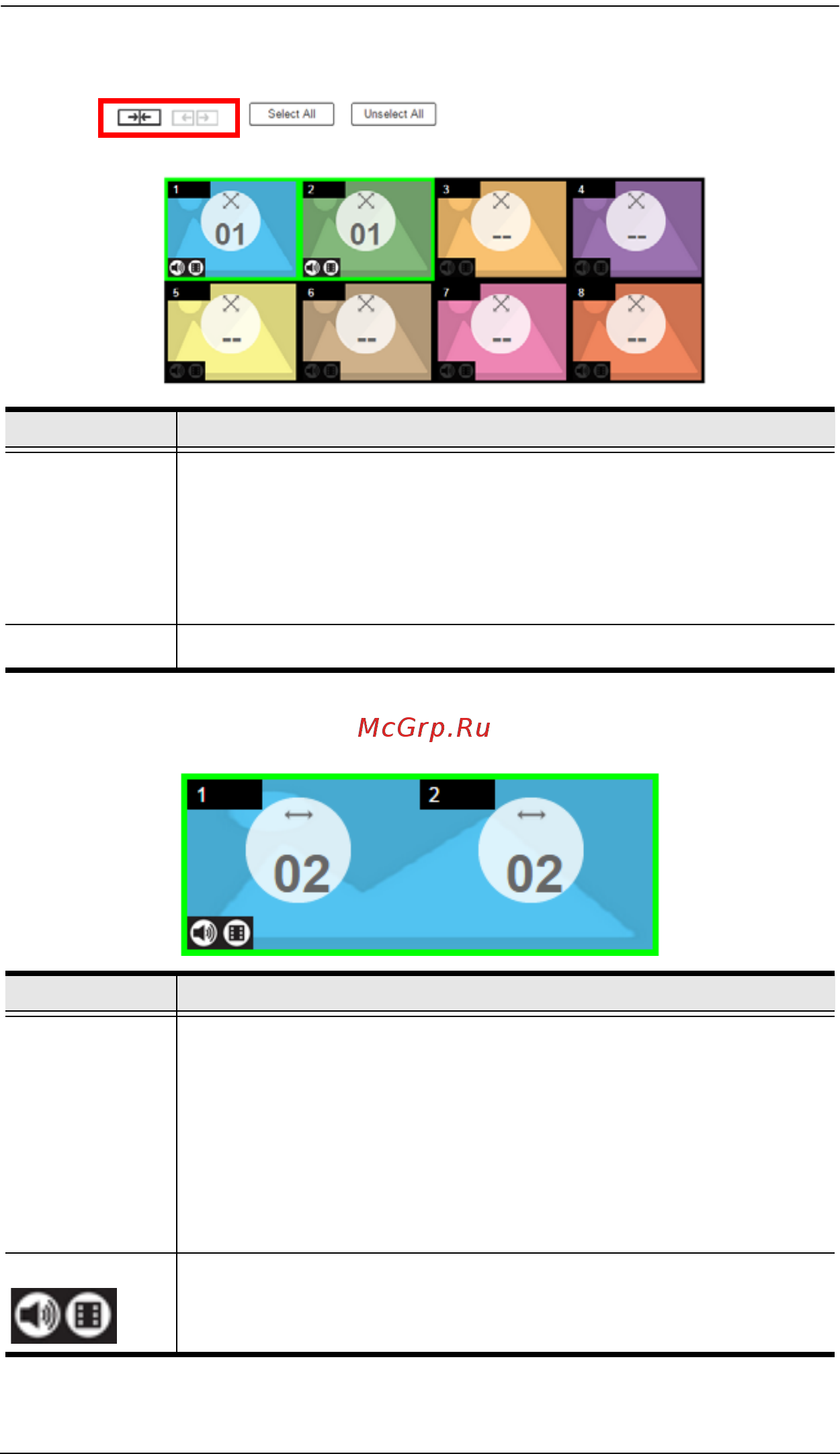

Grouping Click multiple icons to Group Outputs (highlighted in green) and
click
→|← to group the displays into one screen*. Use the Display
Preferences menu to select the Video Input for the group - each
Output icon in the Group will appear with the same Video Input
number and icon color (see Group, page 52).
Note: Before grouping you must set the Output port for each icon.
Ungroup
Select a group and click
←|→ to ungroup the displays.
Option Description
Group A Group (of Outputs) shares the same Video Input and displays
the video together as one large screen. A Group of Outputs:
Displays video across multiple monitors to form one screen
Icons have the same color and Video Input number.
Select a Group and use the Display Preferences menu to select
the Video Input.
To group outputs see Grouping, page 52.
Mute / Video Click the speaker icon to mute the audio on/off.
Click the video icon to turn the video off/on.
