VM5404H / VM5808H User Manual
30

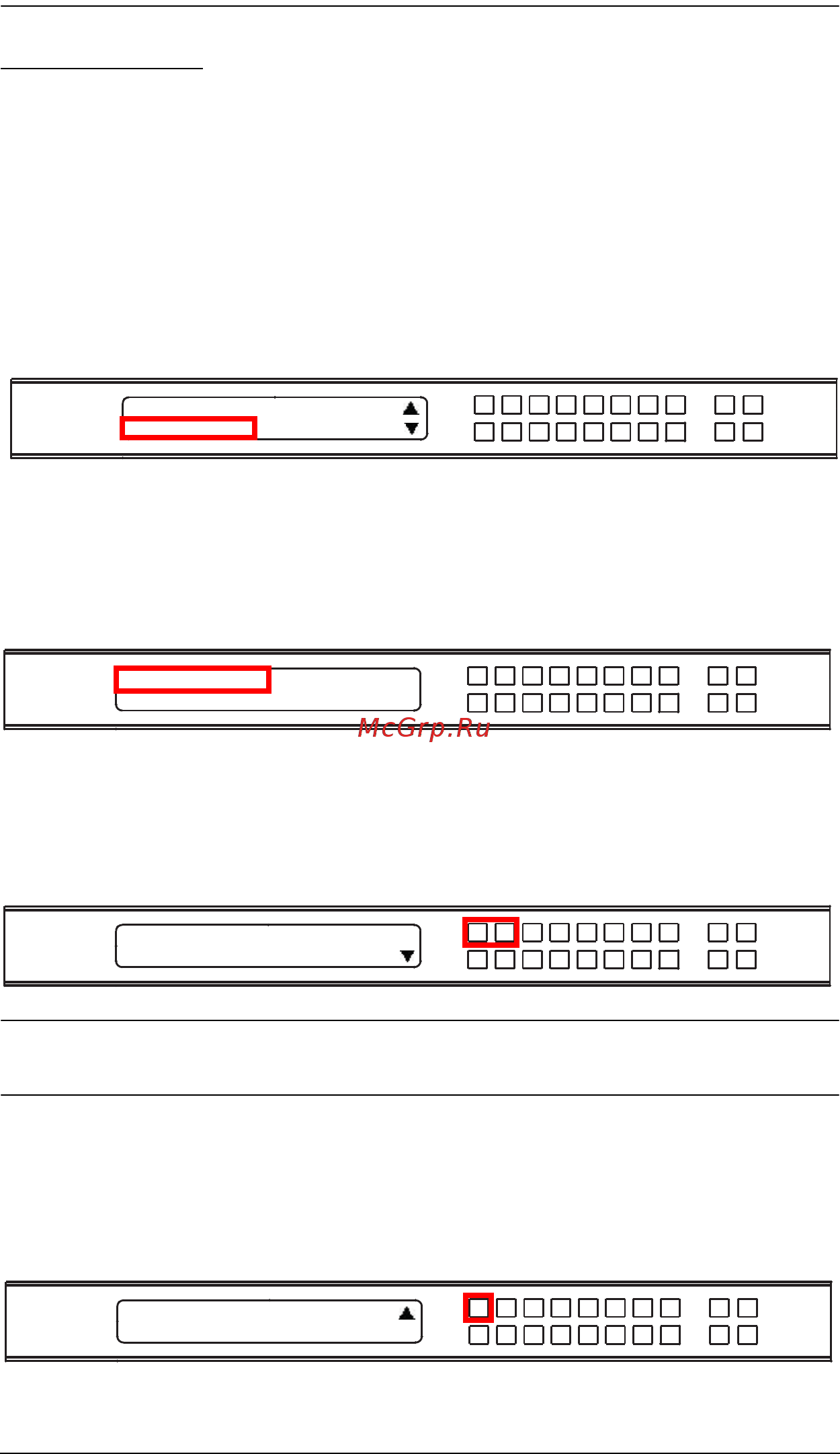

Security Mode
The Security Mode page allows users to manage the VM5404H / VM5808H’s
security-related settings. Three security modes are available: None, Password
Enable and Lock Screen. The VM5404H / VM5808H’s password can also be
changed here.
To configure the VM5404H / VM5808H’s security settings from the Main
Screen, use the Menu pushbutton to access the Menu page, press 8 or Next to
navigate to the next page, then press pushbutton 2 to access the Security Mode
page.
Mode
1. To change the VM5404H / VM5808H’s security mode, press pushbutton 1
in Security Mode.
2. In the Mode menu, to disable security settings, press pushbutton 1. The
menu will then return to Security Mode. To require a password after the
LCD display times out or is powered off/on, press pushbutton 2. The menu
will then return to the home screen.
Note: If Password is Enabled, the LCD display’s default time-out is 5 minutes.
The VM5404H / VM5808H’s default password is 1234.
3. To enable a lock screen, press 8 or Next to navigate to the next page, then
press pushbutton 1. The menu will then return to the home screen. When
Lock Screen is enabled, pressing any pushbutton from the home screen
will trigger the following message: Please press “Menu” to start.
1: Operation Mode
2: Security Mode
8: Next
7: Back
1. Mode: None
2. Change Password
1. None (In Use)
2. Password Enable
8: Next
1. Lock Screen
7: Back
