Chapter 4. Browser Operation
51

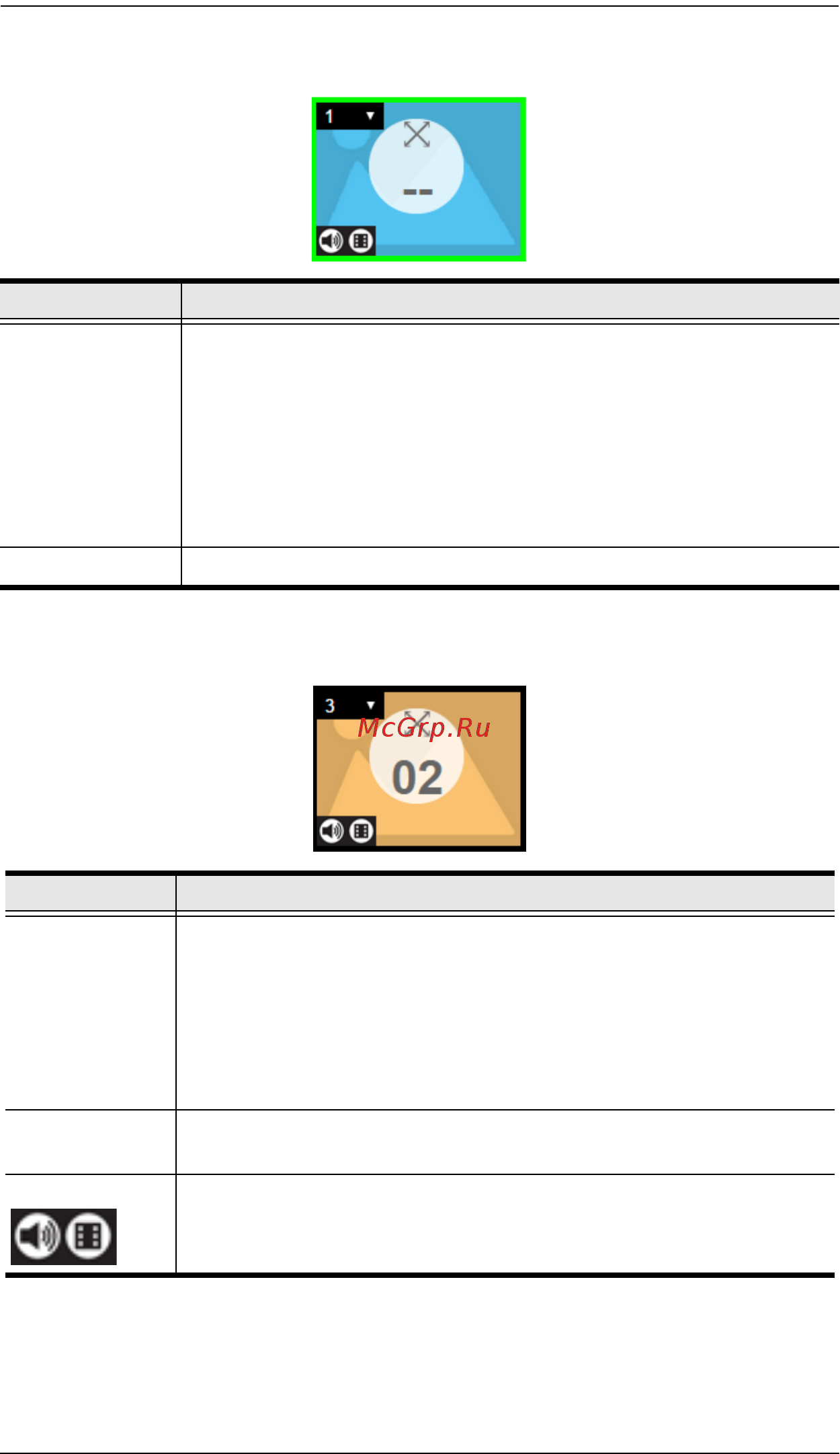

Blank Output
Independent Output
Option Description
Blank Icon Click Blank Output icons to highlight icons in green and use the
Display Preferences menu to set the video options (see Display
Preferences, page 53).
Select a single icon to set the Output and Video Input for an
independent display (see Independent Output, page 51).
Select multiple icons and set the Video Input to group displays as
one screen (see Grouping, page 52). You must first set the Output
port for each icon.
Drop-down Menu Use the drop-down menu to select the Output port.
Option Description
Independent
Output
Independent Outputs are displays that have their own Video Input
and Output selected. Independent Outputs:
Display their own video
Icons have their own color and Video Input
Select an Independent Output and use the Display Preferences
(page 53) menu select the Video Input.
Drop-down
Menu
Use the drop-down menu to select the Output port.
Mute / Video Click the speaker icon to mute the audio on/off.
Click the video icon to turn the video off/on.
