Chapter 3. Front Panel Configuration

Main Screen

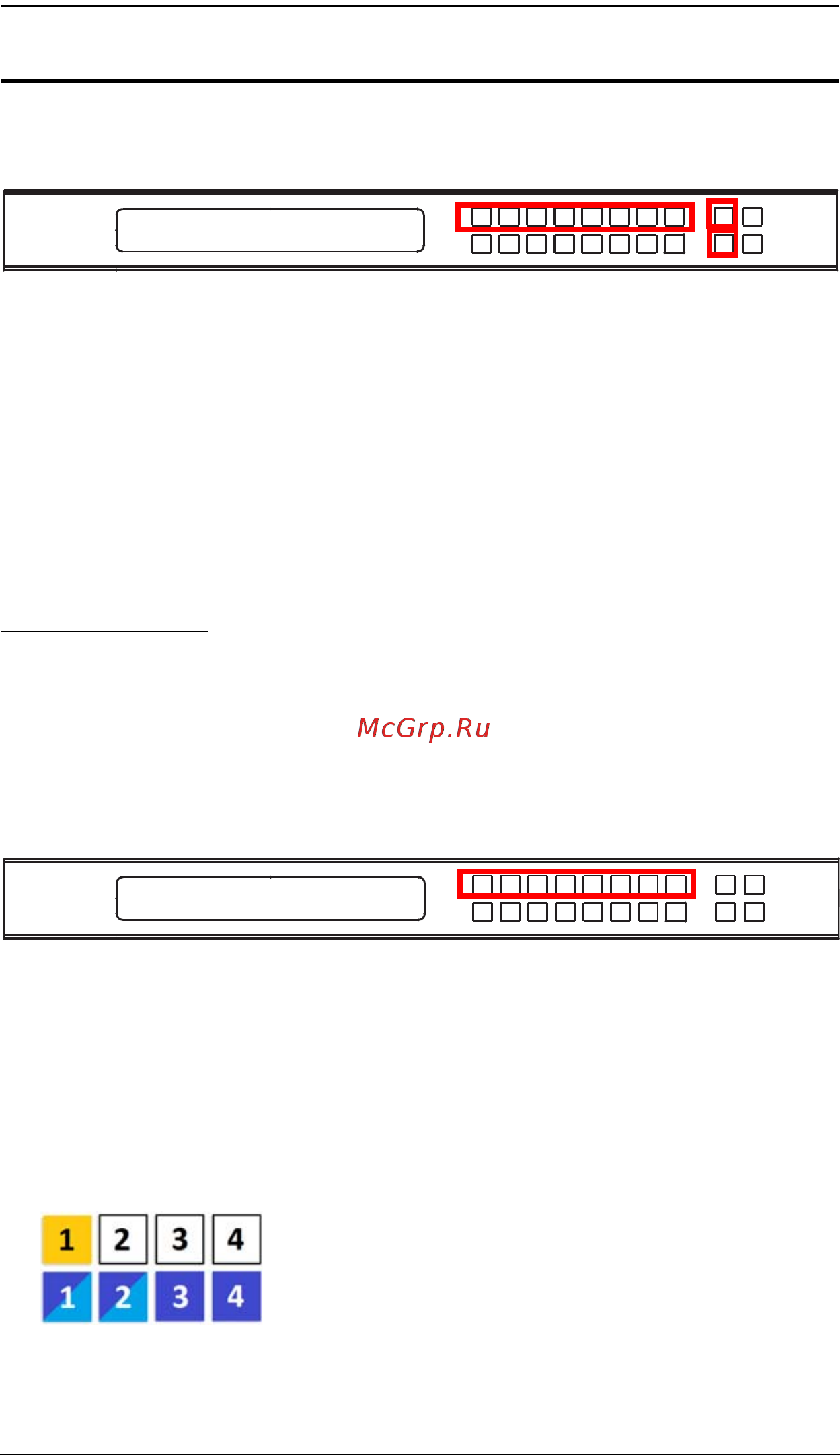

The Main Screen shows the Input ports in the top row, which are tied to the

Output ports shown in sequential order (1–8) or (1–4) at the bottom row.

 The front panel pushbutton label (1–8) or (1–4) corresponds to the Input

ports and Output ports on the unit’s rear panel.

 Use the Menu pushbutton to view the LCD Menu (see LCD Menu

Organization, page 21).

 Use the Profile pushbutton to switch between profile connections (see

Profile List, page 39).

Port Switching

From the Main Screen, users can configure the Input-to-Output port

connections to associate an Input source device to an Output display.

Input Port Selection

Use the Input Port pushbuttons to select the Input port you want to configure.

To select which input source displays on each output port, do the following:

1. Press any Input port pushbutton (1–8) or (1-4). The Output port LED(s)

tied to the said Input port will begin to flash. Available output port LED(s)

will light up (steady).

In the example below, pressing Input port 1 shows it is tied to Output ports

1 and 2.

(Continues on next page.)

INPUT 1 2 5 5 1 1 3 4

OUTPUT 1 2 3 4 5 6 7 8
