Chapter 3. Front Panel Configuration

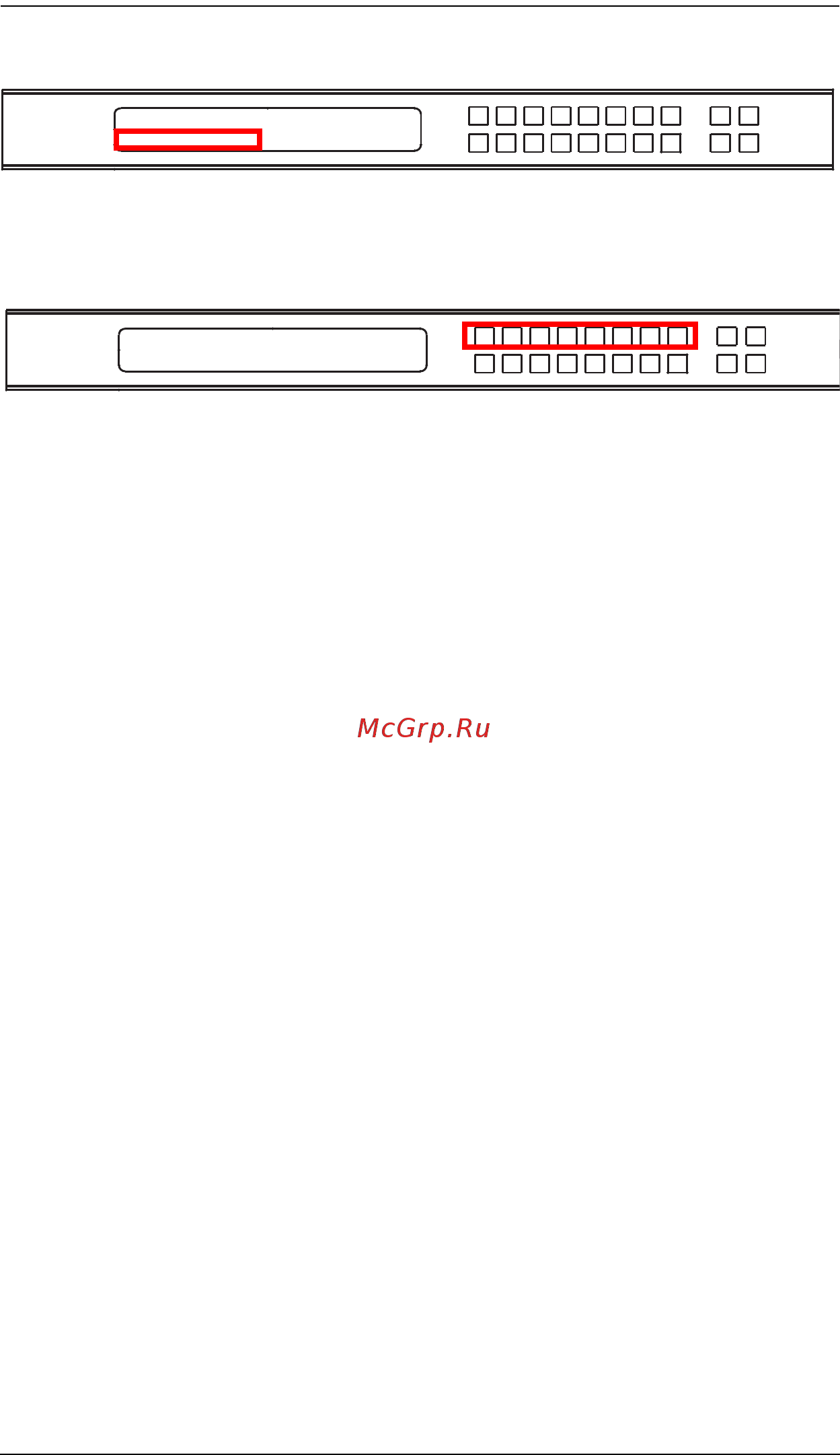

2. From the Output Status page, press 2 to select Output Resolution.

3. Press pushbuttons (1–8) or (1–4) to select an output port whose resolution

will be changed.

4. Available options include: Native Resolution, 1024x768@60Hz,

1280x720@60Hz, 1280x1024@60Hz, 1400x1050@60Hz,

1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz,

1280x720@50Hz, 1920x1080@50Hz, 1280x800@60Hz, 720x576@50Hz

and 1600x900@60Hz.

5. Press Menu to return to the Menu page.

6. Press Cancel to return to the previous step without saving.

1: Video

2: Output Resolution

OUTPUT 1 2 3 4 5 6 7 8
