Chapter 3. Front Panel Configuration
27
OSD
The On-Screen Display or OSD feature enables real-time text updates to
appear on the display device’s screen for any configuration changes made to
the Output port via the VM5404H / VM5808H’s front panel, IR remote control
or Browser GUI.

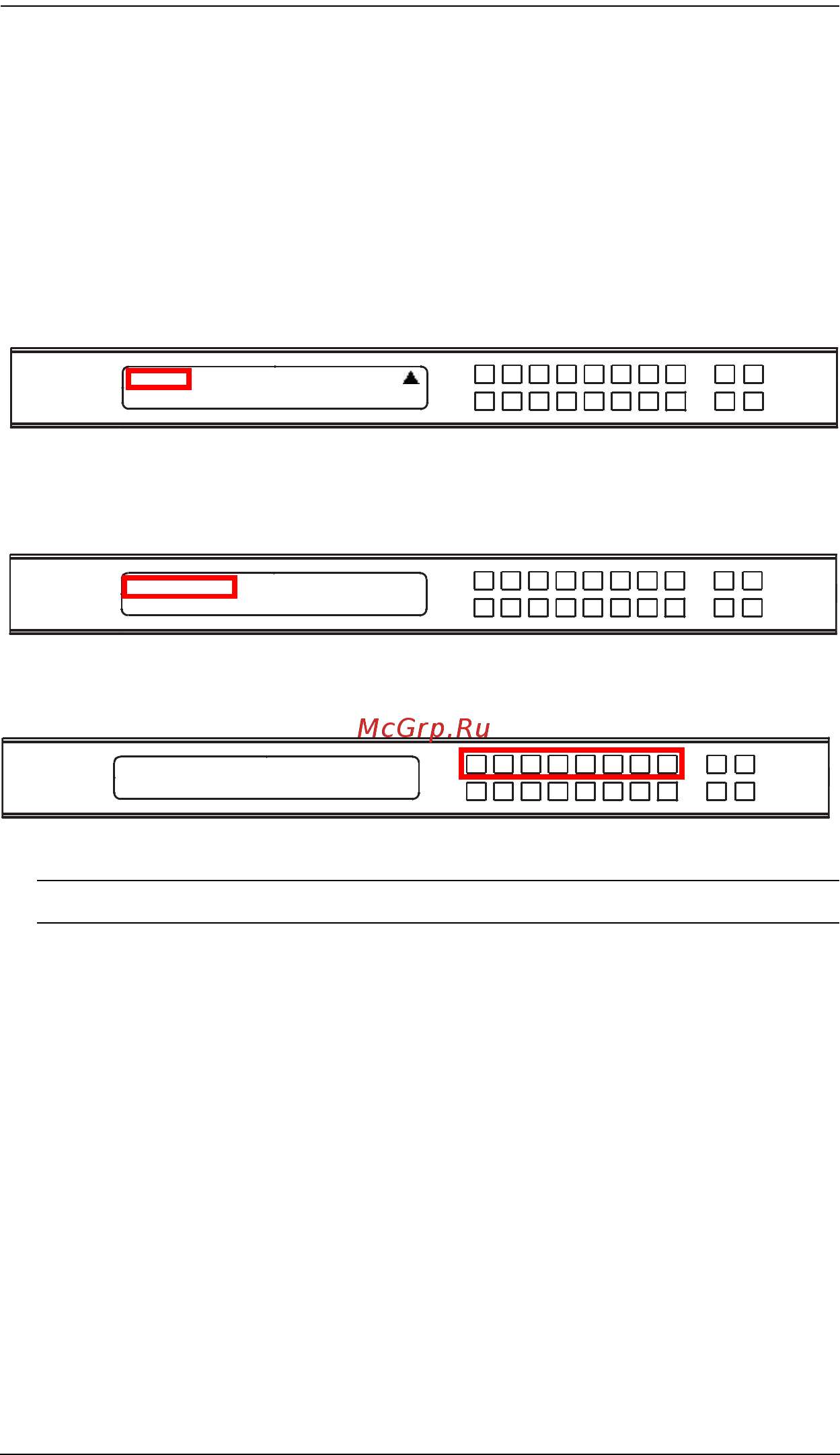

To configure the OSD setting for each output port, do the following:
1. From the Operation Mode page, press 8 or Next to go to the next page,
then press pushbutton 1:
2. From the Output Status page, press pushbutton 1:
3. Press pushbuttons (1–8) or (1–4) to enable (ON) or disable (NA) the OSD
feature for the output port.
Note: The default OSD setting is On.
4. Press Menu to return to the Menu page.
5. Press Cancel to return to the previous step without saving.
1: OSD
7: Back
2: Output Status
1: Video
OUTPUT 1 2 3 4 5 6 7 8
ON ON ON NA ON NA ON NA
