Hamax Caress Zenith серо-черный [5/86] Zenith

Zenith





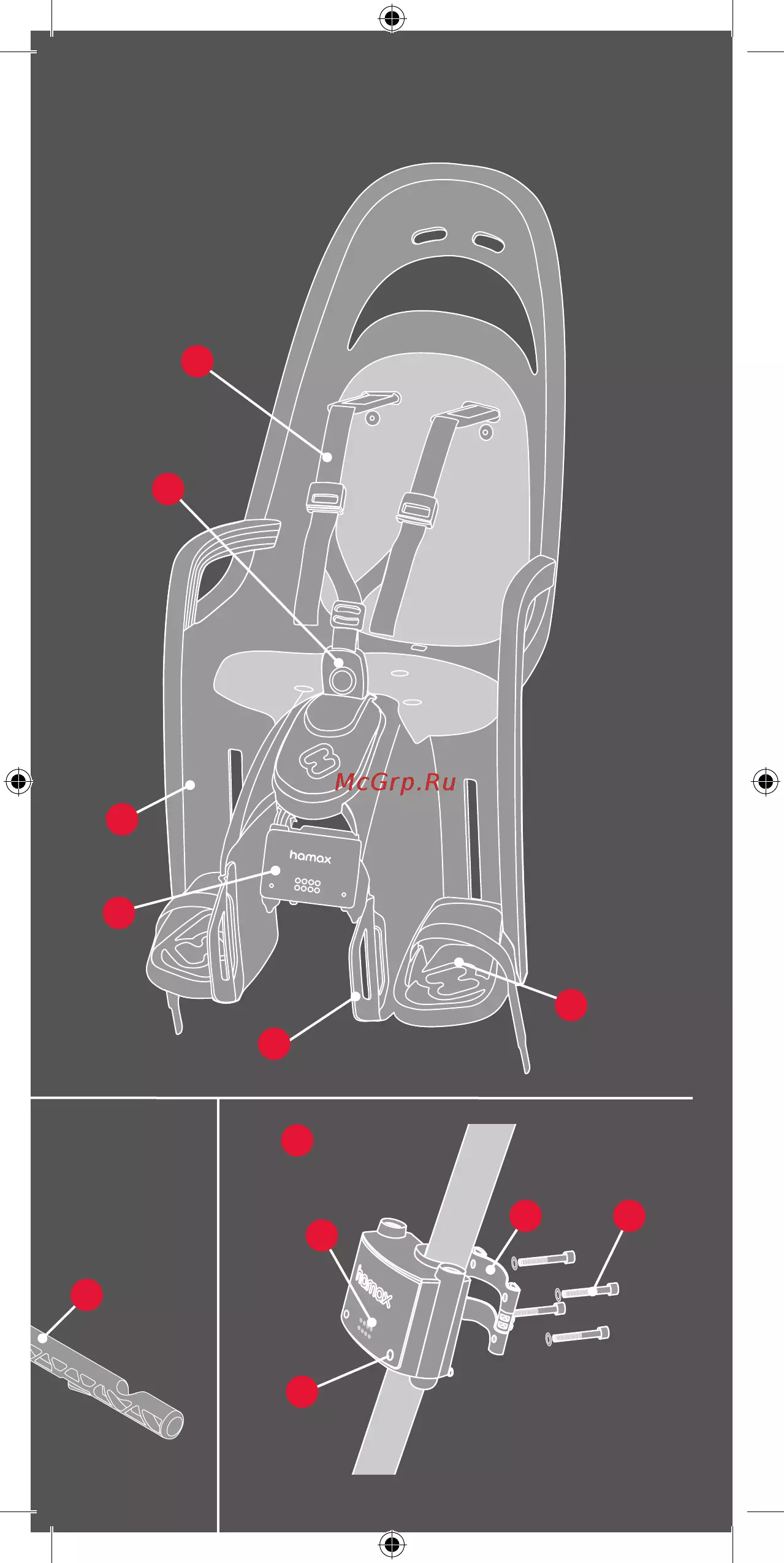

1. Main seat

2. Restraint system

3. Belt lock

4. Foot rests

5. Carrier bow

6. Fastening bracket complete

a) Bracket

b) Metal strips

c) Fastening screws

d) Safety indicator

7. Locking pin

8. Footguard

Содержание

Hx_zenith_carrier_bow_um_cover_2016 02 16_print 1
Bike frame tube 3
Important 3
Not ok 3
Ok not ok 3
Ø 28 40mm 3
Congratulations on purchasing the hamax bicycle child seat you now have a comfortable and safe child seat that can be adjusted to fit your child as she he grows 4
Keep these instructions in a safe place as they will be useful if you later buy extra equipment for your child seat 4
Please read the instructions carefully before assembling or using the child seat 4
User manual en 4
Zenith 5
Hx_zenith_carrier_bow_um_spreads_2016 02 16 print 9
Manuel de l utilisateur fr 10
Gebrauchsanleitung 11
Monterings og bruksanvisning no 12
Monterings og bruksanvisning 13
Návod k použití 13
Brugervejledning dk 14
Brugervejledning 15
Manual del usuario es 15
Käyttöohjeet 16
Korisnički priručnik hr 17
Käyttöohjeet 17
Felhasználói útmutató hu 19
Manuale d uso it 20
Manuale d uso 21
사용 21
사용자 설명서 kr 21
설치 21
Gebruikershandleiding 22
경고 22
유지 보수 22
Gebruikershandleiding 23
Instrukcja montażu i użytkowania 23
Instruções de utilização pt 24
Instruções de utilização 25
Manualul utilizatorului ro 26
Acoperiţi orice parte expusă a arcului de şa 27
Salutări de la hamax 27
Sfat cu un suport suplimentar puteţi muta cu uşurinţă scaunul între două biciclete 27
Să montaţi noile piese 27
Vă dorim dumneavoastră şi copilului multe călătorii plăcute cu bicicleta cu scaunul pentru copil hamax 27
Întreţinere la curăţarea scaunului folosiţi apă călduţă cu săpun în cazul în care scaunul copilului este implicat într un accident sau este deteriorat contactaţi distribuitorul pentru a verifica dacă mai poate fi folosit piesele deteriorate trebuie întotdeauna înlocuite luaţi legătura cu distribuitorul dacă nu sunteţi sigur cum 27
Использование 27
Руководство пользователя ru 27
Установка 27
Bruksanvisning se 28
Uzivatelska prirucka si 29
Návod na použitie sk 30
Ръководство за потребителя bg 31
Посібник користувача ua 33
Kullanım kılavuzu tr 34
Press 6 38
Press the front of the mounting bracket 6 to release the bracket from the transportation pins 13 remove the transportation pins the transportation pins 13 are recyclable 38
Remove the transportation lock 38
Zenith 38
Remove cable tie protective foam blocks 40
Remove the cable tie 11 by clipping them then remove the protection foam blocks 12 from the front and back both the cable tie and protection foam blocks are recyclable 40
Zenith 40
Remove locking pin 42
Turn the seat 1 upside down turn the locking pin 7 and push down the two snapfits before you pull the locking pin completely out 42
Zenith 42
Insert the carrier bow 5 through the holes as shown below 44
Mount the carrier bar to the seat 44
Zenith 44
Insert locking pin 46
Insert the locking pin 7 through the holes under the seat base keeping it in unlocked position to allow final adjustment later on 46
Zenith 46
Locked 2 unlocked 47
Fastening bracket 48
If there is a gear wire in the area where the metal strips 6b will be located the metal strips 6b may be placed between the wire and the frame tube 48
Place the fastening bracket 6a over the frame tube of the bike attach the bracket with the metal strips fastening screws 6b c do not tighten fully so that the height can be adjusted at a later stage 48
Zenith 48
Adjust the bracket 6a to the correct height until there is approx 10 12 cm between the rear wheel mudguard luggage carrier and the bicycle child seat 50
Guide the carrier bow ends 5 down into the bracket 6a until you hear a click locked position 50
Make it a rule to check and if needed re tighten the bracket before every bicycle ride 50
Mount the bicycle child seat onto the bracket 50
Suggested tightening torque is 10 nm this is however only a guideline if the bracket starts to move during use keep tightening until it is firmly fixed 50
Then tighten the four fastening screws 6c on the back of the bracket in the following pattern tighten and then re tighten 50
Zenith 50
Hamax fastening bracket 54
Hamax fastening bracket make sure the carrier bow is correctly attached to the bracket by checking that the green safety indicators 6d are visible 54
Not fastened fastened 54
Zenith 54
Adjusting the seat 56
Make sure the locking pin 7 is in the unlocked position before adjusting the seat to the correct lengthways position max 10 cm between the centre mark 14 on the seat and the rear hub after adjustment lock the seat by turning the locking pin 7 to locked position 56
Unlocked 56
Zenith 56
Locked 57
Foot rest adjustment 58
How to release the foot rest 4 release the footrest handle on the back by flipping it upwards move the foot rest 4 to the preferred height and fasten the foot rest by pressing the foot rest handle down 58
Zenith 58
Foot strap adjustment 60
How to fasten release the foot strap a to fasten the foot strap put the strap into the track and pull down to preferred length the strap will automatically lock it s only possible to tighten the strap when it is in the track to loosen the foot strap just pull it out of the track 60
Zenith 60
Extra footguard 62
To mount the extra foot guard 8 press the foot guard into the fitting grooves until it clicks 62
Zenith 62
Opposite view 63
Restraint system 64
The restraint system 2 can be attached and detached by pressing in or out the belt lock 3 shown in pic 1 it is important to press at the middle of the belt lock button pic 2 3 when detaching the restraint system the belt lock button needs an adult force to open this is for the safety of the child so they cannot open it 64
Zenith 64
Ok not ok 65
Pic 2 pic 3 65
Where to push 65
Chest buckle adjustment 66
The restraint system length can be adjusted by adjusting buckle a and b to adjust buckles a b hold the buckle as shown in pic 1 by pressing the red button the belt loosens by pulling the buckle upwards to tighten the restraint system just pull end of the belt straps pic 2 move the buckle c up to secure the belt so it cannot fall down from the child s shoulders pic 3 66
Zenith 66
How to remove the seat 70
The seat 1 is easy to remove from the bicycle when not in use press the cover of the bracket and pull the seat bar free from the bracket 6 70
Zenith 70
Adjust the restraint system 2 adjust the foot rests 4 and fasten foot straps check the safety indicators 6d of the bracket always wear helmets both child and adult 72
Before embarking on a bicycle trip 72
Nb never leave your child alone in the bicycle child seat please note that the kick stand is not a suitable support to hold the bicycle with a child in the seat 72
Zenith 72
Extra fastening bracket 76
With an extra bracket 6 you can easily move one seat between two bicycles hamax fastening bracket 6 is available in two version standard and lockable art nr 604001 standard bracket art nr 604002 lockable bracket 76
Zenith 76
Problem 78
Problem solving 78
Should your seat be too close to the carrier wheel when mounted there is an extra bar available which may solve your problem please contact your bicycle dealer 78
Zenith 78
Solution 79
Carrier adapter 80
Read more about the carrier adapters at www hamax com child bike seat caress collection zenith with carrier adapter full assembly instructions follows the product when purchased and can also ble downloaded from www hamax com 80
You may also mount the seat on a bicycle luggage carrier by means of a carrier adapter this can be useful if your bicycle has a frame diameter outside the range of 28 40 mm or if you have an electrical bicycle 80
Zenith 80
