• Press 6 p.38
• Zenith p.38
• Remove the transportation lock p.38
• Press the front of the mounting bracket 6 to release the bracket from the transportation pins 13 remove the transportation pins the transportation pins 13 are recyclable p.38
• Zenith p.40
• Remove the cable tie 11 by clipping them then remove the protection foam blocks 12 from the front and back both the cable tie and protection foam blocks are recyclable p.40
• Remove cable tie protective foam blocks p.40
• Zenith p.42
• Turn the seat 1 upside down turn the locking pin 7 and push down the two snapfits before you pull the locking pin completely out p.42
• Remove locking pin p.42
• Zenith p.44
• Mount the carrier bar to the seat p.44
• Insert the carrier bow 5 through the holes as shown below p.44
• Zenith p.46
• Insert the locking pin 7 through the holes under the seat base keeping it in unlocked position to allow final adjustment later on p.46
• Insert locking pin p.46
• Locked 2 unlocked p.47
• Zenith p.48
• Place the fastening bracket 6a over the frame tube of the bike attach the bracket with the metal strips fastening screws 6b c do not tighten fully so that the height can be adjusted at a later stage p.48
• If there is a gear wire in the area where the metal strips 6b will be located the metal strips 6b may be placed between the wire and the frame tube p.48
• Fastening bracket p.48
• Zenith p.50
• Then tighten the four fastening screws 6c on the back of the bracket in the following pattern tighten and then re tighten p.50
• Suggested tightening torque is 10 nm this is however only a guideline if the bracket starts to move during use keep tightening until it is firmly fixed p.50
• Mount the bicycle child seat onto the bracket p.50
• Make it a rule to check and if needed re tighten the bracket before every bicycle ride p.50
• Guide the carrier bow ends 5 down into the bracket 6a until you hear a click locked position p.50
• Adjust the bracket 6a to the correct height until there is approx 10 12 cm between the rear wheel mudguard luggage carrier and the bicycle child seat p.50
• Zenith p.54
• Not fastened fastened p.54
• Hamax fastening bracket make sure the carrier bow is correctly attached to the bracket by checking that the green safety indicators 6d are visible p.54
• Hamax fastening bracket p.54
• Adjusting the seat p.56
• Zenith p.56
• Unlocked p.56

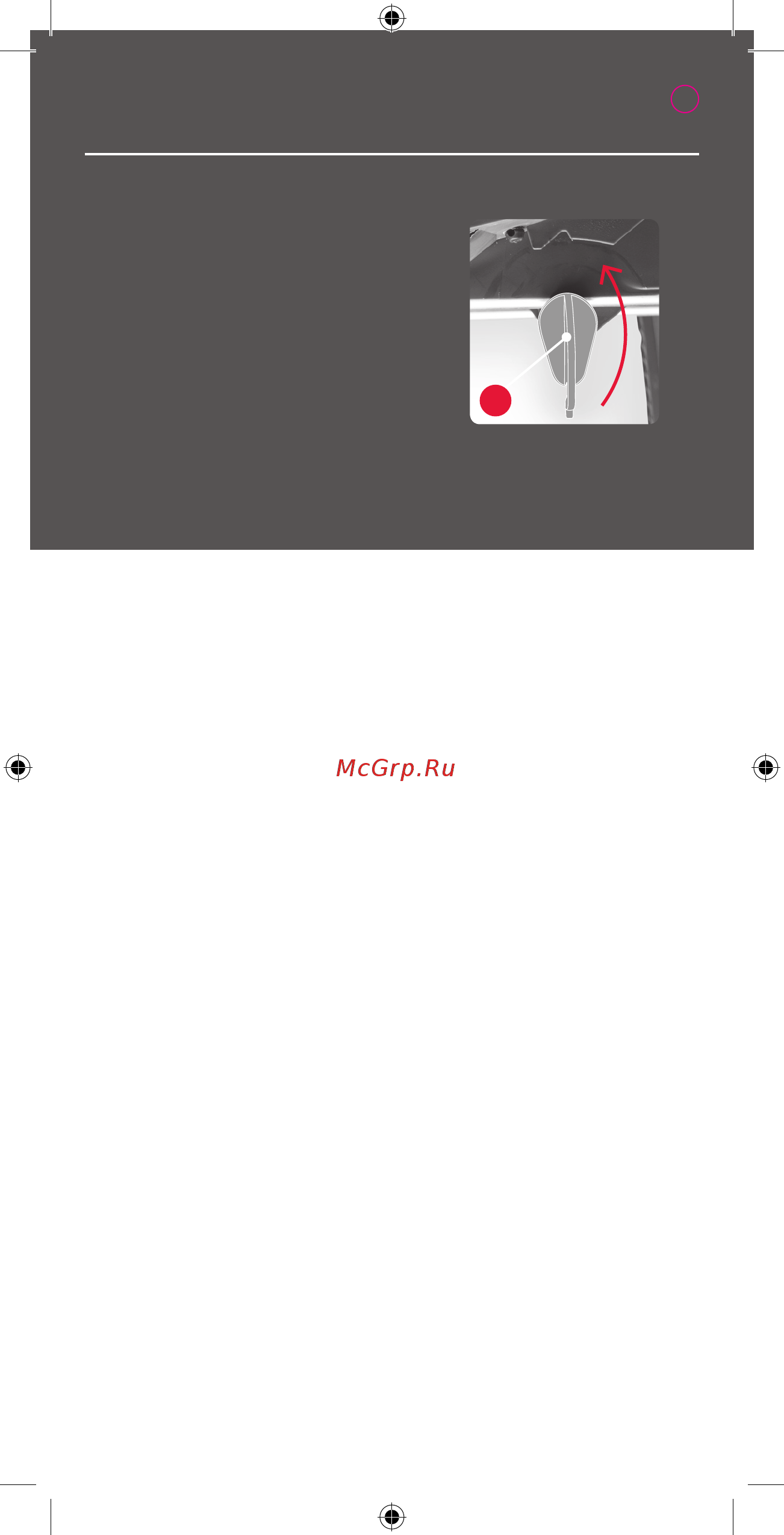

• Make sure the locking pin 7 is in the unlocked position before adjusting the seat to the correct lengthways position max 10 cm between the centre mark 14 on the seat and the rear hub after adjustment lock the seat by turning the locking pin 7 to locked position p.56
• Locked p.57
• Zenith p.58
• How to release the foot rest 4 release the footrest handle on the back by flipping it upwards move the foot rest 4 to the preferred height and fasten the foot rest by pressing the foot rest handle down p.58
• Foot rest adjustment p.58
• Zenith p.60
• How to fasten release the foot strap a to fasten the foot strap put the strap into the track and pull down to preferred length the strap will automatically lock it s only possible to tighten the strap when it is in the track to loosen the foot strap just pull it out of the track p.60
• Foot strap adjustment p.60
• Zenith p.62
• To mount the extra foot guard 8 press the foot guard into the fitting grooves until it clicks p.62
• Extra footguard p.62
• Opposite view p.63
• The restraint system 2 can be attached and detached by pressing in or out the belt lock 3 shown in pic 1 it is important to press at the middle of the belt lock button pic 2 3 when detaching the restraint system the belt lock button needs an adult force to open this is for the safety of the child so they cannot open it p.64
• Restraint system p.64
• Zenith p.64
• Where to push p.65
• Pic 2 pic 3 p.65
• Ok not ok p.65
• Zenith p.66
• The restraint system length can be adjusted by adjusting buckle a and b to adjust buckles a b hold the buckle as shown in pic 1 by pressing the red button the belt loosens by pulling the buckle upwards to tighten the restraint system just pull end of the belt straps pic 2 move the buckle c up to secure the belt so it cannot fall down from the child s shoulders pic 3 p.66
• Chest buckle adjustment p.66
• Zenith p.70
• The seat 1 is easy to remove from the bicycle when not in use press the cover of the bracket and pull the seat bar free from the bracket 6 p.70
• How to remove the seat p.70
• Zenith p.72
• Nb never leave your child alone in the bicycle child seat please note that the kick stand is not a suitable support to hold the bicycle with a child in the seat p.72
• Before embarking on a bicycle trip p.72
• Adjust the restraint system 2 adjust the foot rests 4 and fasten foot straps check the safety indicators 6d of the bracket always wear helmets both child and adult p.72
• With an extra bracket 6 you can easily move one seat between two bicycles hamax fastening bracket 6 is available in two version standard and lockable art nr 604001 standard bracket art nr 604002 lockable bracket p.76
• Extra fastening bracket p.76
• Zenith p.76
• Zenith p.78
• Should your seat be too close to the carrier wheel when mounted there is an extra bar available which may solve your problem please contact your bicycle dealer p.78
• Problem solving p.78
• Problem p.78
• Solution p.79
• Zenith p.80
• You may also mount the seat on a bicycle luggage carrier by means of a carrier adapter this can be useful if your bicycle has a frame diameter outside the range of 28 40 mm or if you have an electrical bicycle p.80
• Read more about the carrier adapters at www hamax com child bike seat caress collection zenith with carrier adapter full assembly instructions follows the product when purchased and can also ble downloaded from www hamax com p.80
• Carrier adapter p.80
