10D-Link DNS-323 User Manual

Section 2 - Installation

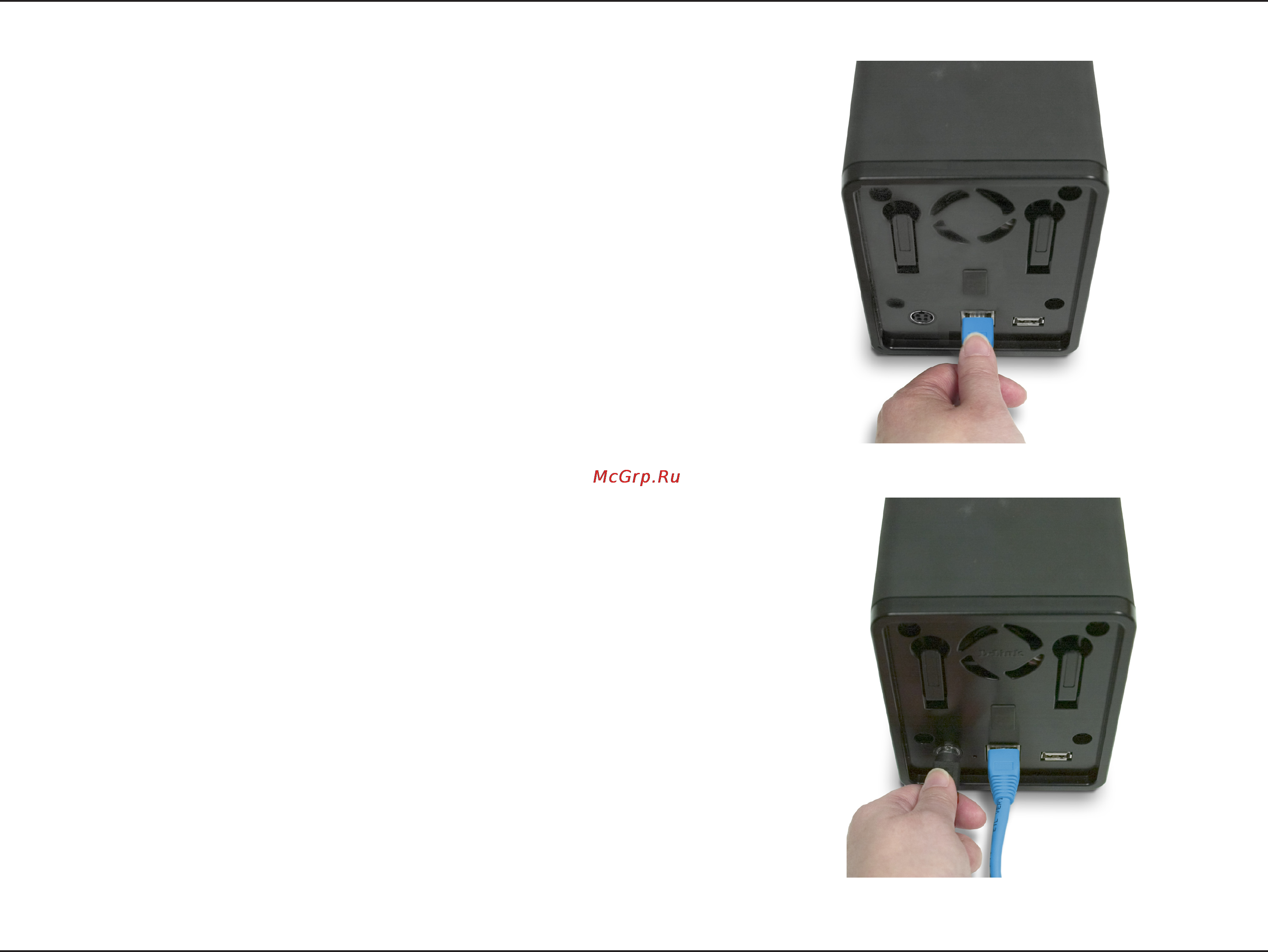

5. Connect an Ethernet cable into the available

Ethernet port. This cable should connect the

DNS-323 to your local network or directly to a

computer for conﬁguration.

6. Finally, connect the power adapter to the power

receptacle.
