39D-Link DNS-323 User Manual
Section 3 - Configuration
System
Restart
Restore
Defaults
Configuration
Settings
Idle Time

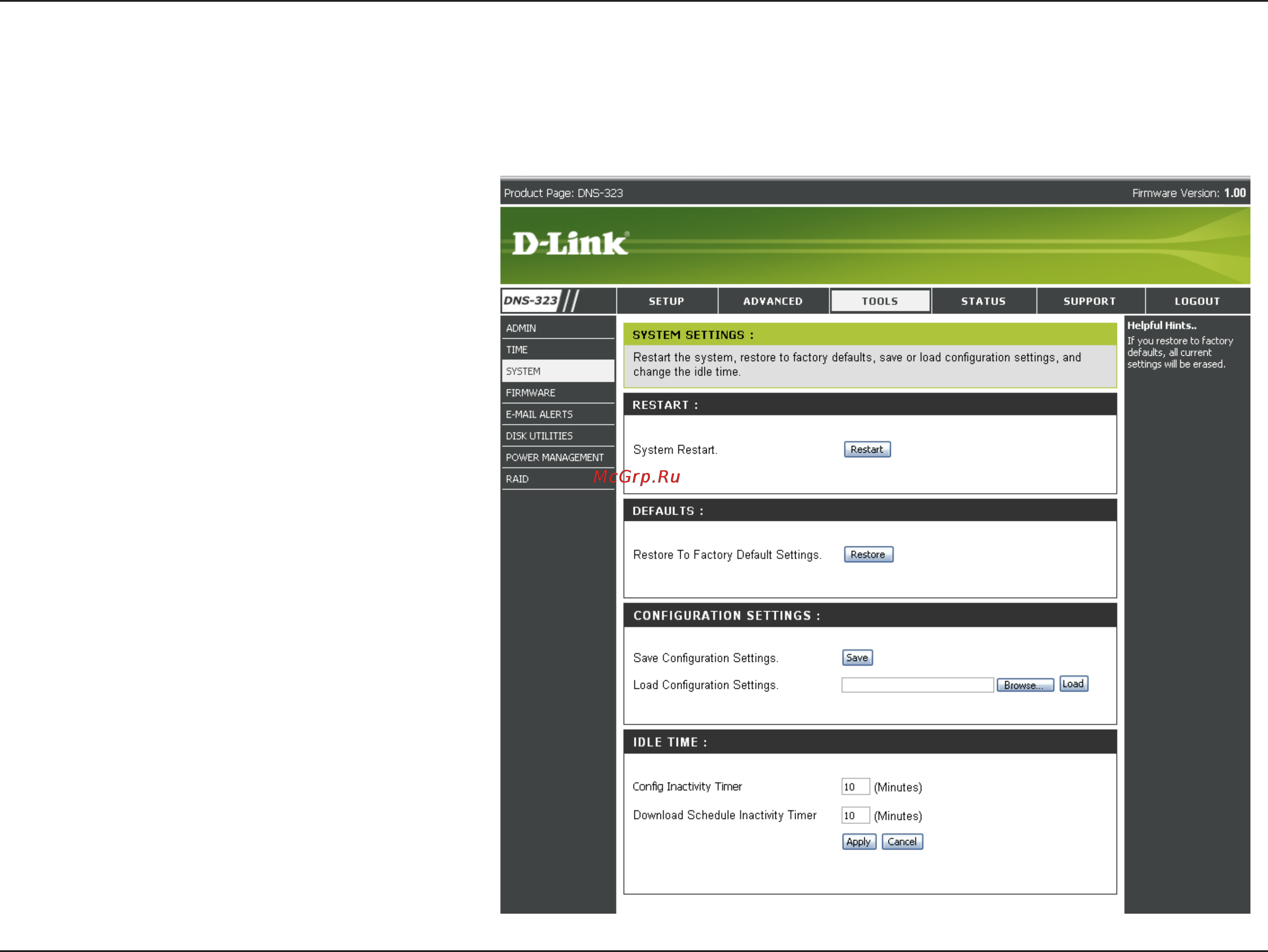

The DNS-323 System menu provides options for system restarts, saving and loading configuration settings, and setting
idle times.
Click Restart to reboot the
DNS-323.
Click Restore to reset the DNS-323
to it’s factory default settings. This
will erase all previous configuration
changes.
Click Save to save the current
DNS-323 configuration settings to
a file on the local computer. If at a
later time you need to reload this
configuration after a system reset,
browse to the file and click Load.
Enter the time (in minutes) that
the administrator will be allowed
to remain idle while accessing the
DNS-323 configuration settings or
that users will be allowed to remain
idle while accessing the download
schedule settings.
Click Apply to save the settings.
