24D-Link DNS-323 User Manual
Section 3 - Configuration
Users

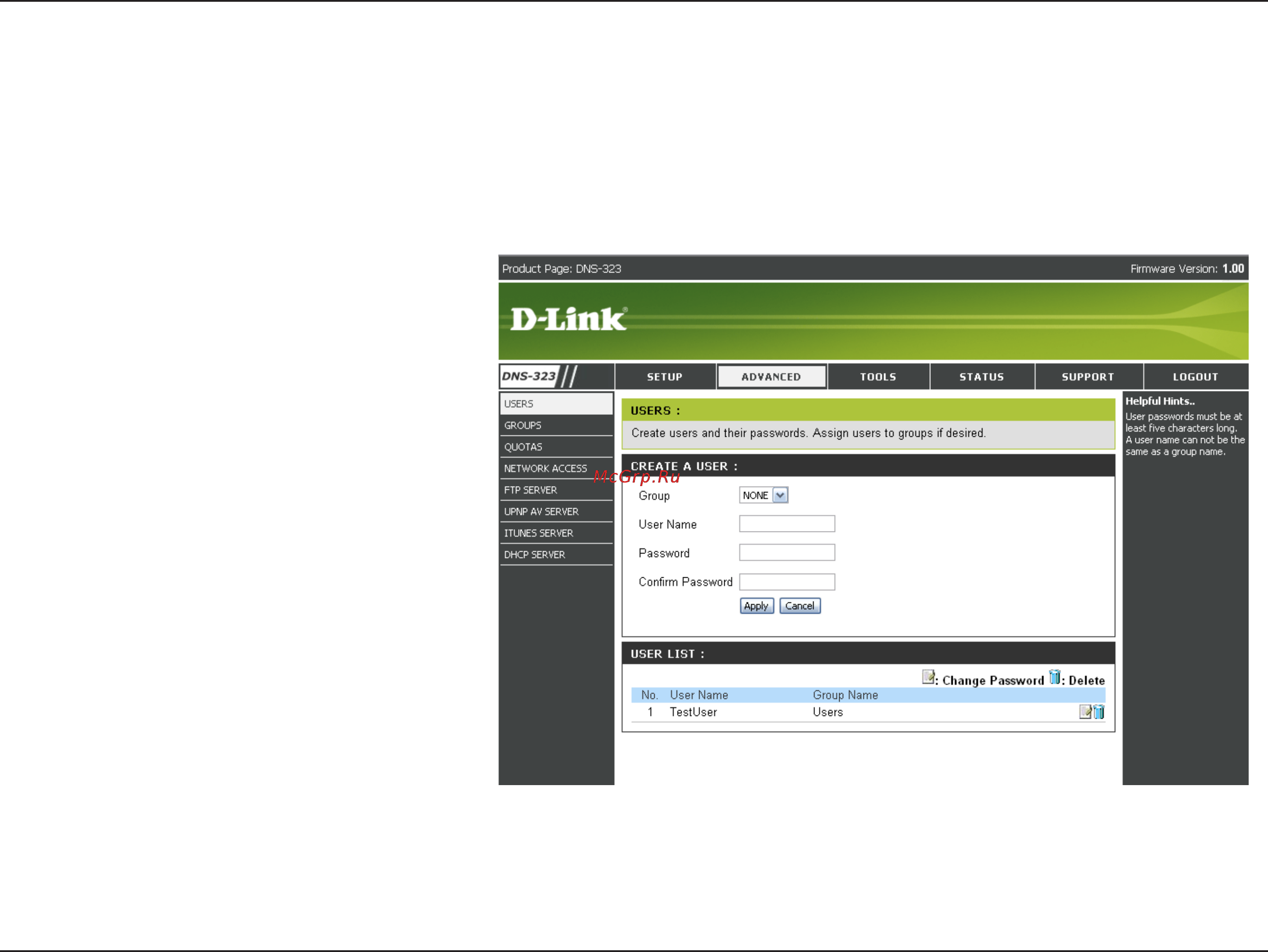

Create a User
User List
The DNS-323 supports up to 64 unique users. The users can be specified by group, or created individually. The users
are created to allow access to specific folders on the DNS-323, via FTP or the local network.
This section contains required
attributes for a new user, including
group, user name and password.
Users and their groups are displayed
in this list.
Group
Select a previously created Group
for the user to join.
User Name
Set a unique name for the user.
Password
Set a unique password for the
user.
Confirm
Password
Confirm the assigned password for
the user.
Advanced
