D-Link DNS-323 [6/70] Hardware overview
![D-Link DNS-323 [6/70] Hardware overview](/views2/1045661/page6/bg6.png)
6D-Link DNS-323 User Manual
Section 1 - Product Overview
Hardware Overview

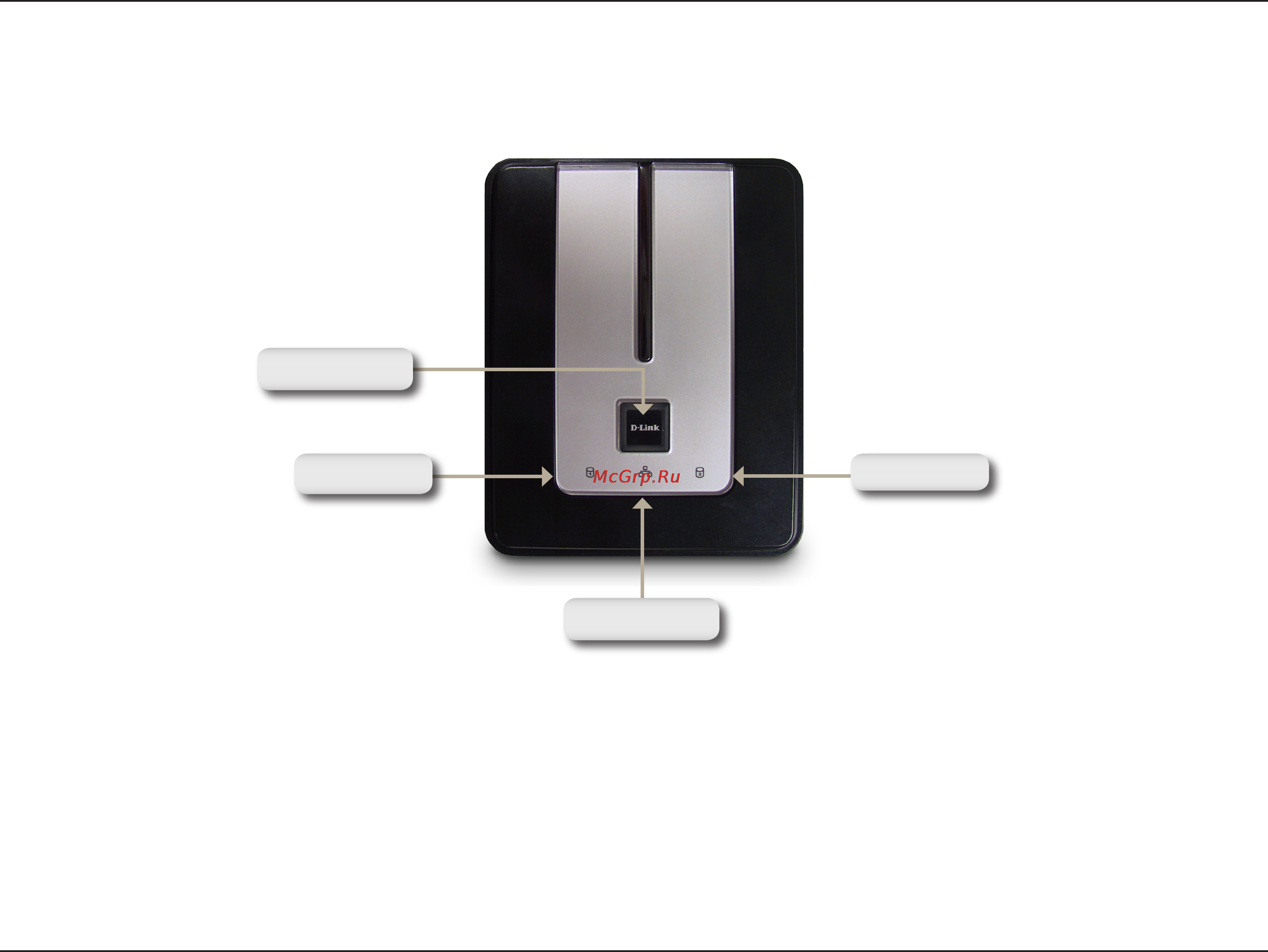

Front View
Power Button:
Press once to power on the DNS-323. Press and hold the button until it begins to blink to power down the DNS-323.
Drive LEDs:
These LEDs will be solid BLUE when drives are connected but inactive. The LEDs will blink when the drives are being
accessed, formatted or synchronized. They will illuminate AMBER if a drive has failed.
Activity LED:
The Activity LED will be solid BLUE when there is an Ethernet connection. It will blink to indicate LAN traffic.
Power Button
Drive LED Drive LED
Activity LED
