3D-Link DNS-323 User Manual
Section 1 - Product Overview
Product Overview

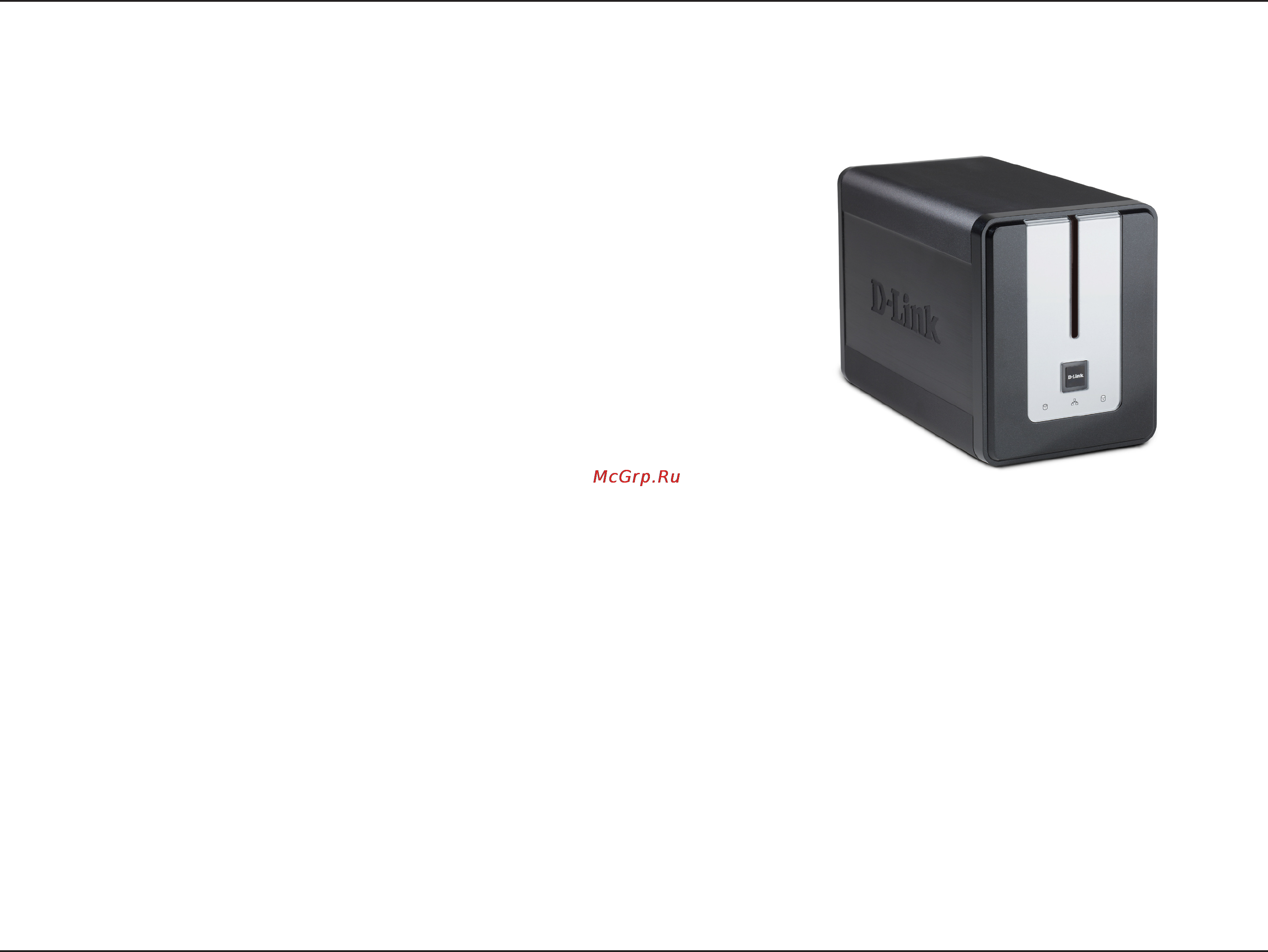

D-Link DNS-323 Network Enclosure
CD-ROM with Manual and Software
Quick Installation Guide
Power Adapter (12V; 3A , 5V; 3A)
Power Cable Clip
Cat 5 Ethernet Cable
Package Contents
Note: Using a power supply with a different voltage than the one included with the DNS-323 will cause damage and void
the warranty for this product.
If any of the above items are missing, please contact your reseller.
For best results, the following System Requirements are recommended:
Computer with: 1Ghz processor / 512 MB RAM / 200 MB available space / CD-ROM drive
Internet Explorer version 6.0 or Mozilla Firefox 1.0 and above
3.5” SATA Hard Drive
Windows XP SP2 or Windows 2000 SP6
System Requirements
