13D-Link DNS-323 User Manual
Section 3 - Configuration

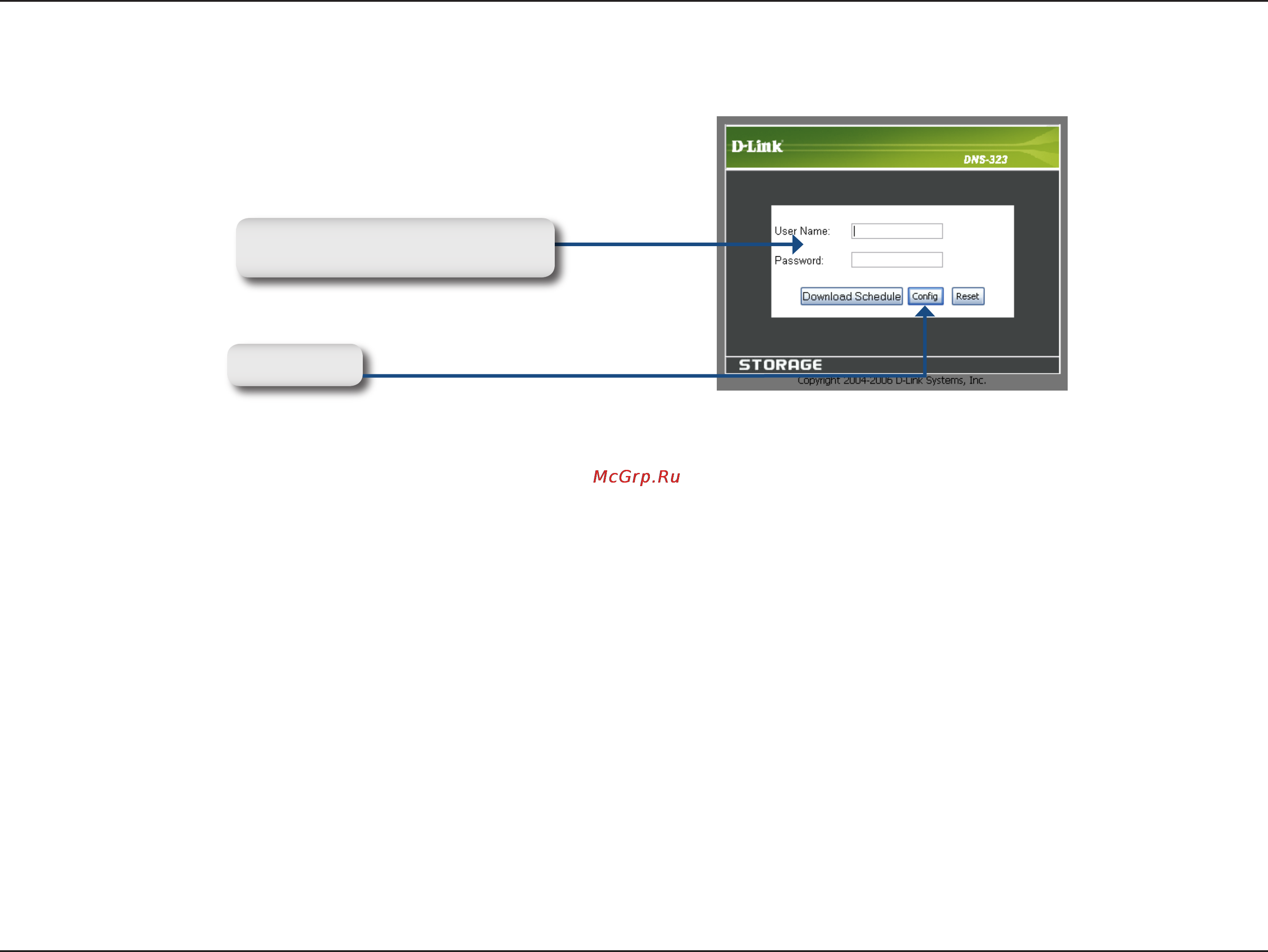

The Login screen will appear:
Type admin for the username and
leave the password field blank.
Click Config
When logging into the DNS-323 for the first time, you will be asked to choose a drive configuration and format the drives.
There are four options, Standard, JBOD, RAID 0 and RAID 1. Standard configures each disk as a separate volume, while
JBOD combines both disks into a single volume. See page 46 for more details on using the RAID configurations.
You will also need to select the disk format type. Available options are Ext2 and Ext3, with Ext2 providing better
performance and Ext3 providing better support for crash recovery.
Note: All data will be erased during the format process.
