45D-Link DNS-323 User Manual
Section 3 - Configuration
Power Management
Power
Management

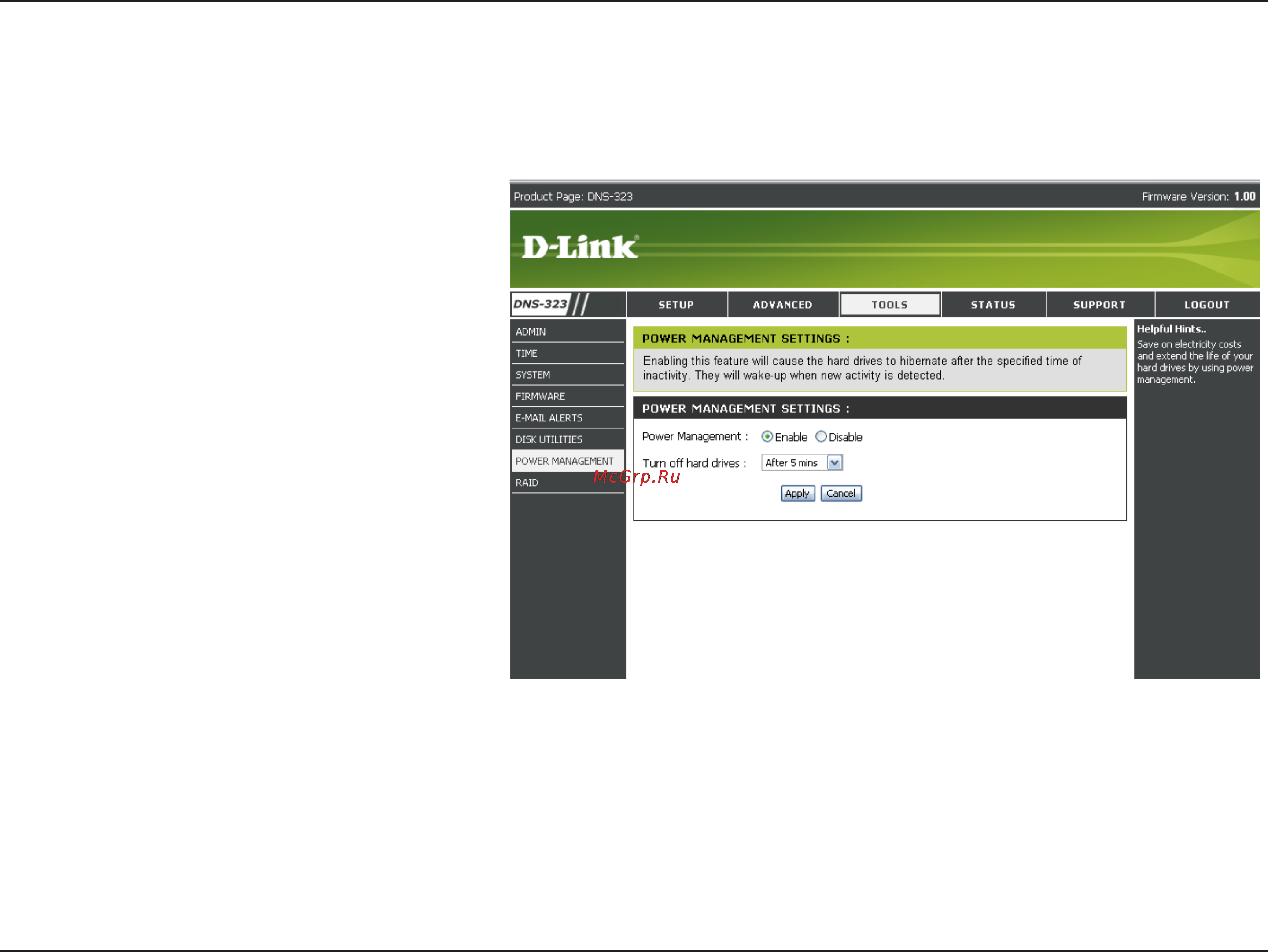

The DNS-323 Power Management feature allows you to configure the drives to shut down while power remains constant
to the device. The drives will power up again when data is accessed.
E n a b l e o r D i s a b l e P o w e r
Management on the DNS-323.
Turn off Hard
Drives
Set the amount of time before idle
drives will shut down.
Click Apply to save the settings.
