33D-Link DNS-323 User Manual
Section 3 - Configuration
UPnP AV Server

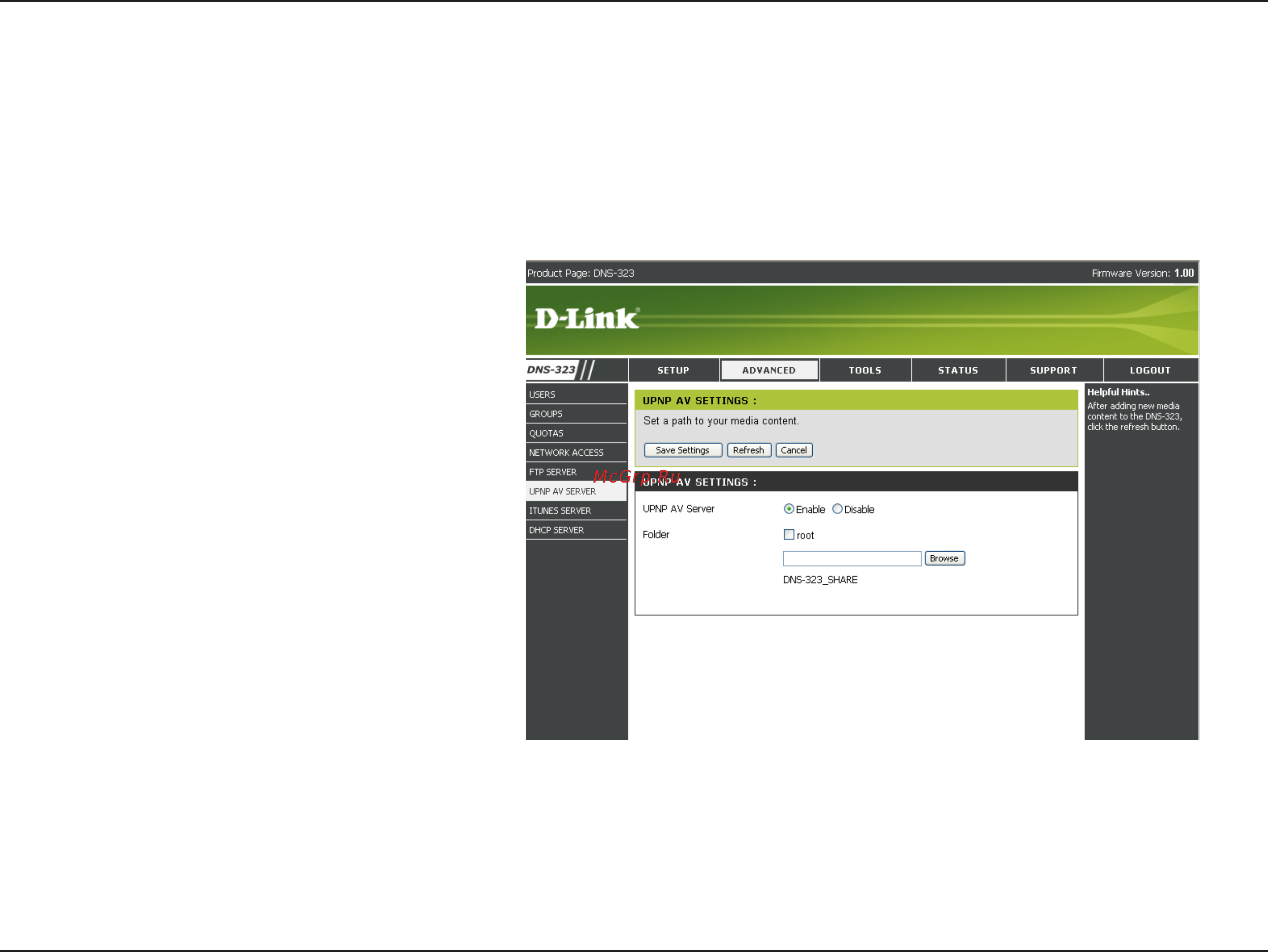

UPnP AV
Server
Folder
Select Enable or Disable to enable
or disable the DNS-323 UPnP AV
server.
The DNS-323 features a UPnP AV Server. This server provides the ability to stream photos, music and videos to UPnP
AV compatible network media players. If the server is enabled, the DNS-323 will be automatically detected by UPnP
AV compatible media players on your local network.
Specifies the folder or directory
that will be shared by the UPnP
AV server. Select root to share the
entire volume, or click Browse to
select a specific folder.
Refresh
Click Refresh after adding new files
to be used by UPnP AV compatible
devices.
