38D-Link DNS-323 User Manual
Section 3 - Configuration
Time
NTP Server
From My
Computer
Set Time
Manually
Daylight
Saving Time

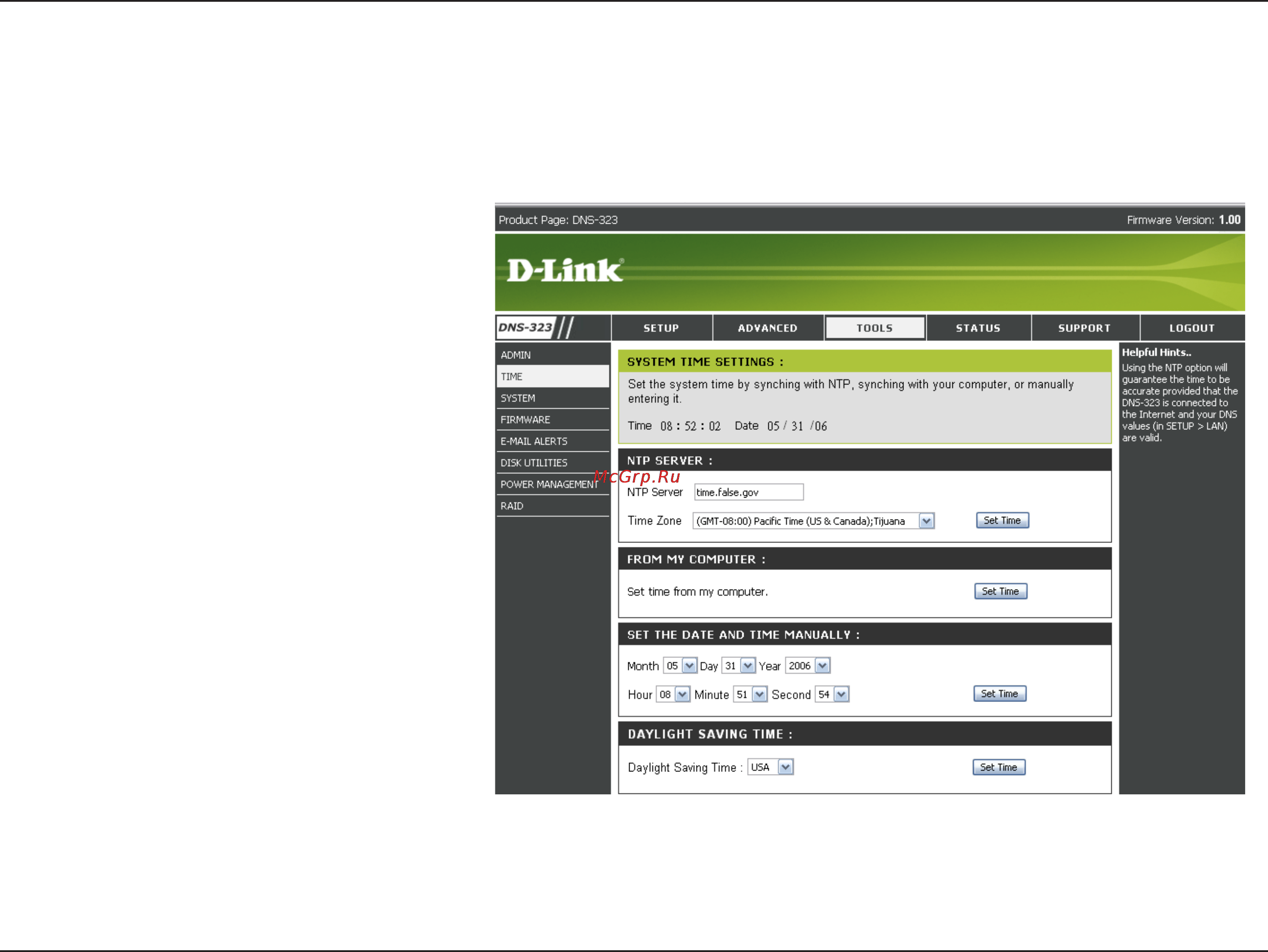

The DNS-323 Time menu contains several different options for setting the device’s internal clock. It is important that
accurate time is set so that scheduled backups and downloads will be accurate.
Network Time Protocol (NTP)
synchronizes the DNS-323 with an
Internet time server.
Enter the IP Address or domain
name of the time server you want
to sync the DNS-323 with and click
Set Time.
This option will synchronize the
DNS-323 clock with the computer
being used to configure it.
Click Set Time to sync with the local
computer.
This option allows you to set the
time and date manually.
Enter the appropriate time and date
and click Set Time.
Available Daylight Saving Time
options are None, USA, or EU
(Europe).
Select the appropriate option and
click Set Time.
