44D-Link DNS-323 User Manual
Section 3 - Configuration
Disk Utilities
Scan Disk
Defragment

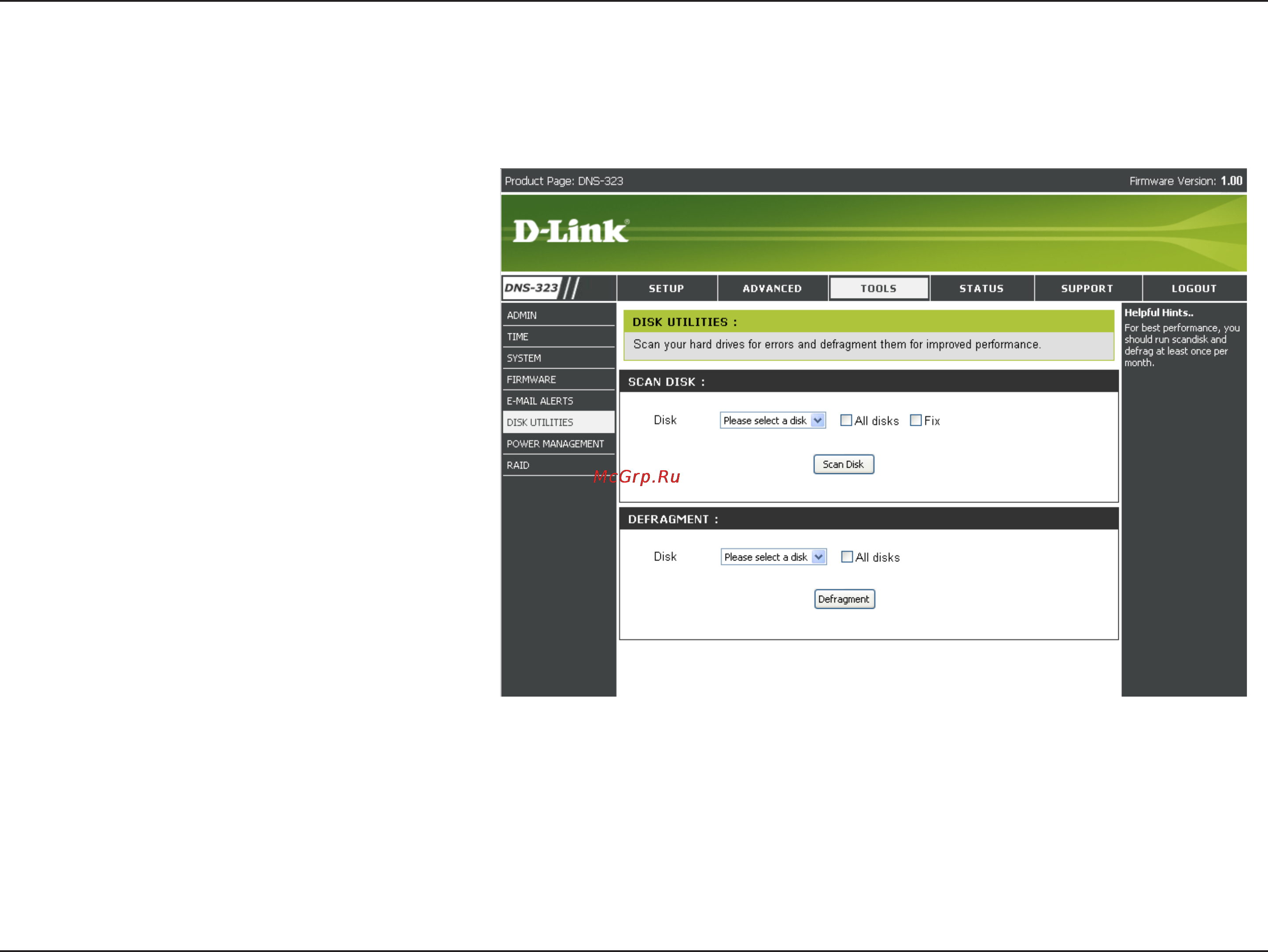

The DNS-323 has Scan Disk and Defgrament utilities to help the device performance.
Select the disk you want to scan.
Check All disks to scan all the
disks. Check Fix if you want the
DNS-323 to fix any problems found
during the scan.
Click Scan Disk to begin the
scan.
The way files are organized on your
drives can have an effect on the
drive performance.
The Defragment utility can improve
drive performance by removing any
data fragmentation thus increasing
the read/write speed of the disk.
Select the disk you want to
defragment or check All disks to
defragment all disks.
Click Defragment to begin the
defragment process.
