55D-Link DNS-323 User Manual

Section 3 - Conﬁguration

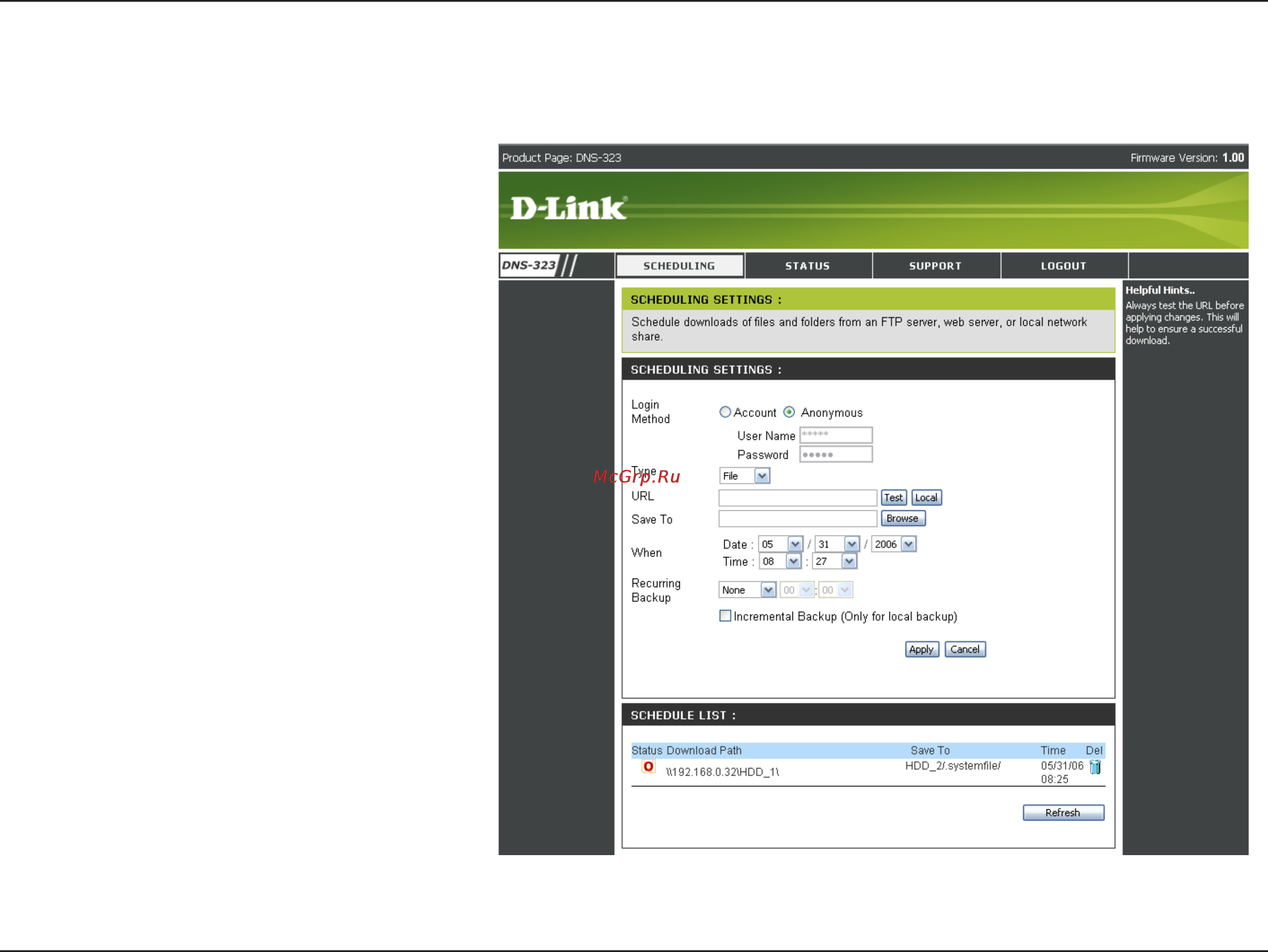

Scheduling

Settings

Conﬁgure download and backup

schedules here.

Schedule List

The Schedule List will display all

completed, active, and pending

s c h e d u l e d d o w n l o a d s a n d

backups.

Scheduling
