36D-Link DNS-323 User Manual
Section 3 - Configuration
DHCP Server

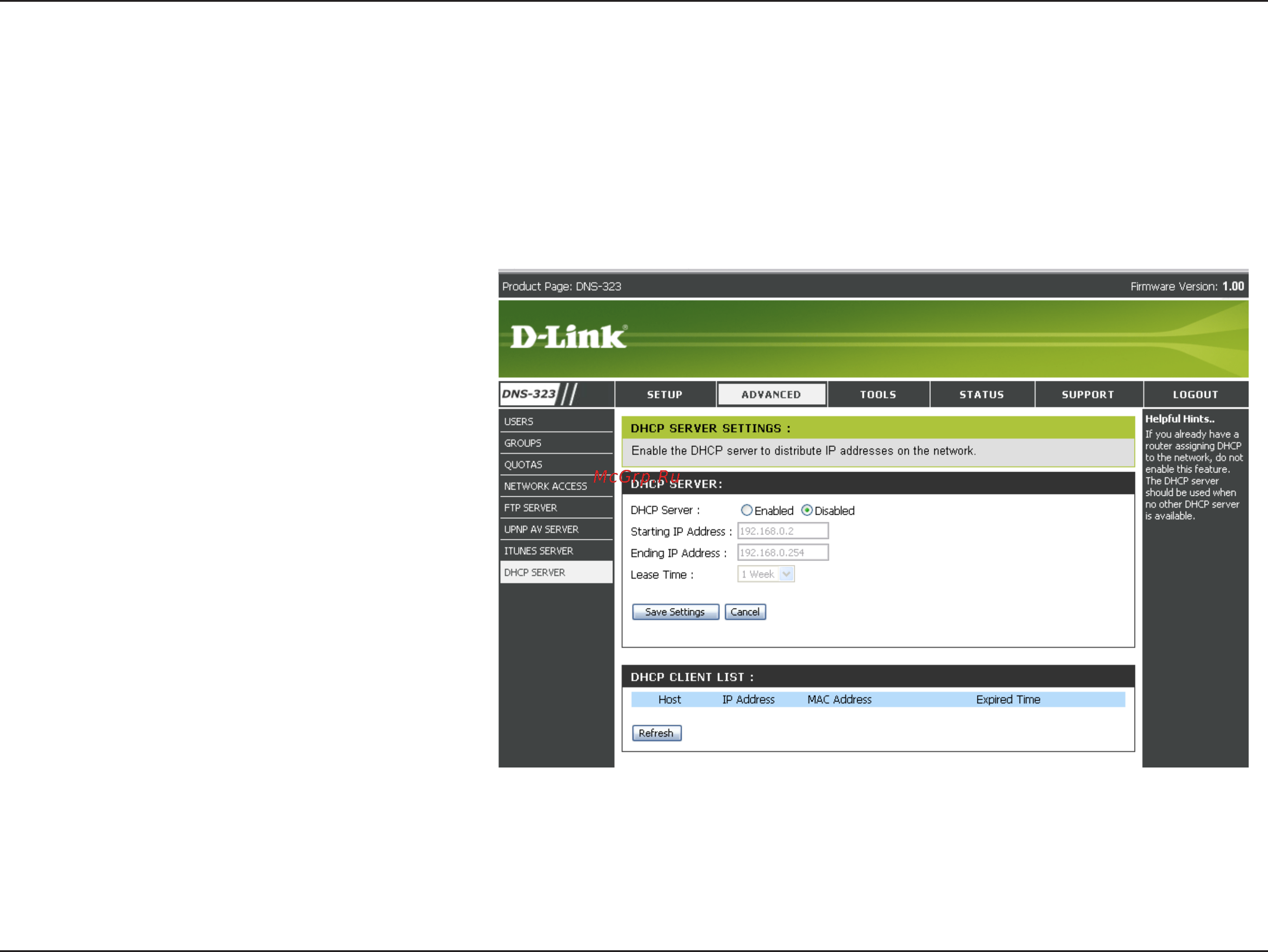

DHCP Server
Starting IP
Address
Lease Time
The DNS-323 can also be used as a DHCP Server. As a DHCP server, it can be used to serve IP addresses to devices
on your local network, however, this feature should not be enabled if you already have a DHCP server, such as a router
on your local network.
Enables or Disables the DNS-323
DHCP Server.
Enter the starting IP address for the
range of addresses assigned by the
DHCP server.
Ending IP
Address
Enter the ending IP address for the
range of addresses assigned by the
DHCP server.
Sets the duration of time that an IP
address will remain assigned to a
device.
