48D-Link DNS-323 User Manual

Section 3 - Conﬁguration

Status

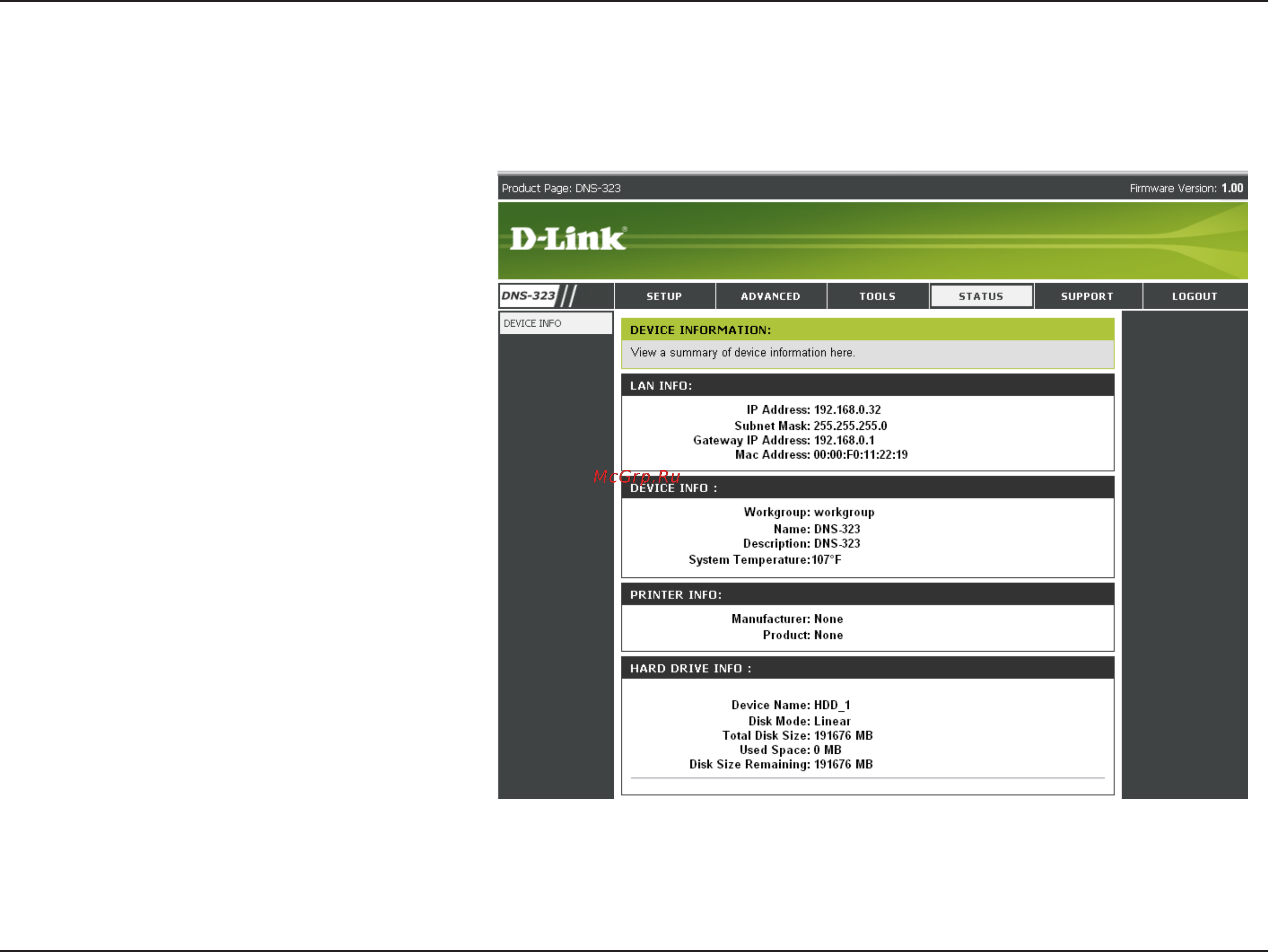

Device Info

LAN Info

Displays the local network settings

of the DNS-323.

Device Info

Displays the workgroup, name,

description and current temperature

of the DNS-323.

Printer Info

Displays information for a connected

USB printer.

Hard Drive

Info

Displays the hard drive information,

including the disk mode, total size,

used and remaining drive space.
