31D-Link DNS-323 User Manual
Section 3 - Configuration

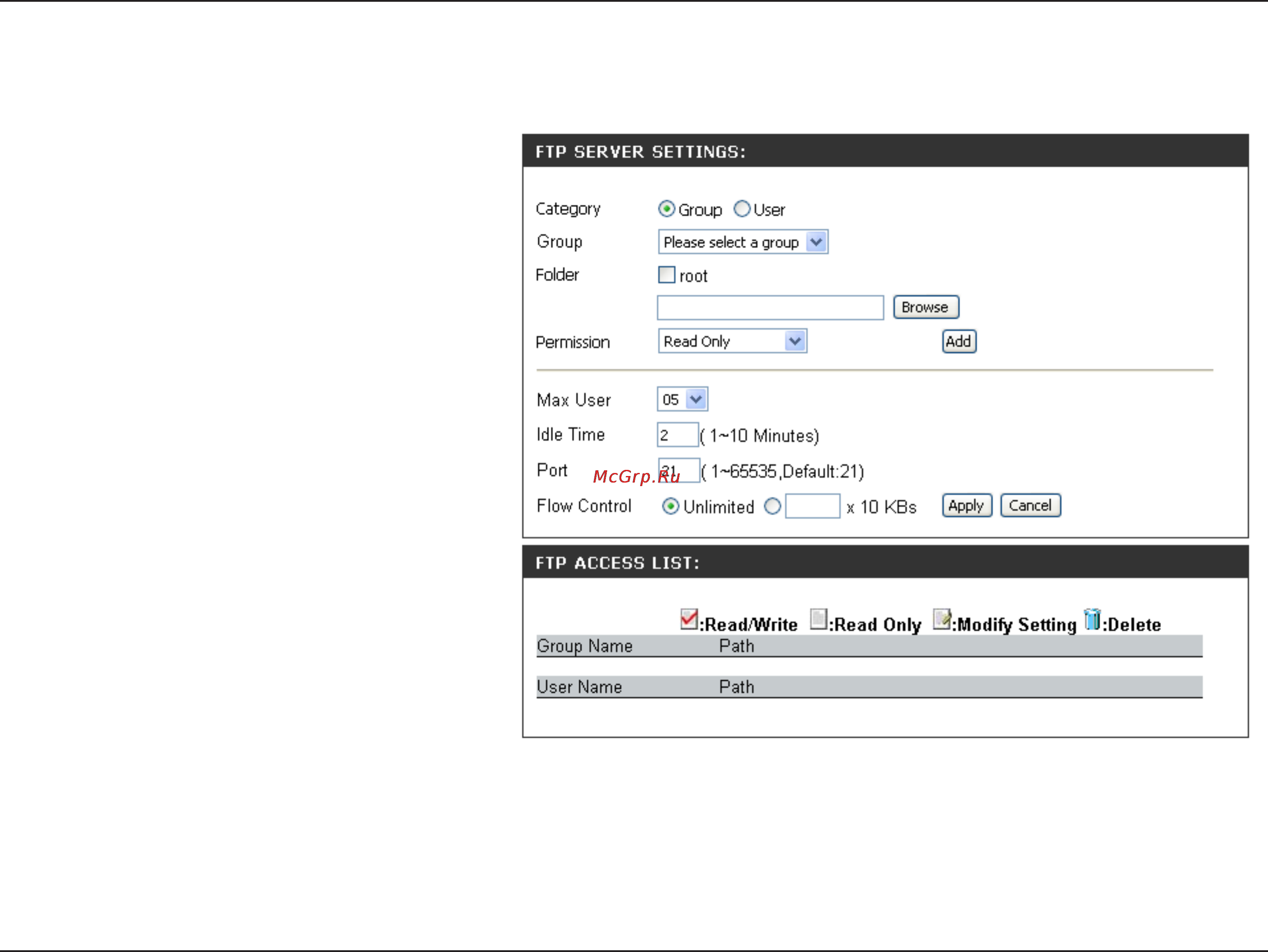

FTP Server Settings
Category
Max User
Determines whether the FTP
server rule will apply to a group or
individual user.
Group / User
Select the group or user the FTP
server rule will apply to.
Folder
Browse to and select the folder
or directory you are granting FTP
access to. Select root to grant
access to all volumes.
Permission
Set the user or group permission to
Read Only or Read/Write.
Add
Click Add to add the user or group
FTP rule.
Sets the maximum amount of
users that can connect to the FTP
server.
Idle Time
Sets the amount of time a user
can remain idle before being
disconnected.
Port
Sets the FTP port. Default is 21.
Flow Control
Allows you to limit the amount of
bandwidth available for each user.
FTP Access
List
Lists all defined FTP Rules.
