25D-Link DNS-323 User Manual

Section 3 - Conﬁguration

Groups

Create A

Group

Groups List

The DNS-323 supports up to 10 unique groups. Users can be assigned to Groups for ease of management, and to aid

in organization when setting up access rules and quotas.

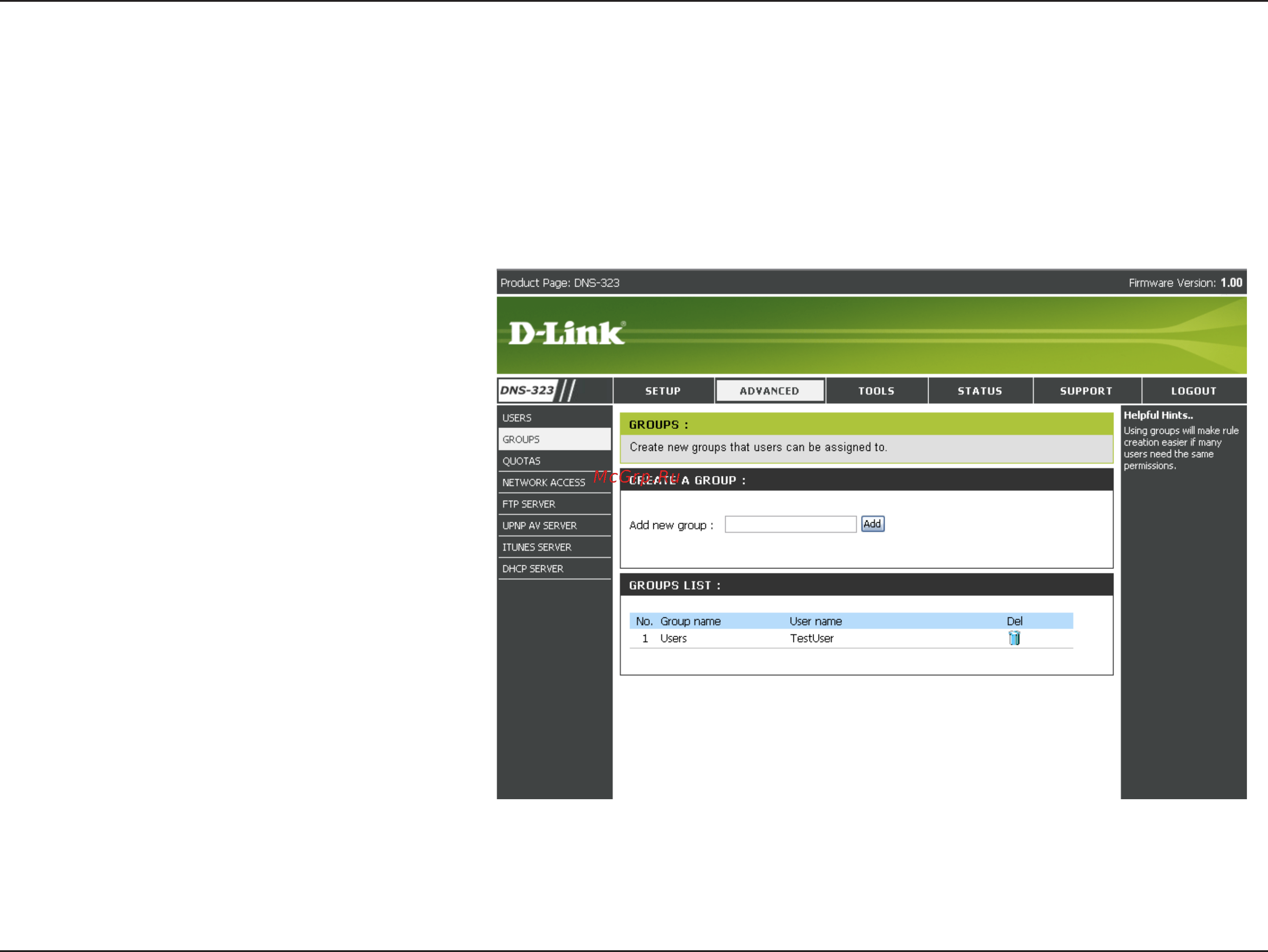

Create a new Group by assigning

a unique group name.

All created groups are displayed

here.
