43D-Link DNS-323 User Manual
Section 3 - Configuration

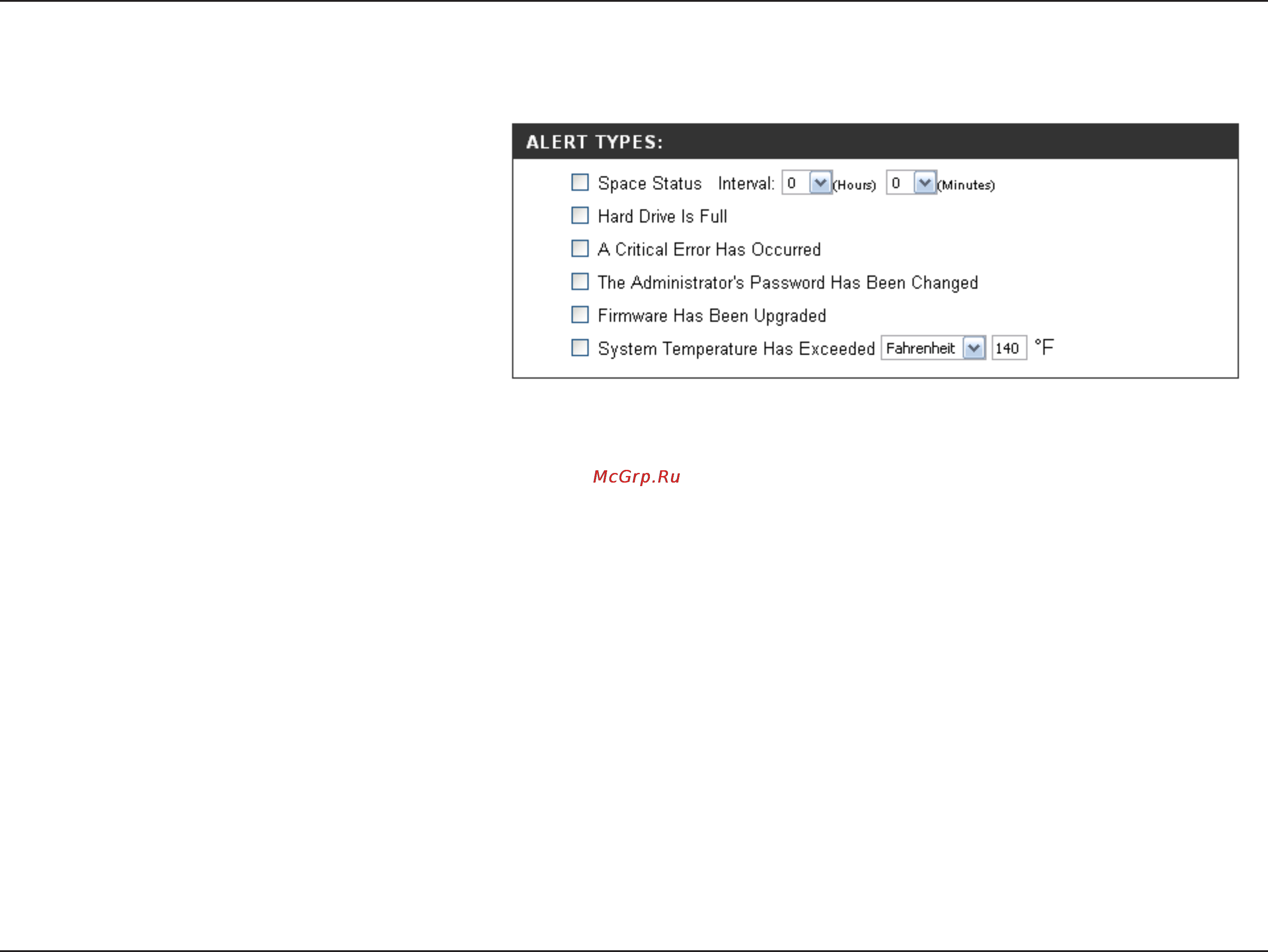

E-Mail Alert Types
Space Status
Hard Drive is
Full
Select an interval in hours and
minutes to have a status of space
remaining on the drives e-mailed.
An alert will be sent when the hard
drive is full.
Critical Error
An alert will be sent if a critical error
occurs on one of the drives.
Administrator
Password
Change
An alert will be sent if the admin
password is changed.
Firmware
Upgraded
An alert will be sent if the firmware
is upgraded.
System
Temperature
Exceeded
An alert will be sent if the DNS-323
device temperature exceeds the set
threshold.
