D-Link DNS-323 [23/70] Device settings

23D-Link DNS-323 User Manual

Section 3 - Conﬁguration

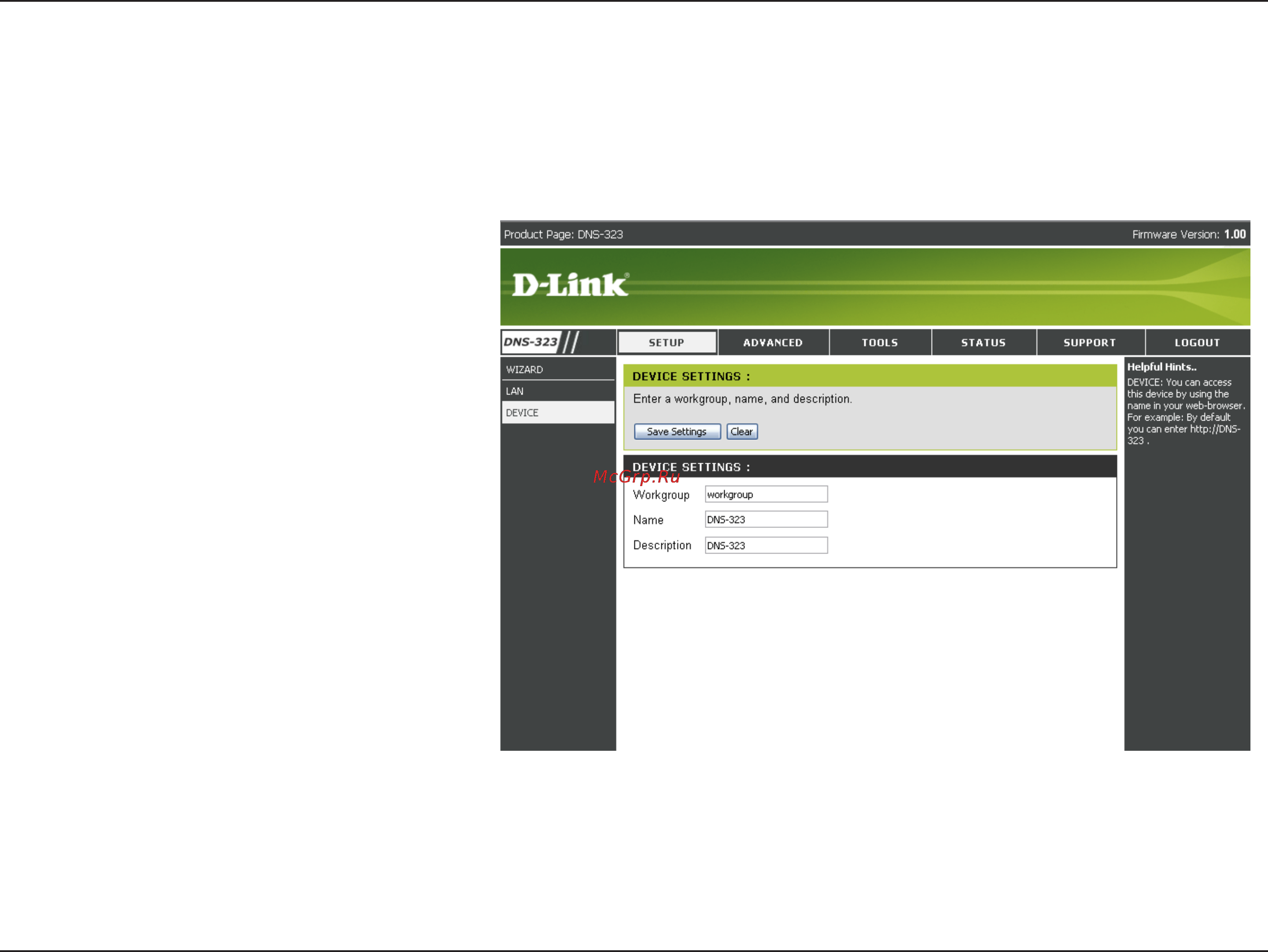

Device Settings

The device settings page allows you to assign a workgroup, name and description to the DNS-323.

Workgroup

Name

Description

Assigns a workgroup name to the

DNS-323.

Assigns a name to the DNS-323.

The name can be used to access

the device from a web browser

instead of the IP address, for

example, http://DNS-323.

Assigns a unique device description

to the DNS-323.
