29D-Link DNS-323 User Manual
Section 3 - Configuration
Network Access
Network
Access
Settings
Category
Group / User

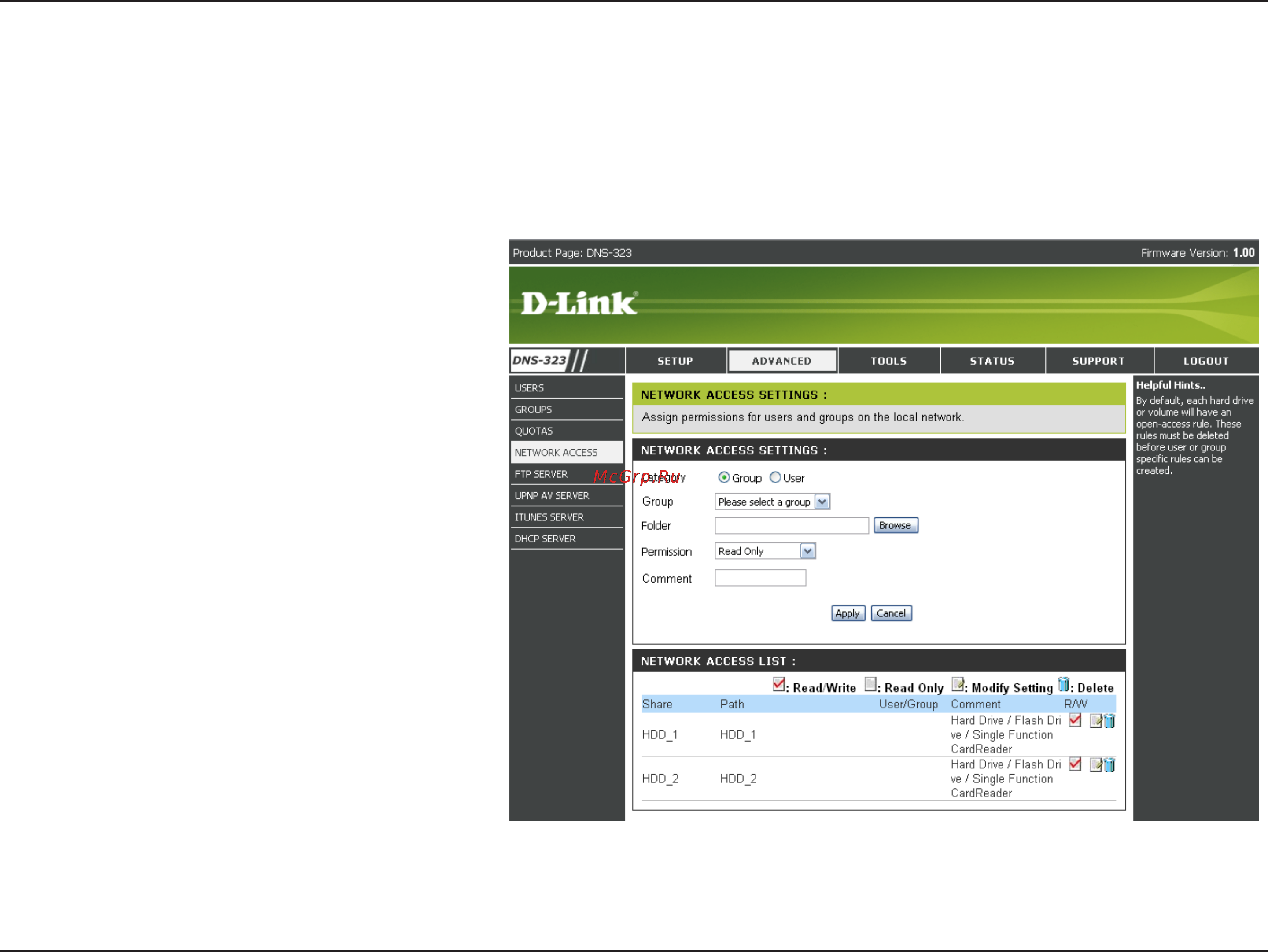

The Network Access settings allow you to assign users and groups to specific folders or volumes. By default, all users
are allowed Read/Write access to all volumes. Before specific user or group rules can be created, the default rules
must be deleted.
Assign permissions for users and
groups on the local network here.
Determines whether the access rule
will apply to a group or individual
user.
Select the group or user the access
rule will apply to.
Folder
Browse to and select the folder or
directory you are controlling access
to.
Permission
Set the user or group permission to
Read Only or Read/Write.
Comment
Enter a comment for reference or
description of the rule.
Network
Access List
Lists all defined access rules.
