37D-Link DNS-323 User Manual
Section 3 - Configuration
Admin
User Name
Password
New Password
Confirm
Password
Tools

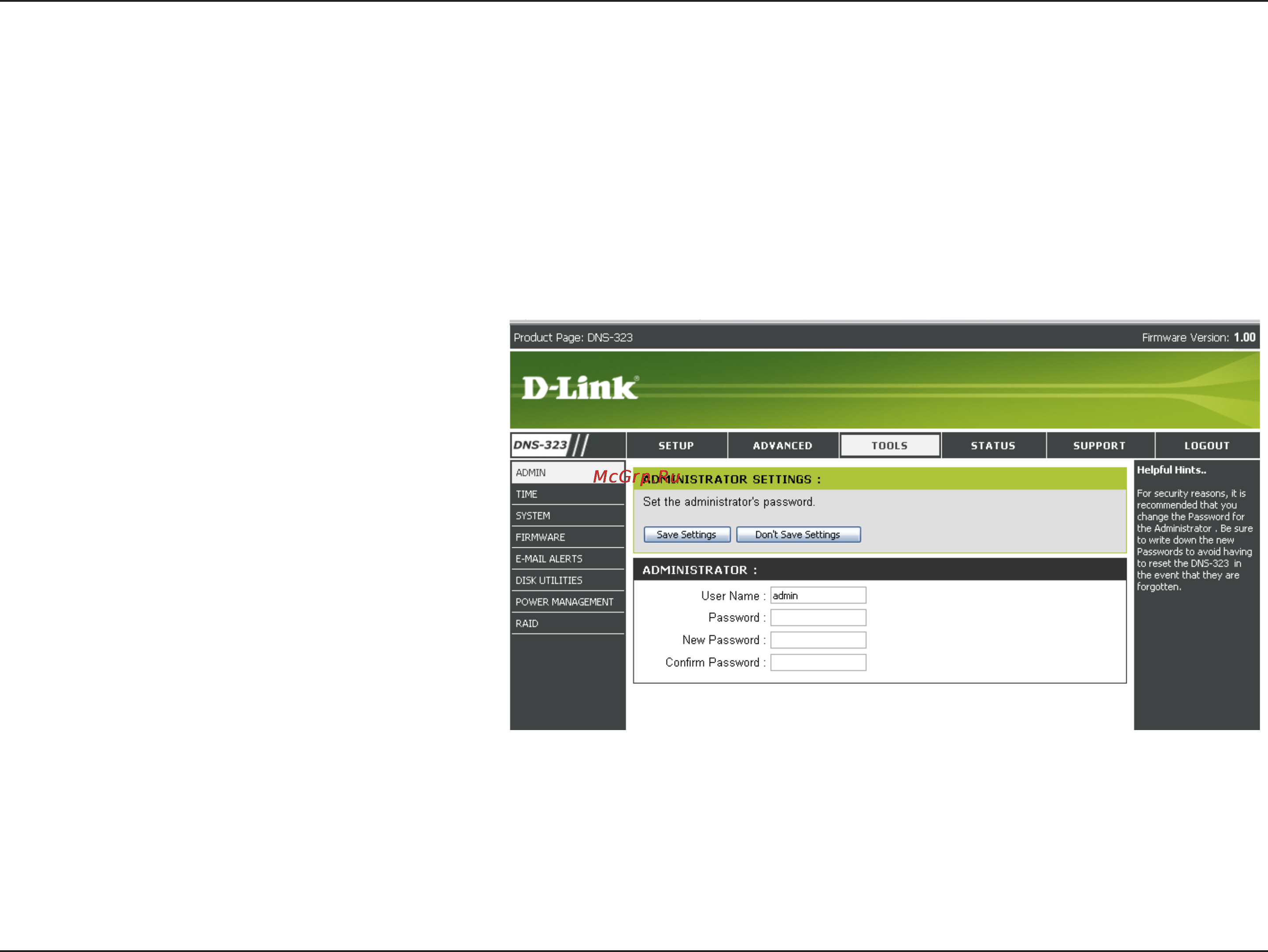

The Admin menu allows you to set a password for the admin account. It is recommended to set an admin account
password when first configuring the DNS-323.
The administrator user name
is admin, and this cannot be
changed.
Enter the current password.
Enter the new password.
Enter the new password again for
confirmation.
Click Save Settings to save the new password.
