46D-Link DNS-323 User Manual
Section 3 - Configuration
RAID
RAID Settings
The DNS-323 supports four different disk configuration types: Standard, where each drive is a unique volume, JBOD,
which combines both drives in a linear fashion to create one volume, as well as RAID 0 and RAID 1.

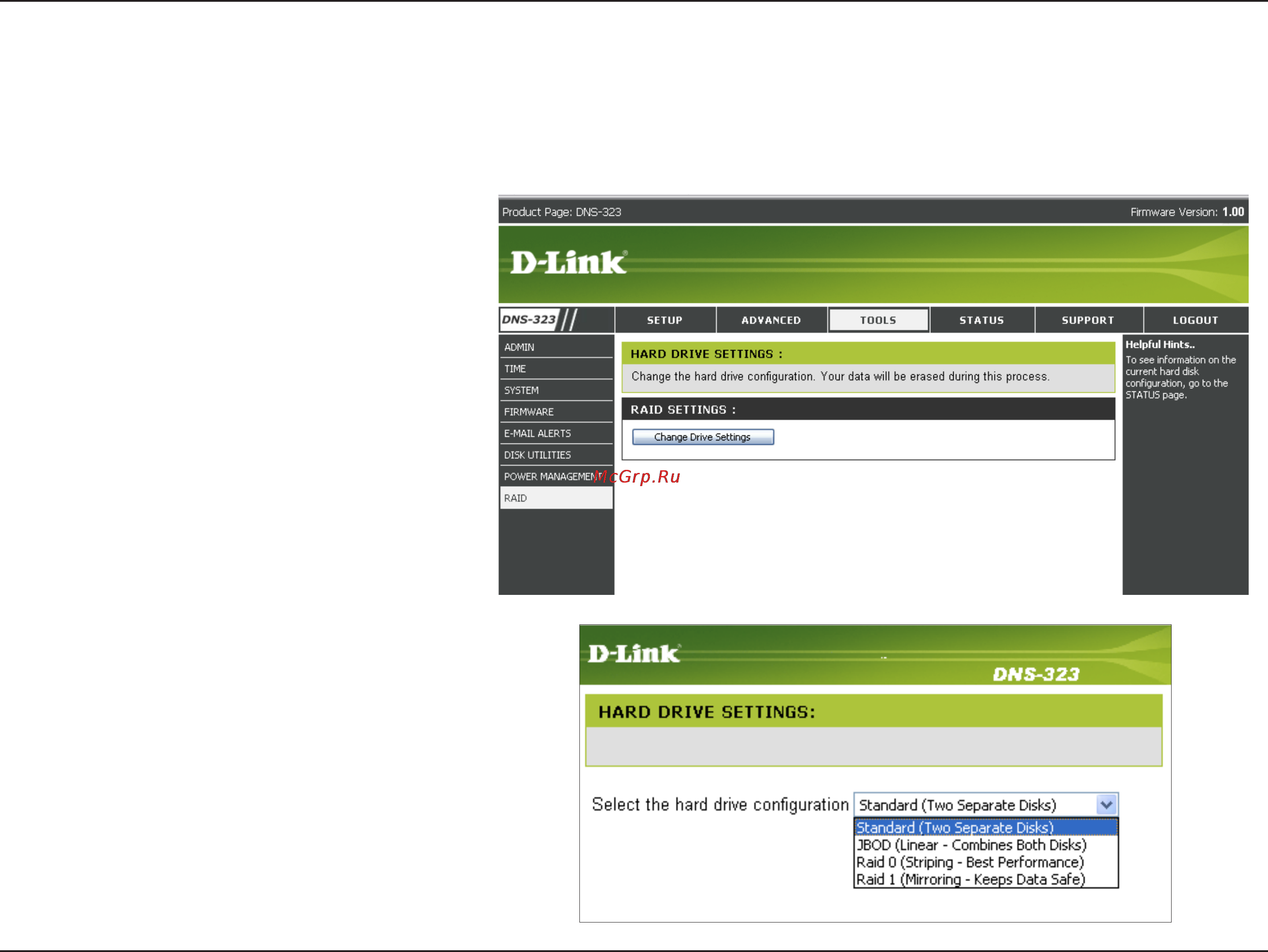

Click Change Drive Settings
to change the current drive
configuration.
All data will be lost when changing
the drive configuration.
A pop-up window will appear with the drive
configuration options:
