Gigabyte X299-WU8 (rev. 1.0) [104/136] 2 5 easy raid

Unique Features

- 104 -

5-2-5 Easy RAID

TheGIGABYTEEasyRAID

(Note)

utility includes the following 'EZ' setups applications that will offer greatly

simpliedinstallandcongurationprocedures:DiskModeSwitchandXHD.

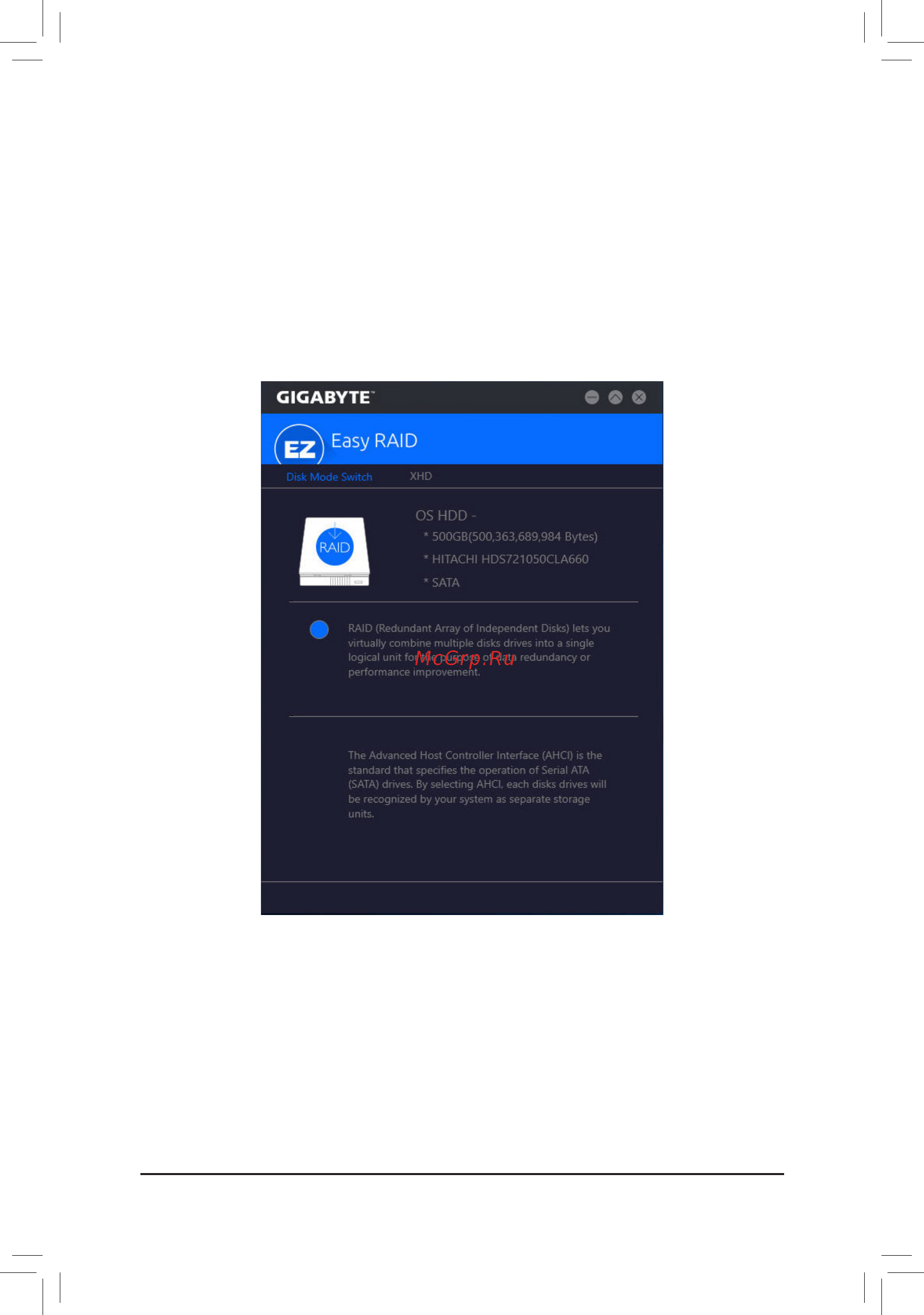

Disk Mode Switch

DiskModeSwitchallowsyoutochangetheSATAcontrollerdiskmodefromAHCItoRAIDmodeevenafterthe

hard drive has been installed with an operating system. After switching the operating mode, please restart your

computer and make sure the Intel

RapidStorageTechnologyutilitycanworkproperly.

(Note) ThisfeatureissupportedonlyinUEFImode.
