- 71 -
Conguring a RAID Set
C-2.UEFIRAIDConguration
Step 1:
In BIOS Setup, go to BIOS and set CSM Support to Disabled(Figure6).SavethechangesandexitBIOSSetup.
Step 2:
After the system reboot, enter BIOS Setup again. Then enter the Peripherals\Intel(R) Rapid Storage Technology
sub-menu(Figure7).

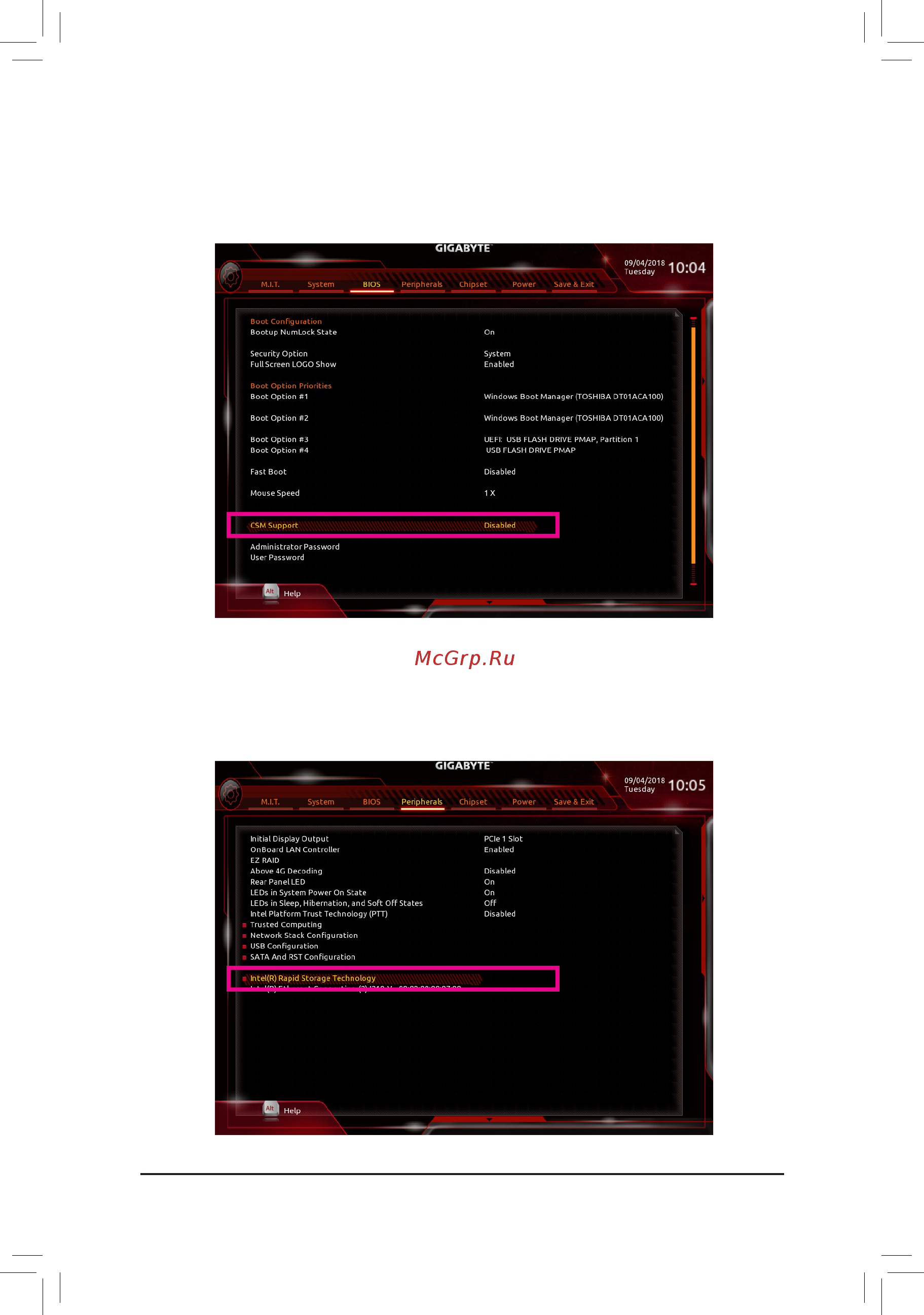

Figure 6
Figure 7
