Gigabyte X299-WU8 (rev. 1.0) [43/136] 3 m i t

BIOS Setup

- 43 -

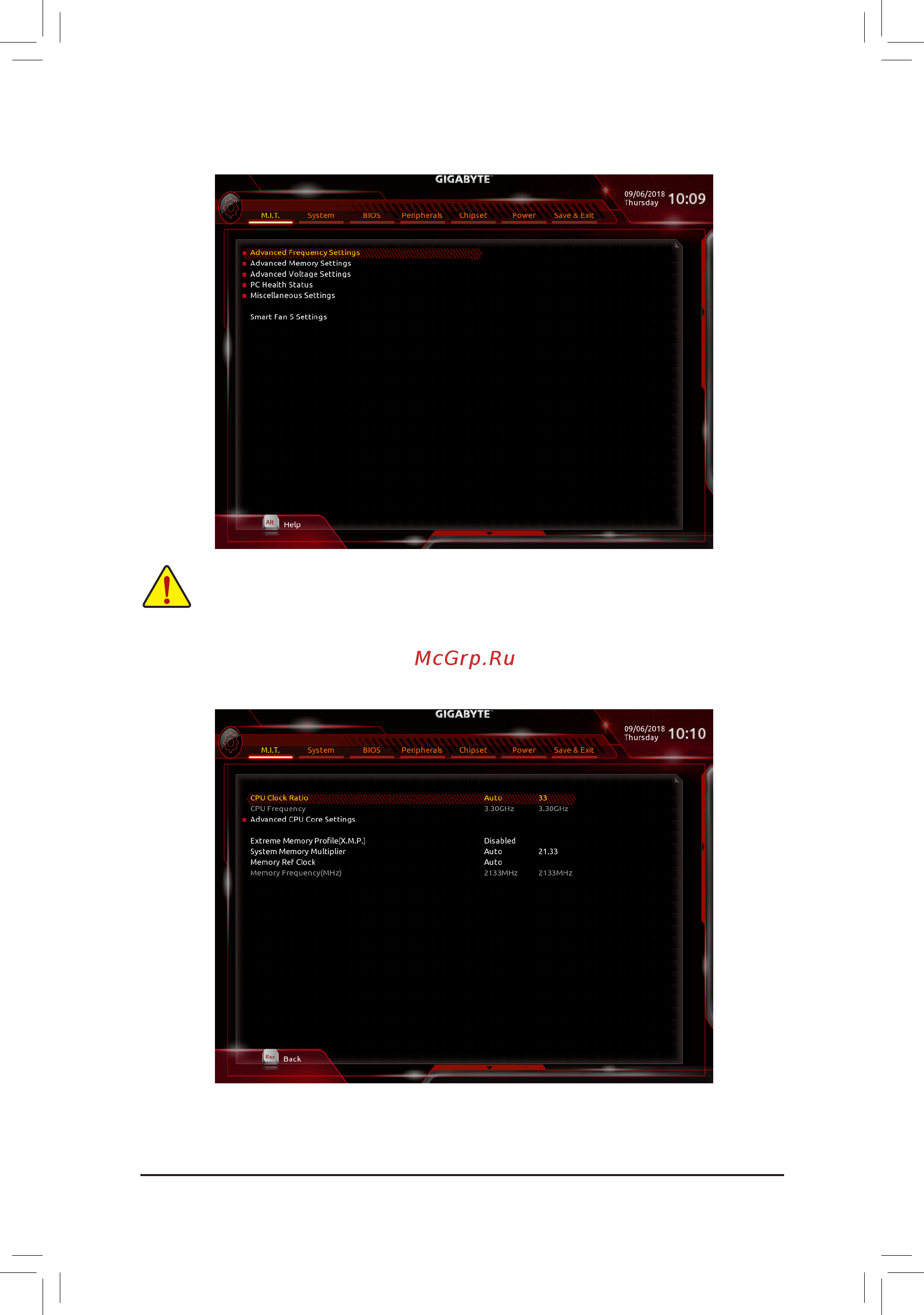

2-3 M.I.T.

Whether the system will work stably with the overclock/overvoltage settings you made is dependent

onyouroverallsystemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamage

to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced

users only and we recommend you not to alter the default settings to prevent system instability or

otherunexpectedresults.(Inadequatelyalteringthesettingsmayresultinsystem'sfailuretoboot.If

thisoccurs,cleartheCMOSvaluesandresettheboardtodefaultvalues.)

` Advanced Frequency Settings

& CPU Clock Ratio

Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU

being installed.
