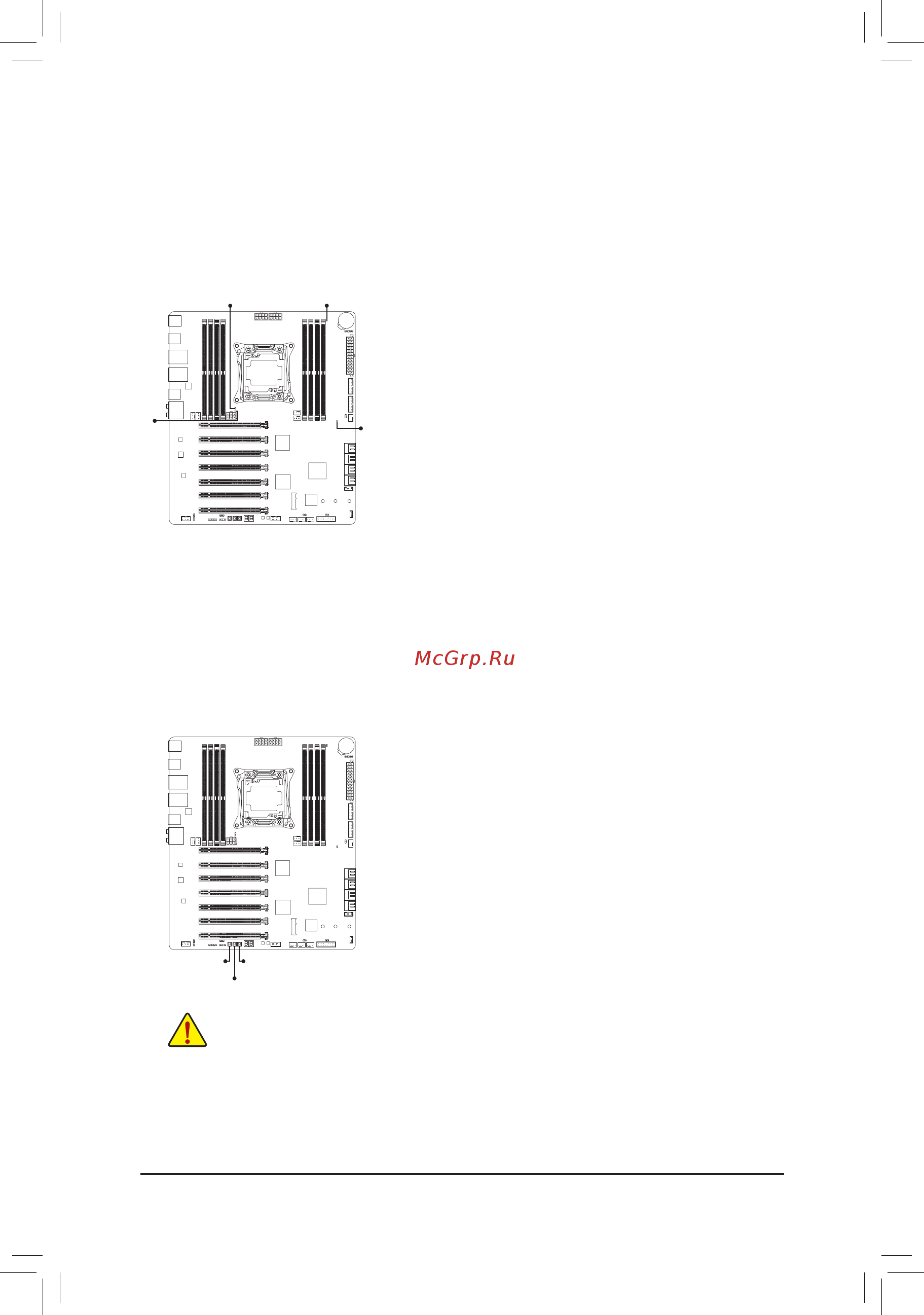

1-8 Onboard LEDs and Buttons

Status LEDs

The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly

aftersystempower-on.IftheCPU/DRAM/VGALEDison,thatmeansthecorrespondingdeviceisnotworking

normally; if the BOOT LED is on, that means you haven't entered the operating system yet.

CPU: CPU status LED

DRAM: Memory status LED

VGA: Graphics card status LED

BOOT: Operating system status LED

BOOT

VGA

CPU

Quick Button

This motherboard has 3 quick buttons: power button, reset button and clear CMOS button. The power button

and reset button allow users to quickly turn on/off or reset the computer in an open-case environment when

they want to change hardware components or conduct hardware testing.

Use this button to clear the BIOS

congurationandresettheCMOSvaluestofactorydefaultswhenneeded.

PW_SW: Power Button

RST_SW: ResetButton

CMOS_SW: Clear CMOS Button

• Always turn off your computer and unplug the power cord from the power outlet before using

the clear CMOS button.

• Do not use the clear CMOS button when the system is on, or the system may shutdown and

data loss or damage may occur.

• Aftersystemrestart,gotoBIOSSetuptoloadfactorydefaults(selectLoadOptimizedDefaults)or

manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).

CMOS_SW

PW_SW

RST_SW

DRAM
