Gigabyte X299-WU8 (rev. 1.0) [62/136] 7 chipset

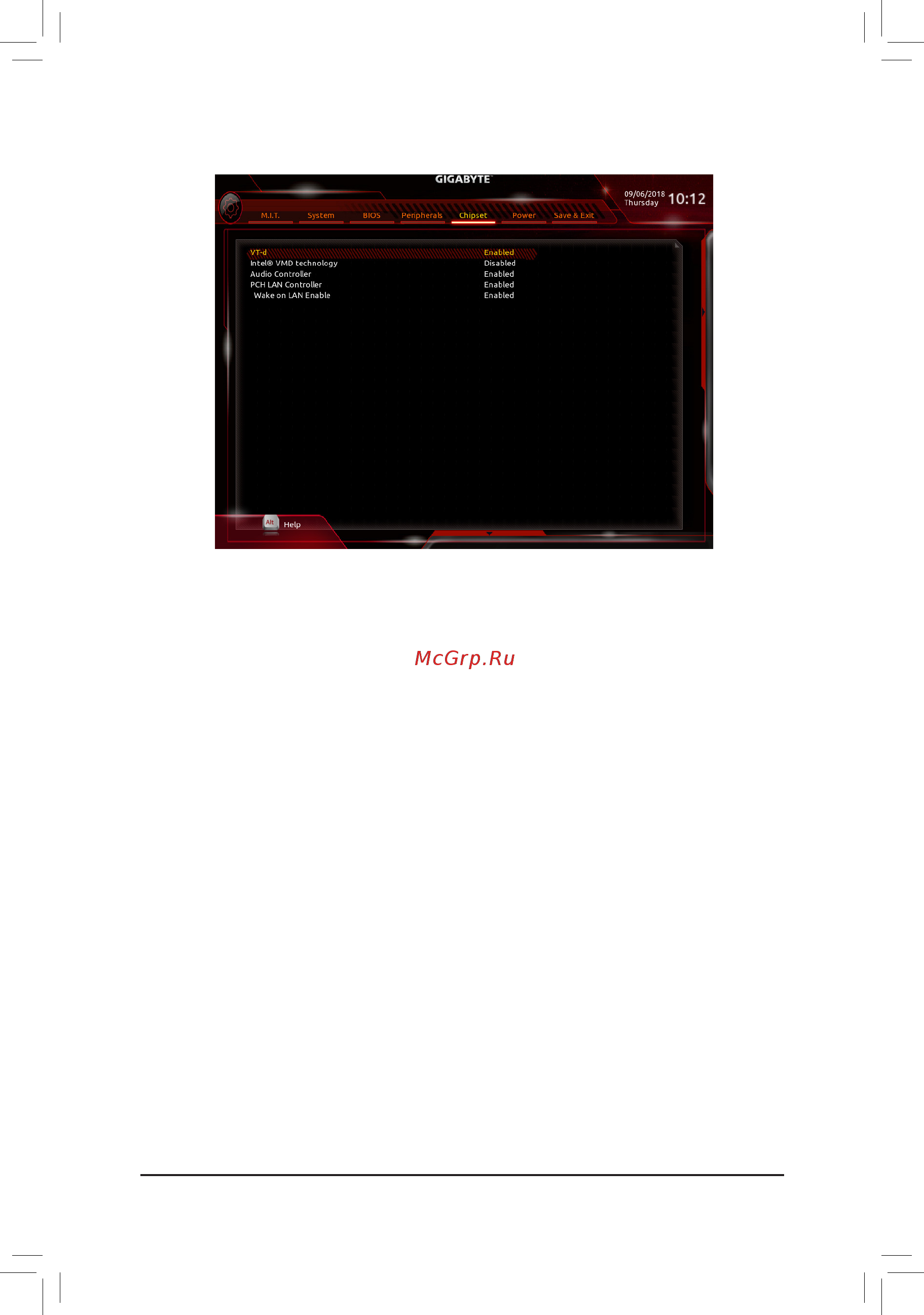

BIOS Setup

- 62 -

& VT-d

Enables or disables Intel

VirtualizationTechnologyforDirectedI/O.(Default:Enabled)

& Intel® VMD technology

Enables or disables Intel

VolumeManagementDevice(Intel

VMD)technology.(Default:Disabled)

& Audio Controller

 Enablesordisablestheonboardaudiofunction.(Default:Enabled)

If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to

Disabled.

& PCH LAN Controller (LAN1)

 EnablesordisablestheonboardLANfunction.(Default:Enabled)

If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to

Disabled.

& Wake on LAN Enable

 EnablesordisablesthewakeonLANfunction.(Default:Enabled)

2-7 Chipset
