Conguring a RAID Set
- 84 -
3-3 Installing an Intel
®
Optane
™
Memory
A. System Requirements
1. Intel
®
Optane
™
memory
2. The Optane
™
memory must have at least 16 GB capacity, and it must have equal or smaller capacity than
the hard drive/SSD to be accelerated.
3. The Optane
™
memorycannotbeusedtoaccelerateanexistingRAIDarray;theacceleratedharddrive/SSD
cannotbeincludedinaRAIDarray.
4. Theharddrive/SSDtobeacceleratedmustbeaSATAharddriveandmusthaveWindows1064-bit(orlater
version)installedonit.(MustbeformattedforGPTpartition.)
5. The motherboard driver disk
B. Installation Guidelines
B-1: Installation in AHCI mode
IftheSATAcontrollerhasbeenconguredinAHCImode,pleasefollowthestepsbelow:
(Note) IfthesystemalreadyhasIntel
®
RapidStorageTechnologyutilityinstalled,youhavetoremoveitrst
beforeinstallingtheIntel(R)Optane(TM)MemorySystemAccelerationapplication.

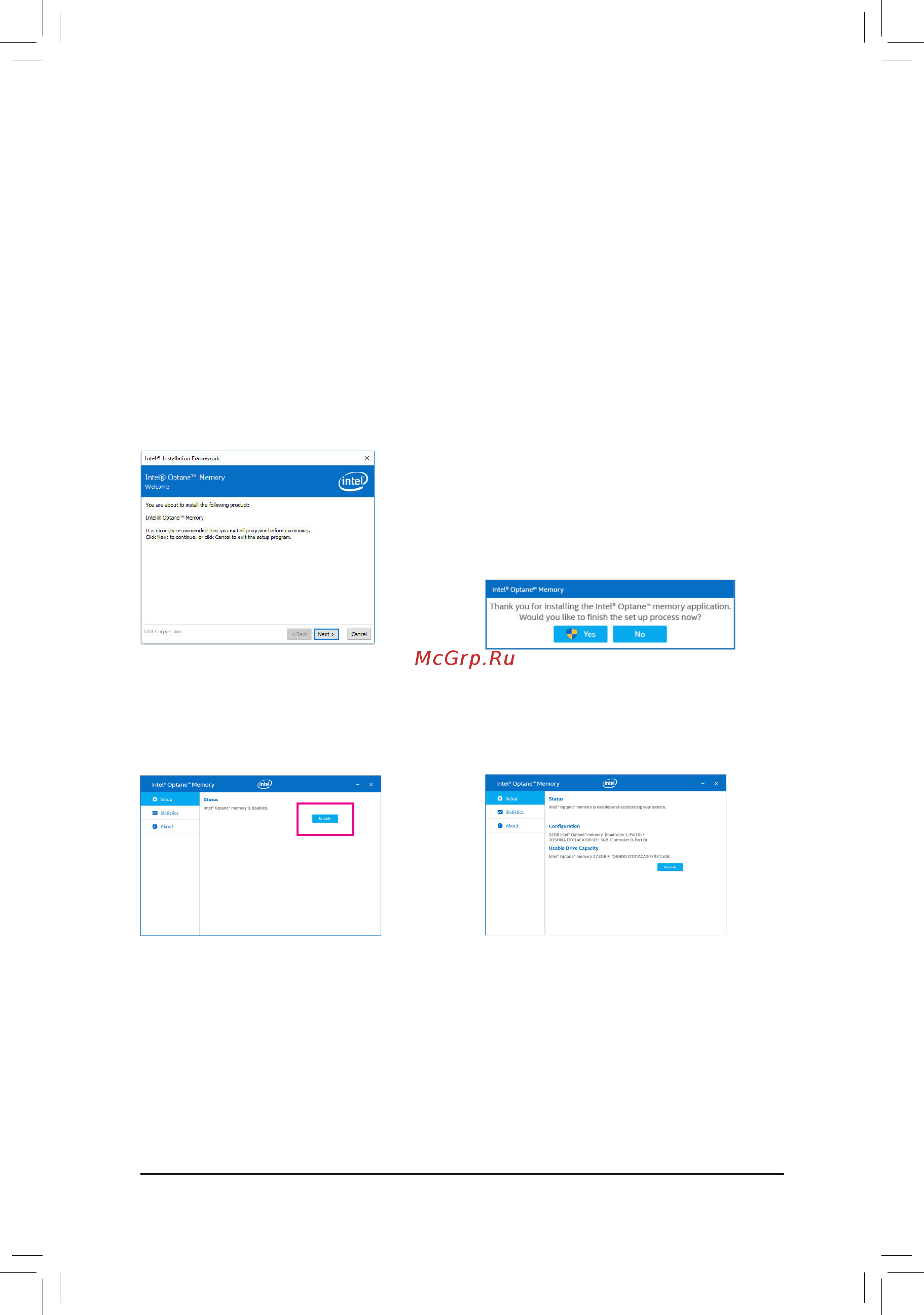

Step 1:
After entering the operating system, insert the motherboard
driver disk into your optical drive. On the Xpress Install
screen, select Intel(R) Optane(TM) Memory System
Acceleration
(Note)
to install. Follow the on-screen instructions
to continue.
When completed, restart the system.
Step 2:
After re-entering the operating system, the dialog box
as shown above will appear. Click Yes to continue the
installation and then restart the system.
Step 3:
LaunchtheIntel(R)OptaneMemoryapplication fromthe
Start menu. A message which says Intel
®
Optane
™
Memory
is disabled will appear on the main screen. Click Enable to
activate the Intel
®
Optane
™
Memory. All data on the Optane
™
memory will be erased. Make sure you back up the data
before continuing. Follow the on-screen instructions to
proceed. When completed, restart the system.
Step 4:
LaunchtheIntel(R)OptaneMemoryapplication fromthe
Start menu and make sure the Intel
®
Optane
™
Memory has
beenenabled.(TheSATAcontrollermodeischangedtoIntel
RSTPremiumfromAHCImode.DONOTchangeyourSATA
controller mode back to AHCI. Doing so will prevent Intel
®
Optane
™
memory from functioning properly.
