Gigabyte X299-WU8 (rev. 1.0) [34/136] F_audio front panel audio header

- 34 -

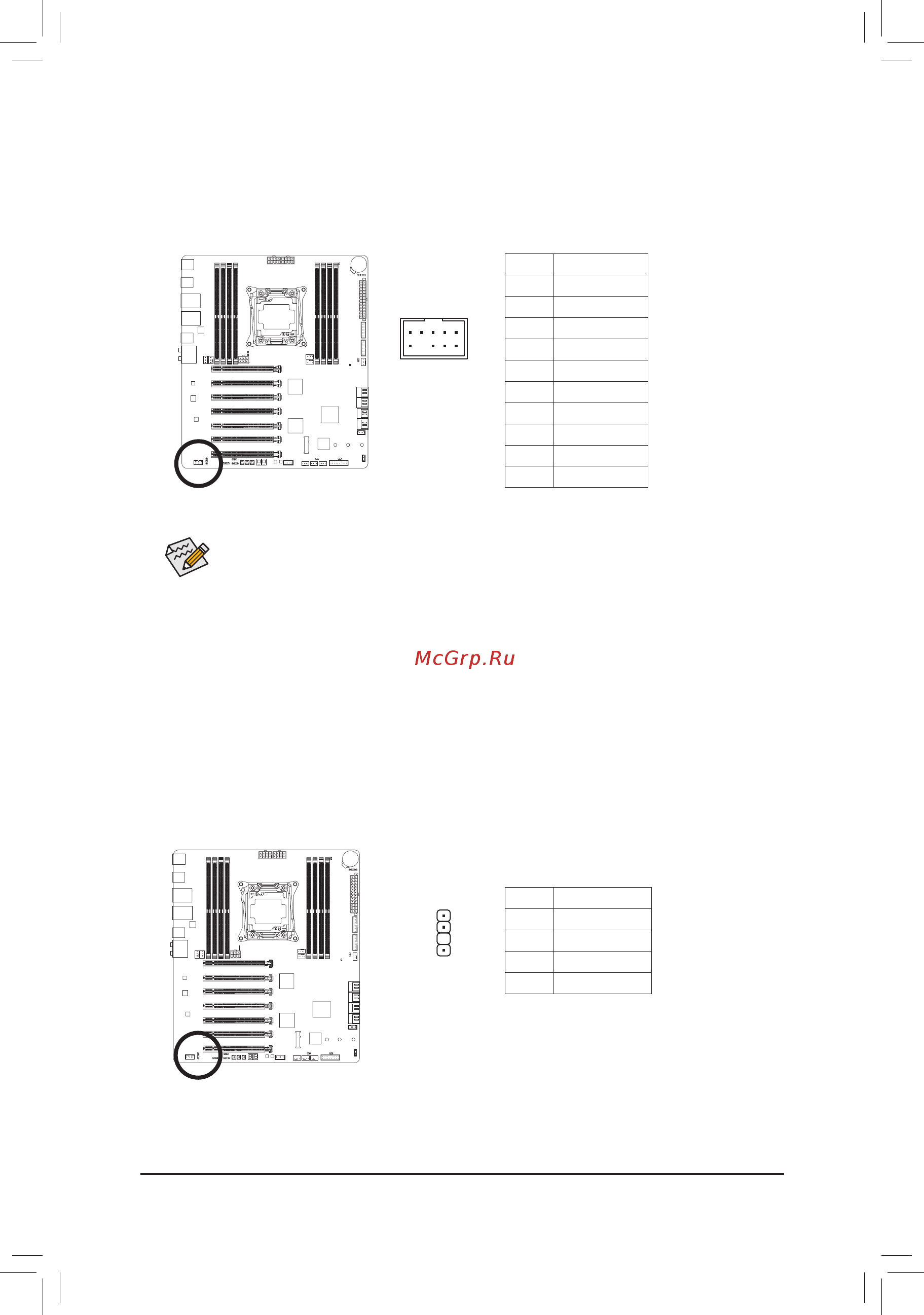

16) F_AUDIO (Front Panel Audio Header)

 ThefrontpanelaudioheadersupportsHighDenitionaudio(HD).Youmayconnectyourchassisfront

panel audio module to this header. Make sure the wire assignments of the module connector match the

pin assignments of the motherboard header. Incorrect connection between the module connector and the

motherboard header will make the device unable to work or even damage it.

Pin No. Denition

7 FAUDIO_JD

8 No Pin

9 LINE2_L

10 Sense

17) SPDIF_O (S/PDIF Out Header)

 ThisheadersupportsdigitalS/PDIFOutandconnectsaS/PDIFdigitalaudiocable(providedbyexpansion

cards)fordigitalaudiooutputfromyourmotherboardtocertainexpansioncardslikegraphicscardsand

sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for

digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display

to the graphics card and have digital audio output from the HDMI display at the same time.

For information about connecting the S/PDIF digital audio cable, carefully read the manual for your expansion

card.

3 SPDIFO

4 GND
