Gigabyte X299-WU8 (rev. 1.0) [52/136] Cpu vcore cpu vrin cpu vccsa cpu vccio dram channel a b voltage dram
![Gigabyte X299-WU8 (rev. 1.0) [52/136] Cpu vcore cpu vrin cpu vccsa cpu vccio dram channel a b voltage dram](/views2/1679996/page52/bg34.png)
BIOS Setup
- 52 -

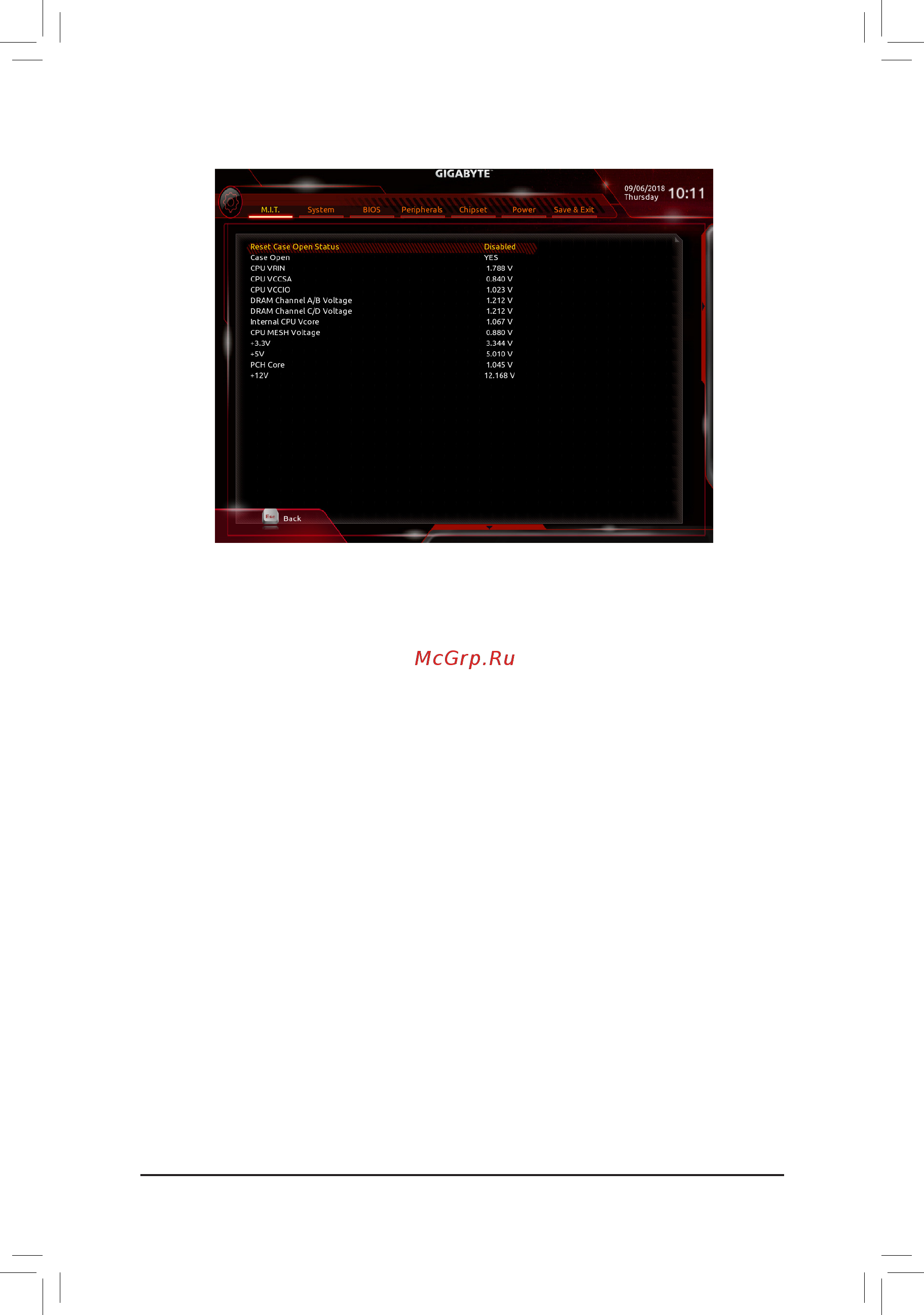

` PC Health Status
& Reset Case Open Status
Disabled Keepsorclearstherecordofpreviouschassisintrusionstatus.(Default)
Enabled Clears the record of previous chassis intrusion status and the Case Openeldwillshow
"No" at next boot.
& Case Open
Displays the detection status of the chassis intrusion detection device attached to the motherboard CI
header.Ifthesystemchassiscoverisremoved,thiseldwillshow"Yes",otherwiseitwillshow"No".To
clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to
the CMOS, and then restart your system.
& CPU Vcore/CPU VRIN/CPU VCCSA/CPU VCCIO/DRAM Channel A/B Voltage/DRAM
Channel C/D Voltage/Internal CPU Vcore/CPU MESH Voltage/+3.3V/+5V/PCH Core/+12V
Displays the current system voltages.
