- 83 -

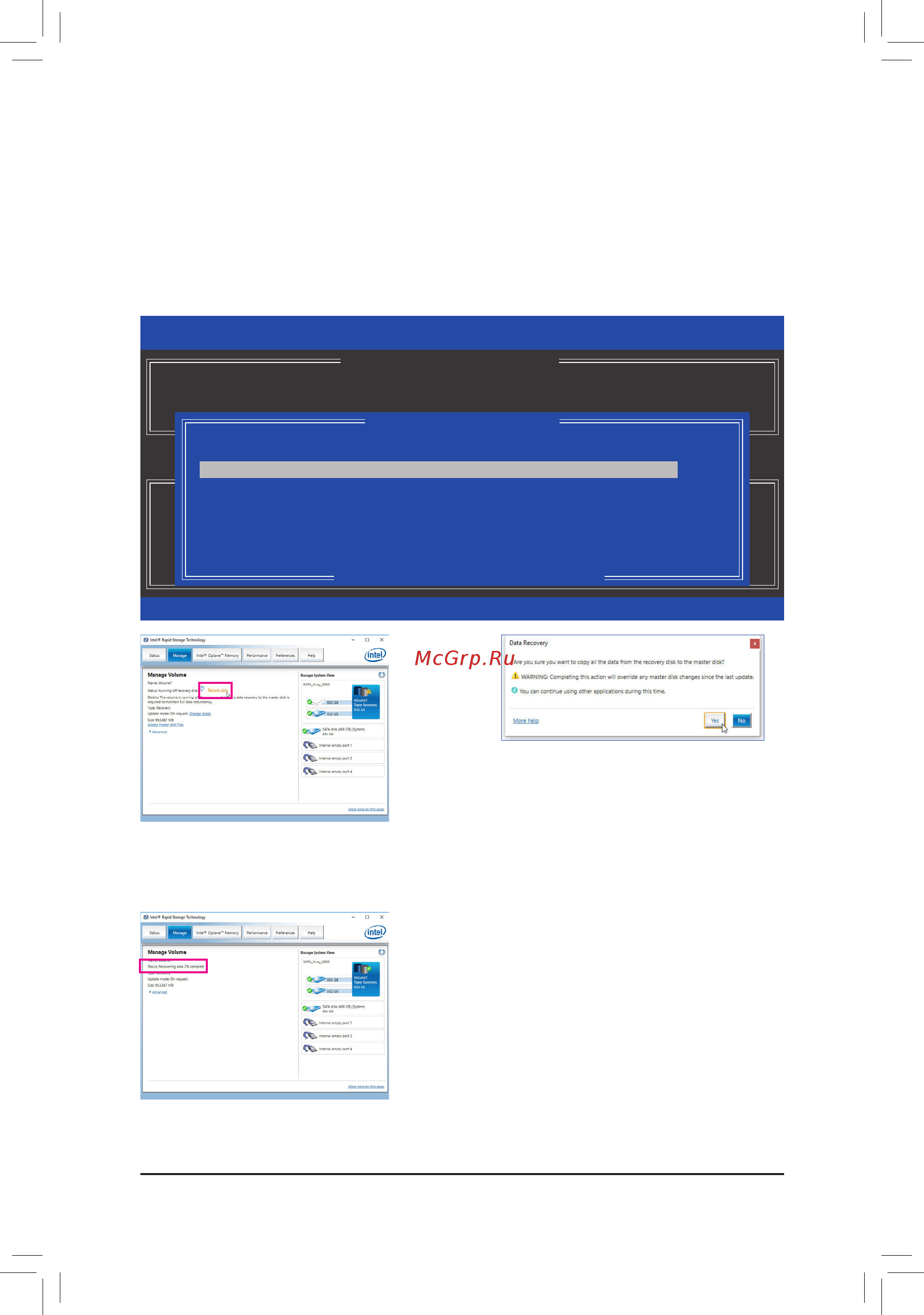

Conguring a RAID Set
• Restoring the Master Drive to a Previous State (for Recovery Volume only)
WhentwoharddrivesaresettoRecoveryVolumeinUpdateonRequestmode,youcanrestorethemaster
drive data to the last backup state when needed. For example, in case the master drive detects a virus, you
can restore the recovery drive data to the master drive.
Step 1:
Select 4. Recovery Volume Options in the MAIN MENU of the Intel
®
RAIDCongurationUtility.Onthe
RECOVERY VOLUMES OPTIONS menu, select Enable Only Recovery Disk to show the recovery drive in
theoperatingsystem.Followtheon-screeninstructionstocompleteandexittheRAIDCongurationUtility.
Intel(R) Rapid Storage Technology - Option ROM - 15.7.0.2925
Copyright (C) Intel Corporation. All Rights Reserved.
Choose the RAID level:
RAID0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
Recovery: Copies data between a master and a recovery disk.
RAID10: Mirrors data and stripes the mirror.
RAID5: Stripes data and parity.
[
hi
]-select [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
[ RECOVERY VOLUME OPTIONS ]
1. Enable Only Recovery Disk
2. Enable Only Master Disk
[ SELECT RECOVERY VOLUME ]
[
hi
]-Up/Down [SPACE]-Selects [ENTER]-Done
Name Level Capacity Status Bootable
`
Volume0 Recovery(OnReq) 465.7GB NeedsUpdate Yes
Select a Recovery volume to do the operation.
Step 2:
Go to the Manage menu of the Intel
®
Rapid
Storage Technology utility and click Recover data
in Manage Volume.
The Status item on the left of the screen displays
the recovering status. After the recovery volume
is completed, the Status will display as Normal.
Step 3:
Click Yes to begin the data recovery.
