Gigabyte X299-WU8 (rev. 1.0) [7/136] X299 wu8 motherboard layout

- 7 -

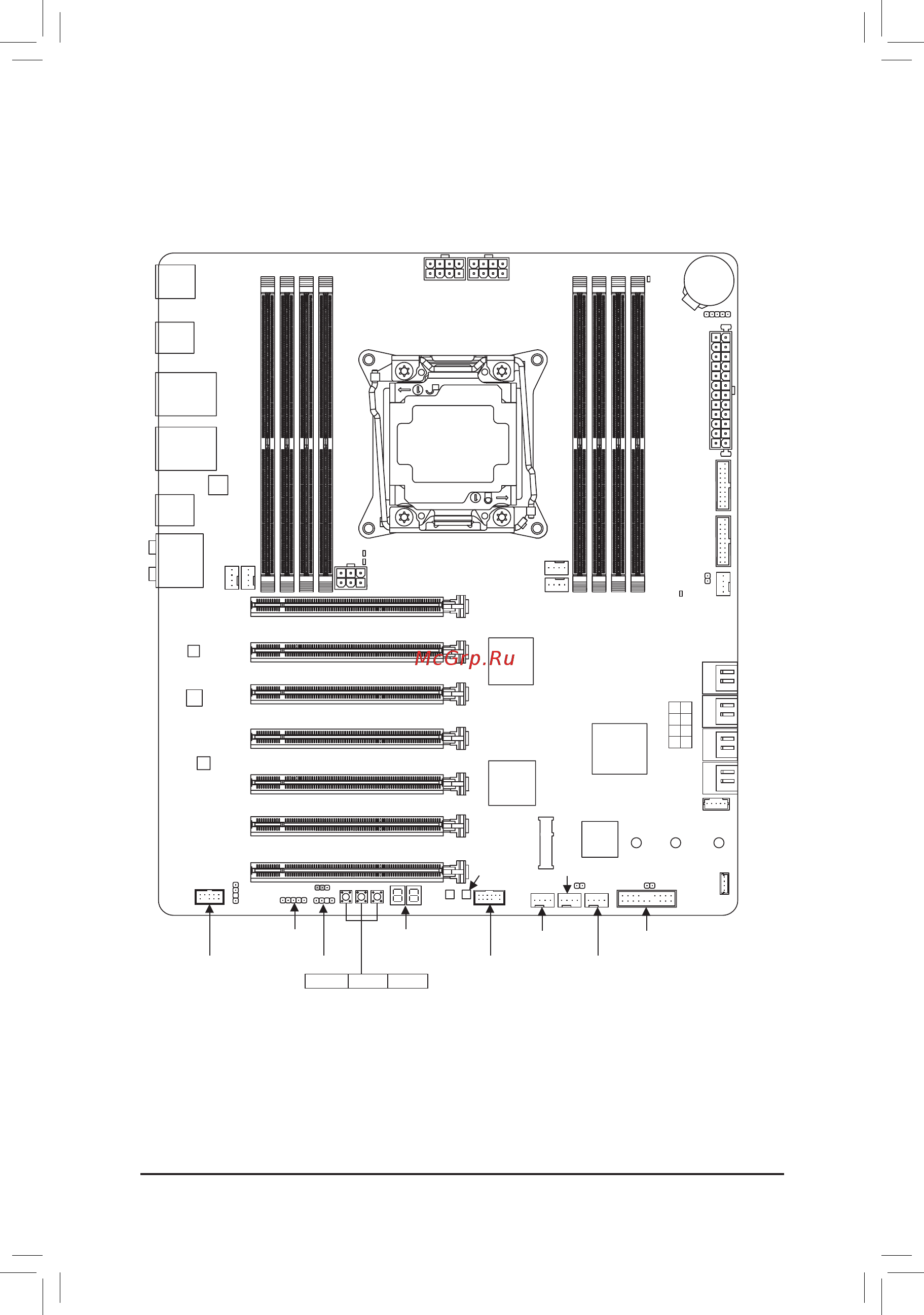

X299-WU8 Motherboard Layout

(Note) Fordebugcodeinformation,pleaserefertoChapter6.

KB_MS_USB

ATX_12V_2X4_1

ATX

AUDIO

F_PANEL

Intel

X299

SYS_FAN1

TYPEC_USB31

PCIEX16_1

HPWR_FAN_

PUMP

iTE

Super I/O

Debug LED

(Note)

Intel

GbE LAN

7 5 3 1

6 4 2 0

F_USB30_2

R_USB30

PCIEX8_1

SYS_FAN5_PUMP

CODEC

42 60 80

EC_TEMP2

SYS_FAN3TPM

SPDIF_O

ASMedia

USB 3.1 Gen 2 Hub

ATX_12V_2X4_2

LED_C2

LGA2066

F_USB30_1

M2P

USB30_LAN2

VGA_PW

DLED_V_SW

Intel

GbE LAN

SATA3

X299-WU8

BAT

EC_TMEP1

THB_C

VROC

CLR_CMOS

CMOS_SW

RST_SW PW_SW

SYS_FAN4

D_LED

LED_C1

F_AUDIO

M_BIOS

B_BIOS

SYS_FAN2

USB30_LAN1

CPU_FAN

CPU_OPT

PCIEX16_2

PCIEX8_2

PCIEX16_3

PCIEX8_3

PCIEX16_4

PLX8747

VGA

CPU

BOOT

DRAM

DDR4_1_1B

DDR4_3_2B

DDR4_2_1A

DDR4_4_2A

DDR4_4_2C

DDR4_2_1C

DDR4_3_2D

DDR4_1_1D
