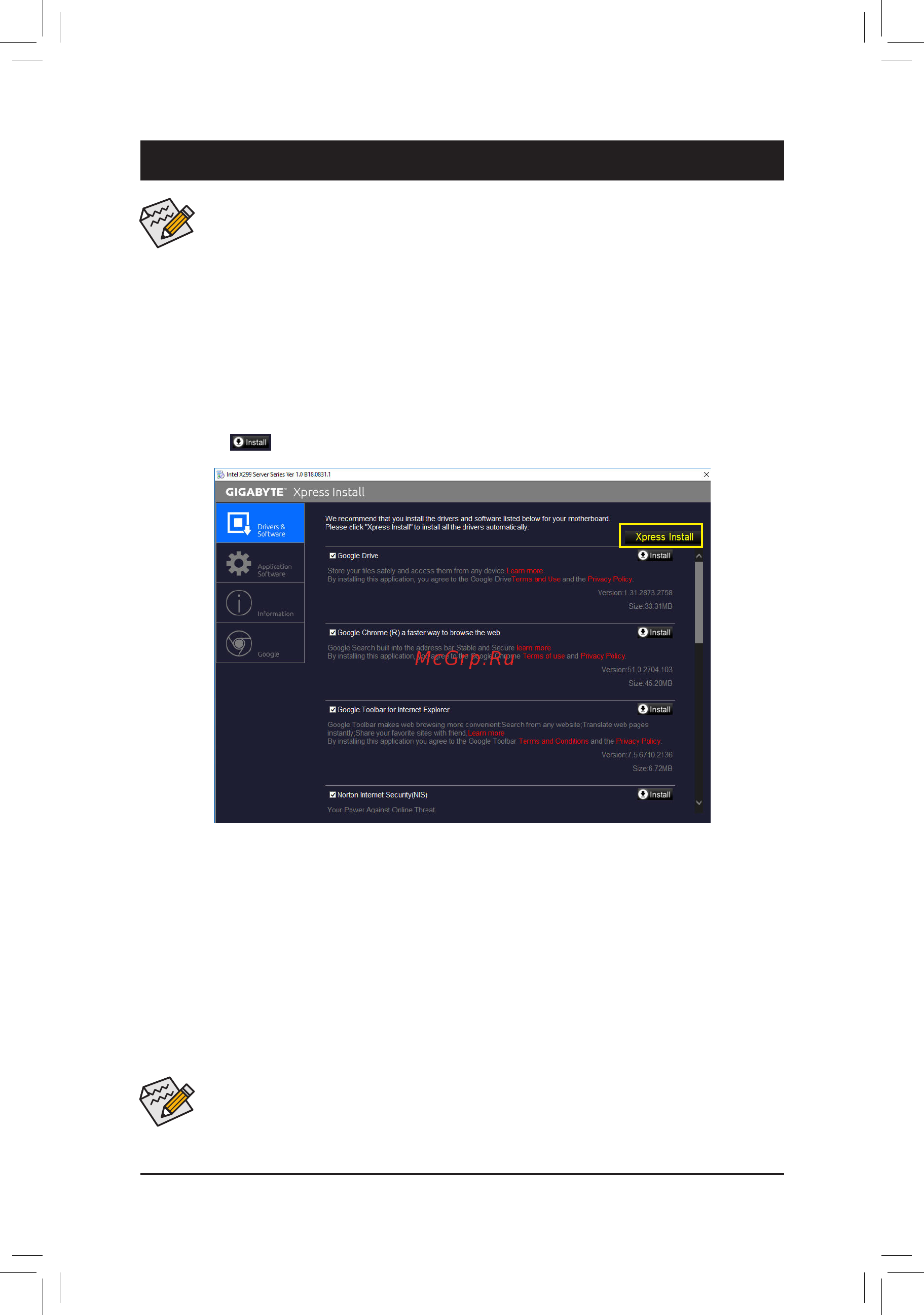

- 89 -
Drivers Installation
4-1 Drivers & Software
Chapter 4 Drivers Installation
• Beforeinstallingthedrivers,rstinstalltheoperatingsystem.
• After installing the operating system, insert the motherboard driver disk into your optical drive.
Click on the message "Tap to choose what happens with this disc" on the top-right corner of the
screenandselect"RunRun.exe."(OrgotoMyComputer,double-clicktheopticaldriveandex-
ecutetheRun.exeprogram.)
• Pleaseignore thepopup dialogbox(es) (e.g.the Found New Hardware Wizard)displayed
when "Xpress Install" is installing the drivers. Failure to do so may affect the driver installation.
• Some device drivers will restart your system automatically during the driver installation. After the
system restart, "Xpress Install" will continue to install other drivers.
"Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to
install. You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or
click the arrow icon to individually install the drivers you need.
