Gigabyte X299-WU8 (rev. 1.0) [49/136] Cpu vcore protection

BIOS Setup

- 49 -

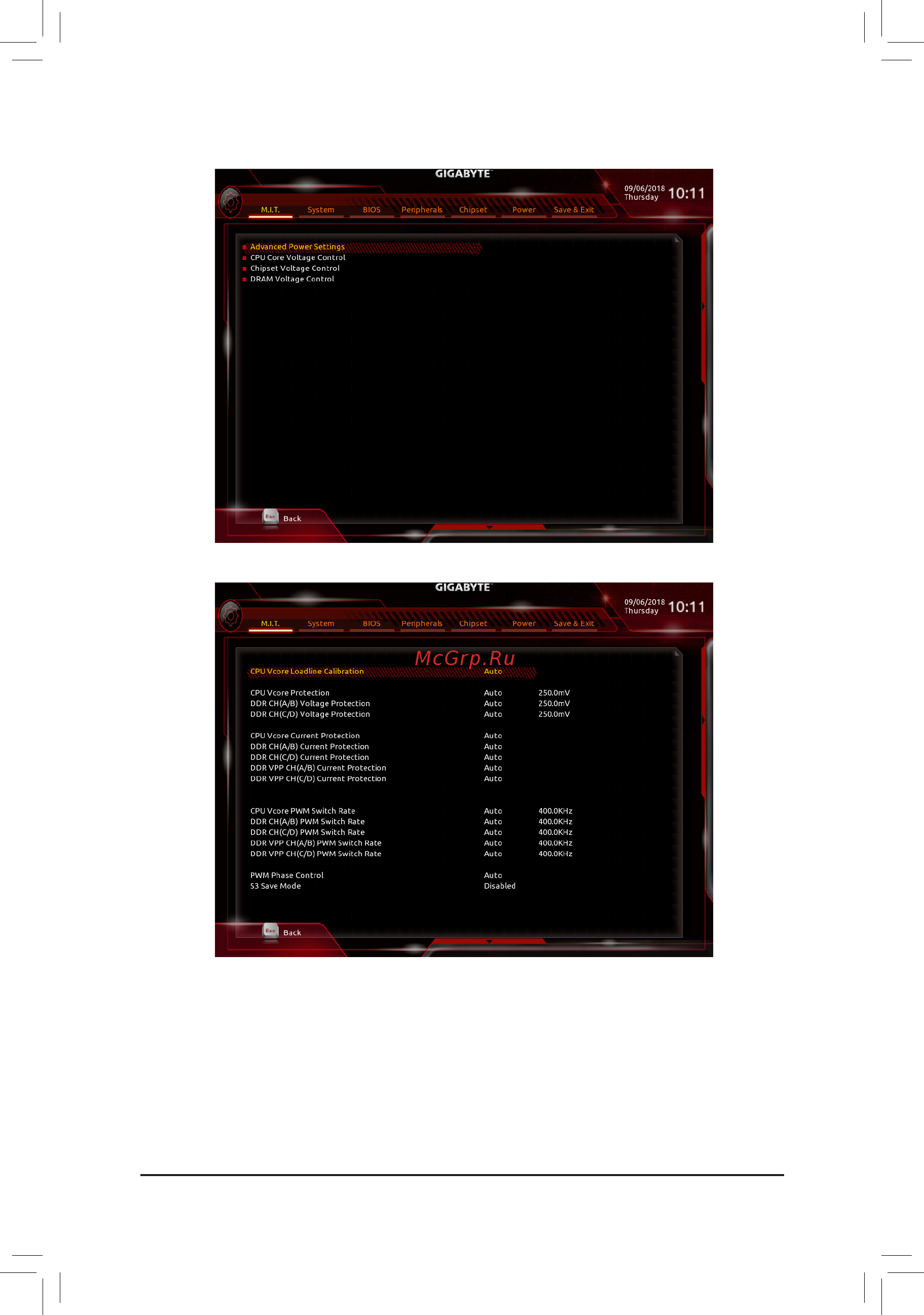

` Advanced Voltage Settings

` Advanced Power Settings

& CPU Vcore Loadline Calibration

 AllowsyoutocongureLoad-LineCalibrationfortheCPUVcorevoltage.Selectingahigherlevelkeeps

the CPU Vcore voltage more consistent with what is set in BIOS under heavy load. Auto lets the BIOS

automaticallycongurethissettingandsetsthevoltagefollowingIntel'sspecications.(Default:Auto)

& CPU Vcore Protection

Allows you to set the over-current protection level for the CPU Vcore voltage. The adjustable range is from

150.0mV to 400.0mV. AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)
