- 85 -
Conguring a RAID Set
B-2: Installation in Intel RST Premium mode
IftheSATAcontrollerhasbeenconguredinIntelRSTPremiummode,pleasefollowthestepsbelow:
• An Optane
™
memory cannot be used to accelerate an M.2 PCIe SSD.
• Do not abruptly remove the Optane
™
memory. Doing so will cause the operating system to stop functioning
correctly.
• If you want to change/remove the Optane
™
memory, you must disable it using the Intel
®
RapidStorage
TechnologyorIntel(R)OptaneMemoryapplicationrst.
• After enabling the Optane
™
memory, the related BIOS settings will remain even after a BIOS update.

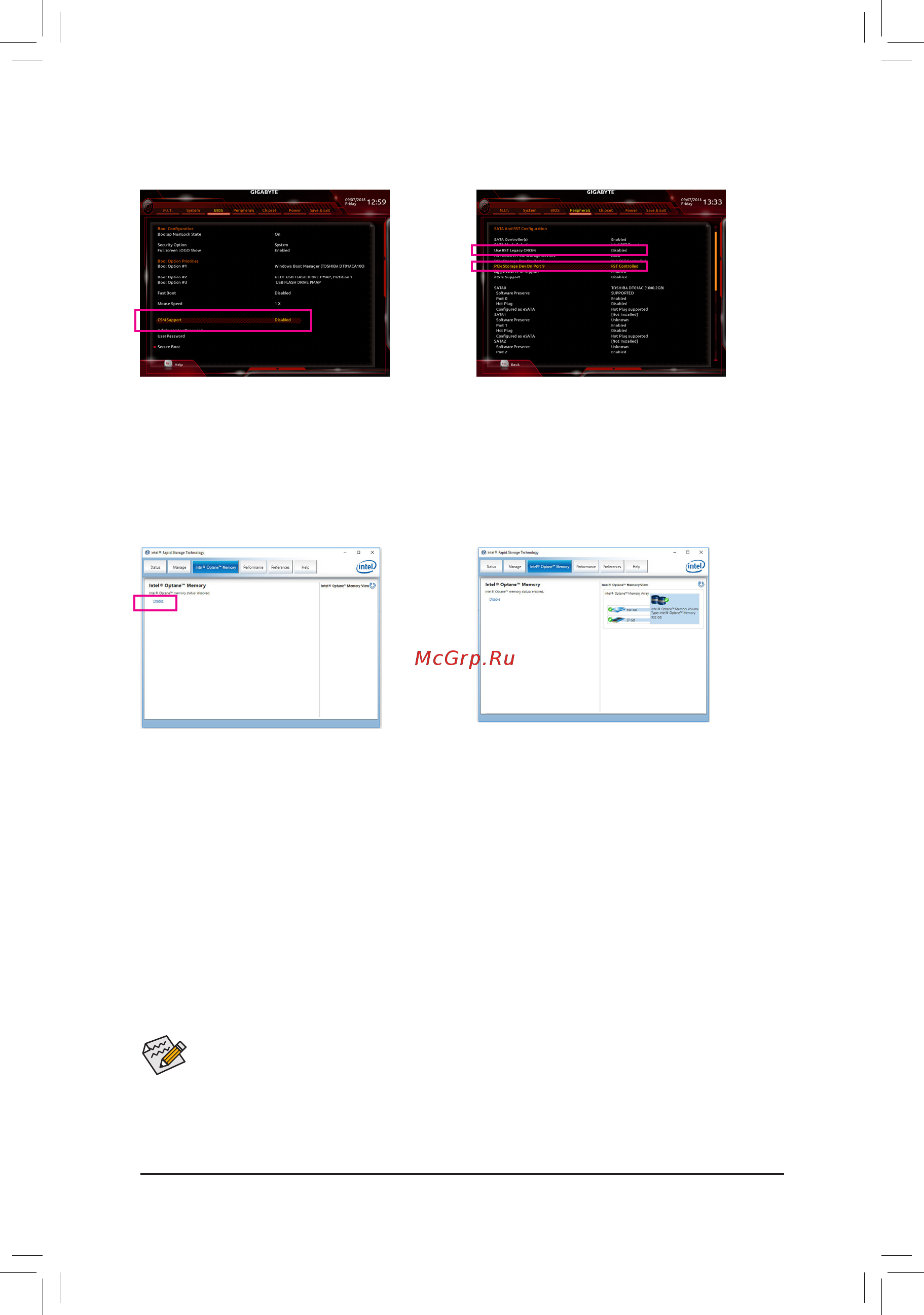

Step 1:
After system restarts, go to the BIOS Setup, make sure CSM
Support under the BIOS menu is disabled.
Step 3:
Enter the operating system, launch the Intel
®
RapidStorage
Technology utility from the Start menu, and then enable Intel
®
Optane
™
Memory on the Intel
®
Optane
™
Memory screen.
Follow the on-screen instruction to continue the installation
and then restart the system when completed.
Step 4:
Launch the Intel
®
Rapid Storage Technology utility from
the Start menu and make sure the Intel
®
Optane
™
Memory
has been enabled.
Step 2:
Go to Peripherals\SATAAndRSTConguration and make
sure USE RST Legacy OROM is disabled and set PCIe
Storage Dev On Port 9 to RST Controlled.
