BIOS Setup
- 42 -
B. Easy Mode

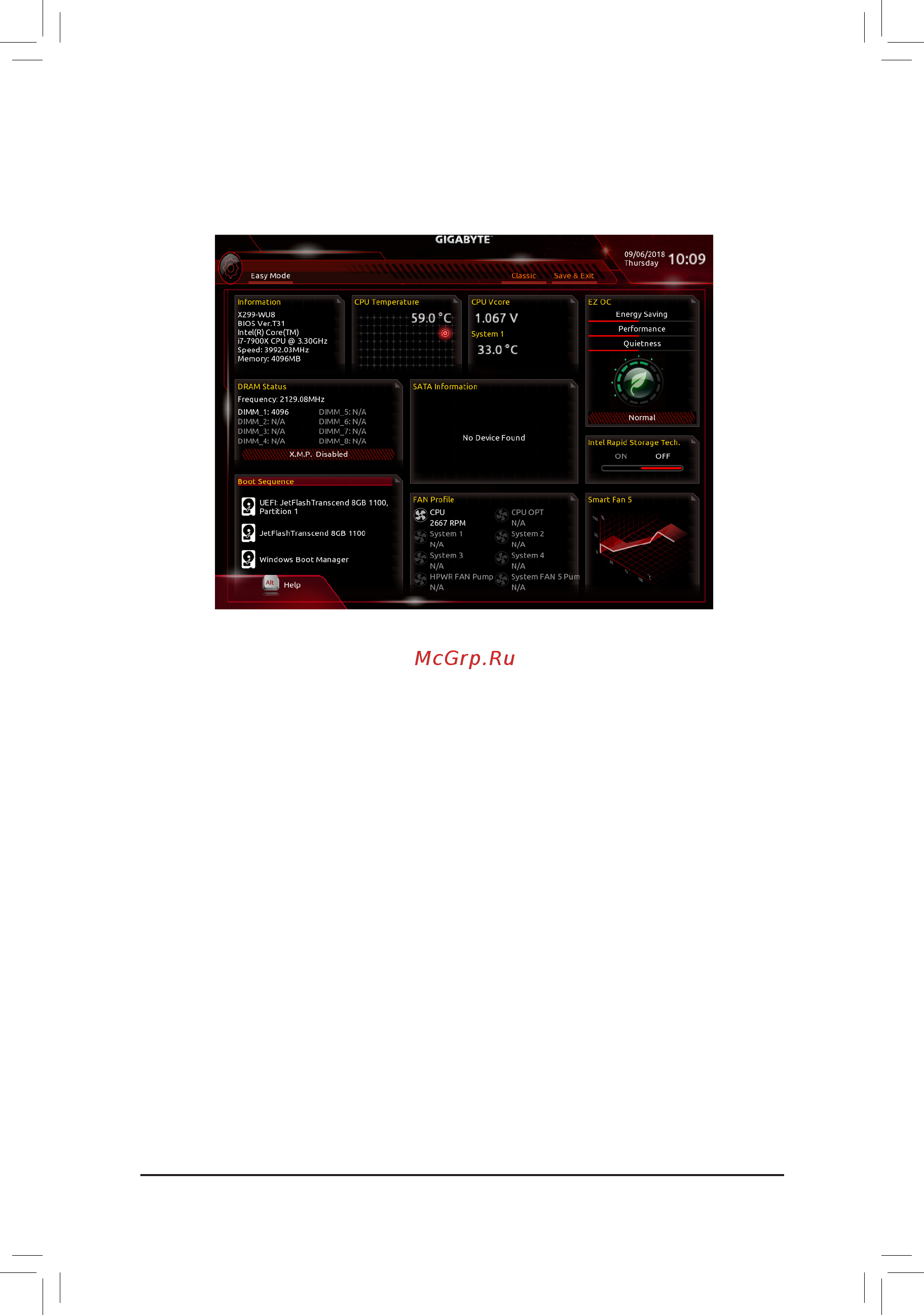

Easy Mode allows users to quickly view their current system information or to make adjustments for optimum
performance.InEasyMode,youcanuseyourmousetomovethroughcongurationitemsorpress<F2>to
switch to the Classic Setup screen.
