- 17 -

Hardware Installation

DDR4_1_1B

DDR4_2_1A

DDR4_2_1C

DDR4_1_1D

DDR4_4_2C

DDR4_3_2D

DDR4_3_2B

DDR4_4_2A

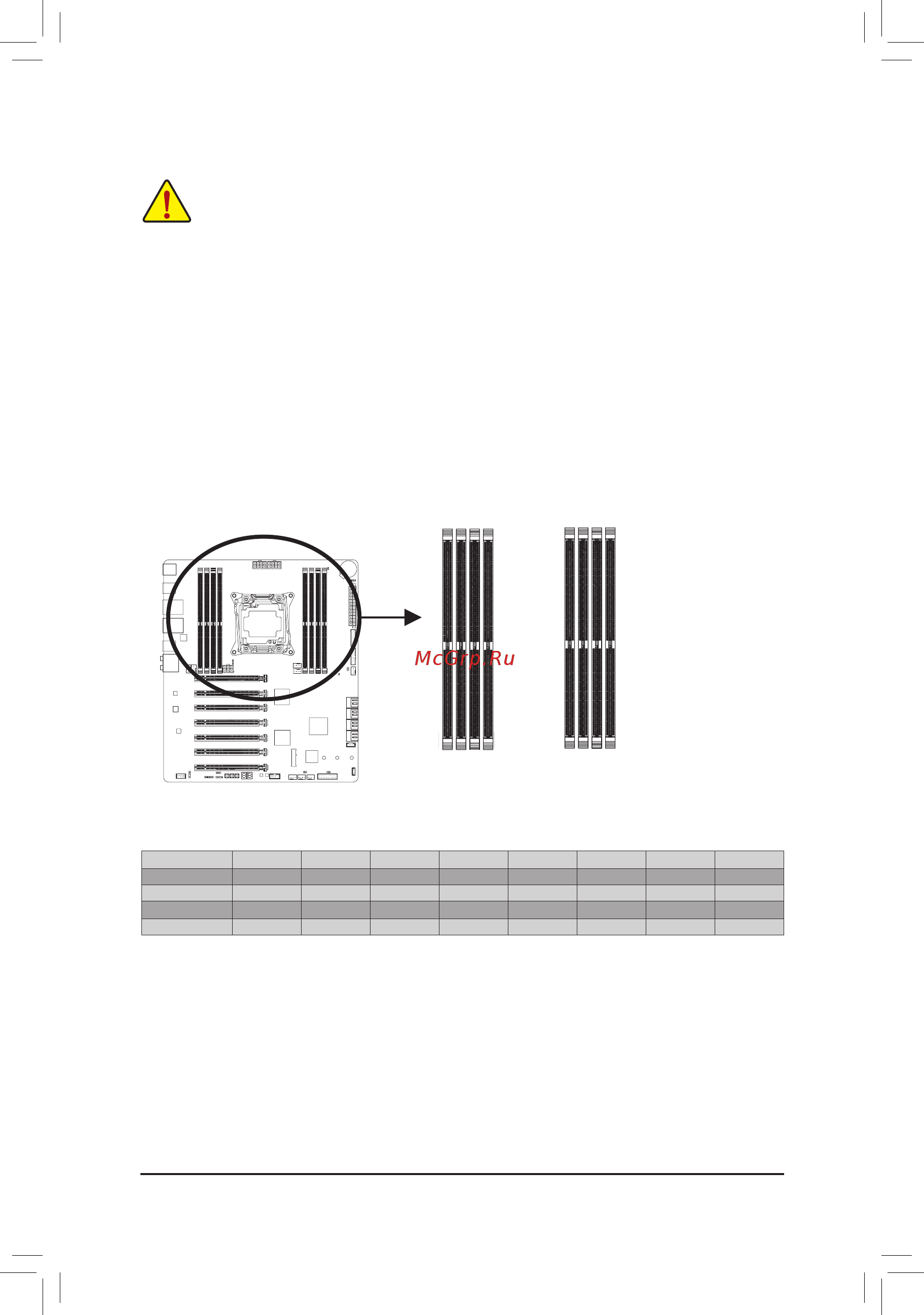

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

• Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

• Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

• Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

1-4-1 4ChannelMemoryConguration

This motherboard supports 4 Channel Technology. After the memory is installed, the BIOS will automatically

detect the specications and capacity of the memory. The eight DDR4 memory sockets are divided into four

channels and each channel has two memory sockets as following:

Channel A: DDR4_2_1A, DDR4_4_2A

Channel B: DDR4_1_1B, DDR4_3_2B

Channel C: DDR4_2_1C, DDR4_4_2C

Channel D: DDR4_1_1D, DDR4_3_2D

 Refer to the table below for memory installation according to the number of the memory modules you want to install:

DDR4_1_1B DDR4_3_2B DDR4_2_1A DDR4_4_2A DDR4_4_2C DDR4_2_1C DDR4_3_2D DDR4_1_1D

2 Modules

r r r r r a r a

4 Modules

a r a r r a r a

6 Modules

a r a r a a a a

8 Modules

a a a a a a a a

a: Installed, r: Not Installed.

Note: When installing the memory, make sure to begin with the rst socket of each channel, such as DDR4_2_1A,

DDR4_1_1B, DDR4_2_1C, or DDR4_1_1D.
