SiBE311209 Protection Control
Function 98
7. Protection Control

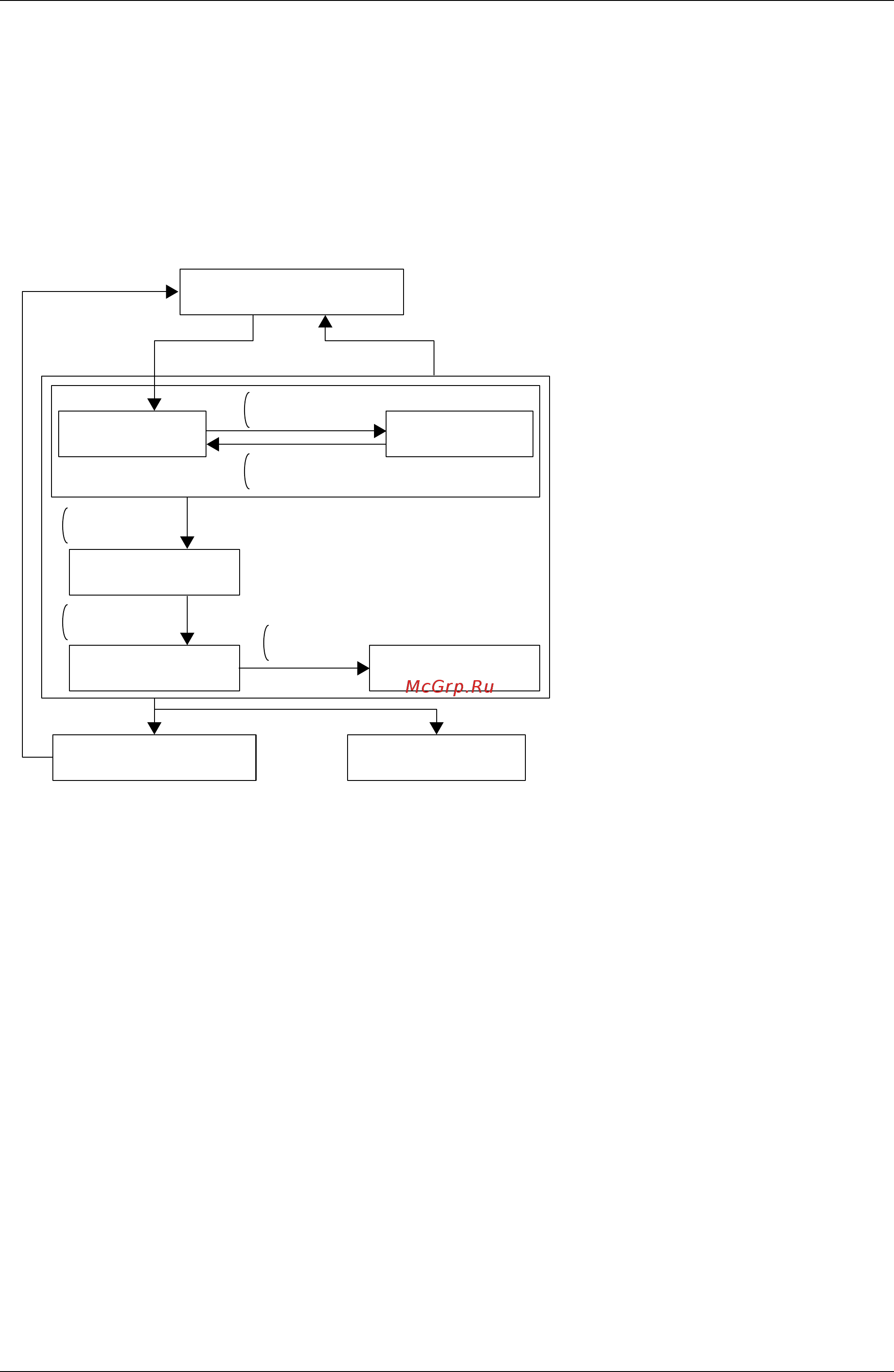

7.1 High Pressure Protection Control
This high pressure protection control is used to prevent the activation of protection devices due
to abnormal increase of high pressure and to protect compressors against the transient
increase of high pressure.
[In cooling operation]
∗ The following control is performed in each outdoor unit (and function unit).
Normal operation
Pc > 3.47MPa
Compressor step
= Max · step
Pc: Value detected by high pressure
sensor by each outdoor unit (and
function unit).
∗1: For INV. compressor steps, refer
to information on P.92 and 93.
INV. compressor (see ∗1):
3 steps down per 10 sec.
&
&
• Pc < 3.24MPa
• A lapse of 15 sec.
INV. compressor (see ∗1):
1 step up per 15 sec.
• Pc > 3.47MPa
• A lapse of 10 sec.
&
• Pc > 3.55MPa
• A lapse of 10 sec.
STD compressor 2:
OFF
&
• Pc > 3.55MPa
• A lapse of 10 sec.
STD compressor 1:
OFF
&
• Pc > 3.55MPa
•
A lapse of 10 sec.
INV. compressor:
52 Hz
High pressure switch (4.0MPa) is activated.
Pc > 3.64MPa
Restart standby
(2 times per 30 min. at maximum)
Stop due to error
(“
E3
” displayed)
