SiBE311209 Troubleshooting by Indication on the Remote Controller
Service Diagnosis 236

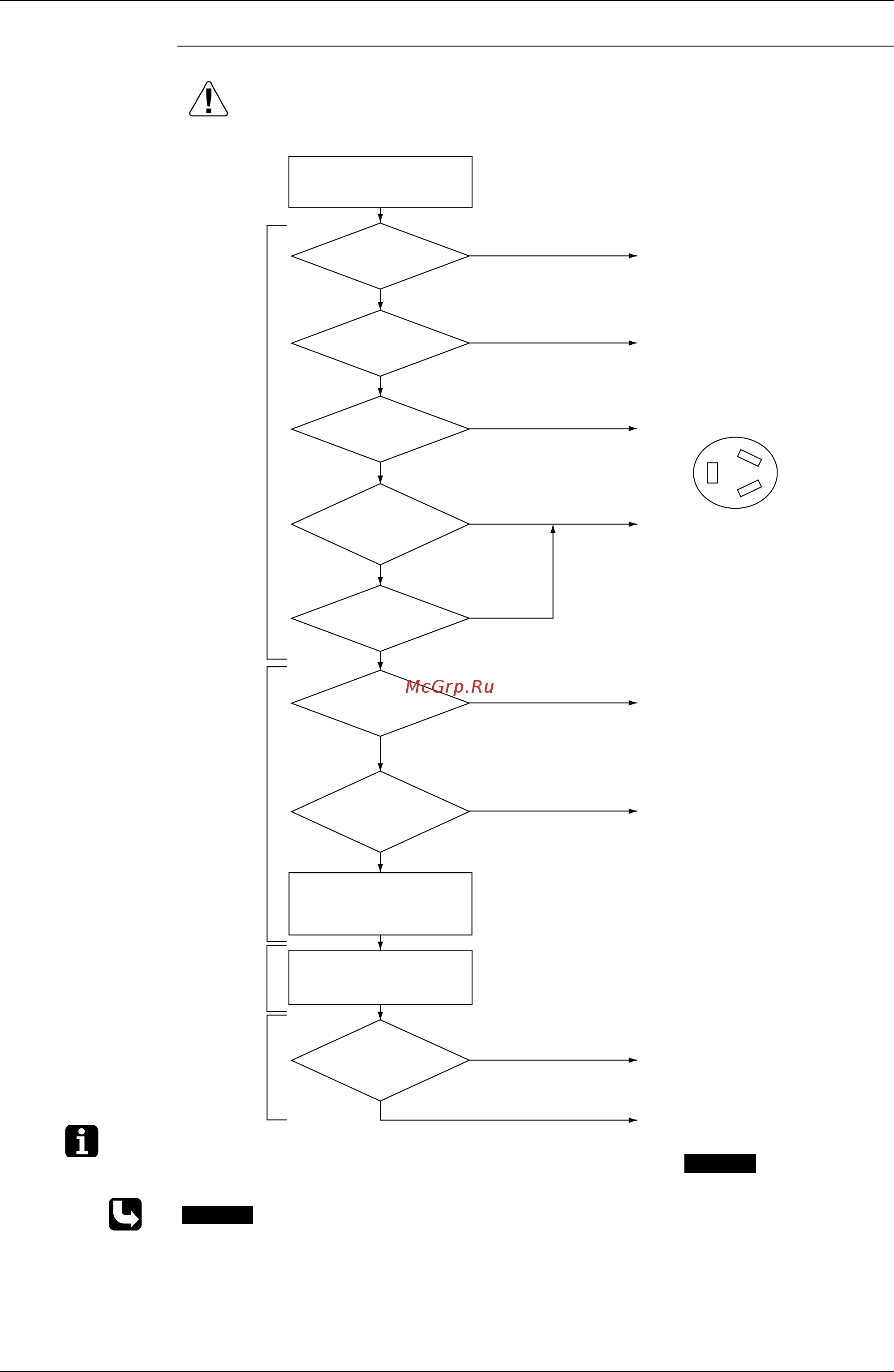

Troubleshooting
Note:
∗1:Pressure difference between high pressure and low pressure before starting.
∗2:The quality of power transistors/ diode modules can be judged by executing .
(Check it shutting the power supply OFF.)
Refer to P.307.
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.
While in monitor mode,
check the outdoor unit and
the function unit concerned.
Is the stop valve
open?
NO
YES
Are the relay wires to the
compressor normal?
NO
YES
Power OFF
Is the connection of UVW
phase order correct?
NO
YES
The insulation resistance of
the compressor is low (not
more than 100kΩ).
YES
NO
YES
NO
The compressor coil
has disconnection of
wires.
NO
YES
Restart and check the
operation. Check if the condition
occurs again.
YES
NO
Check if the start mode is in the high
differential pressure (not less than
0.5 MPa).
Power ON
Remove the connection between the
compressor and inverter. Set the power
transistor check mode ON using “Setting
mode 2” of the outdoor unit PCB.
Measure the inverter output voltage (∗2).
Note: Measurement should be made while
the frequency is stable.
Check if the inverter
output voltage between 3
phases is within ± 5V.
NO
YES
Local factor
Open the stop valve.
Replace the relay wires and
ensure right connection of the
connector.
Ensure the correct connection.
W
U
V
Replace the compressor (M1C).
Conclude the work
There is a possibility of defective
pressure equalizing.
Check the refrigerant circuit.
Defective pressure equalizing
Check the refrigerant circuit.
Replace the inverter PCB (A3P).
Replace the inverter compressor.
Power ON
Power OFF
CHECK 4
CHECK 4
