SiBE311209 Field Setting
Test Operation 166
3.2.4 Setting by BS Button
The following settings are made by BS button on PCB.
In case of multi-outdoor unit system, various items should be set with the master unit.
(Setting with the slave unit is disabled.)
The master unit and slave unit can be discriminated with the LED display as shown below.
(Factory setting)
There are the following three setting modes.
c
Setting mode 1 (H1P OFF)
Initial status (when normal) : Used to select the cool/heat setting. Also indicates during
“abnormal”, “low noise control” and “demand control”.
d
Setting mode 2 (H1P ON)
Used to modify the operating status and to set program addresses, etc. Usually used in
servicing the system.
e
Monitor mode (H1P blinks)
Used to check the program made in Setting mode 2.

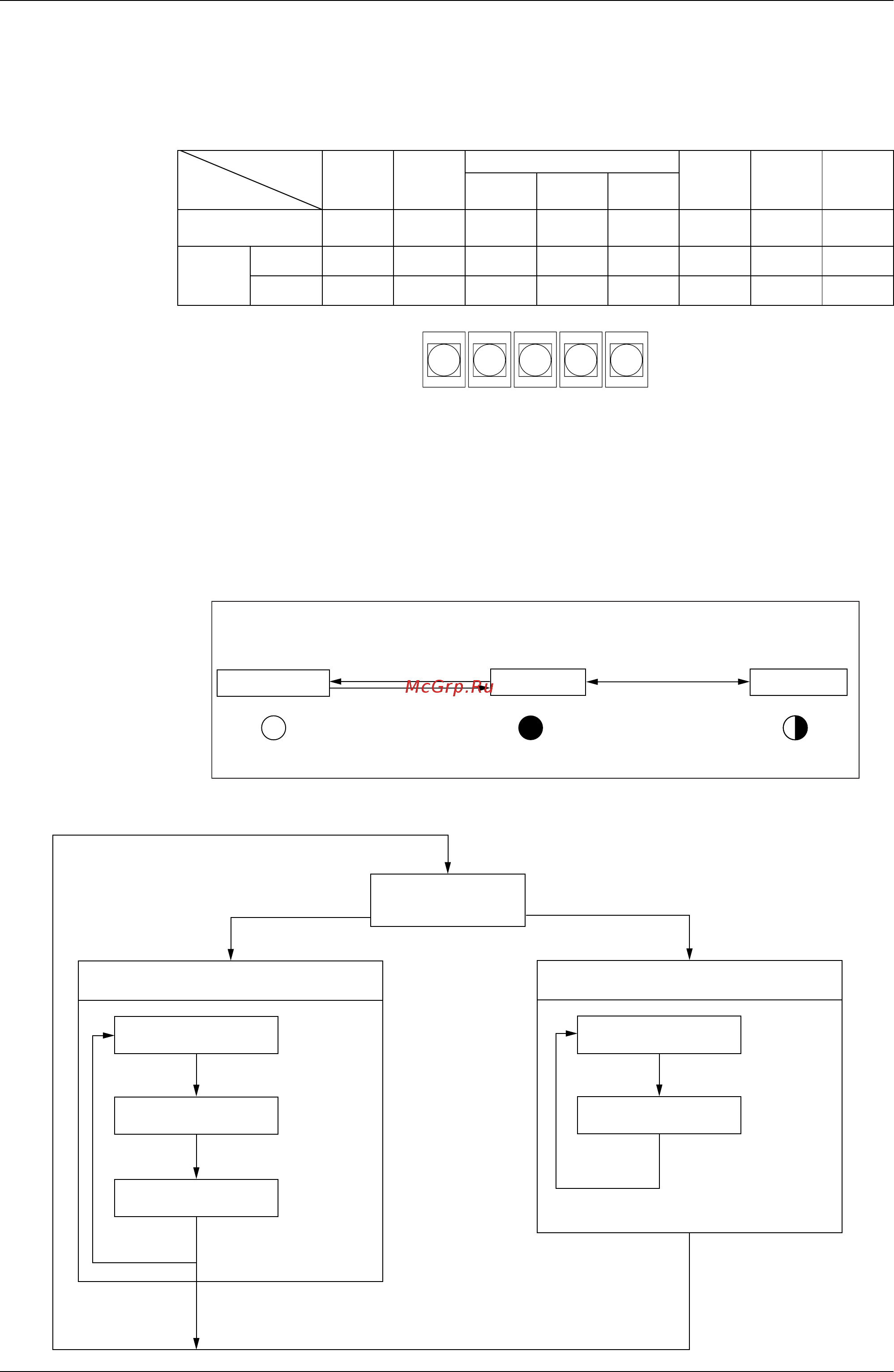

Mode changing procedure 1
Mode changing procedure 2
LED display
MODE
H1P
TEST
H2P
COOL/HEAT select
Low
noise
H6P
Demand
H7P
Multi
H8P
IND
H3P
MASTER
H4P
SLAVE
H5P
Single-outdoor-unit
system
hhkhhhhh
Outdoor-
multi
system
Master
hhkhhhhk
Slave
hhhhhhhl
BS1
MODE
BS2
SET
BS3
RETURN
BS4
TEST
BS5
RESET
Setting mode 1
Monitor mode
H1P
Blinking
MODE MODE
OFF
H1P
Setting mode 2
MODE
ON
H1P
Press and hold the BS1
(MODE) for 5 seconds.
Press the BS1 (MODE) once.
(Normal)
Press the BS1 (MODE)
once.
Using the MODE button, the modes can be changed as follows.
Contents display
Monitor mode
Setting mode 2
(Set): Select mode with BS2 (SET) in each selection step.
Press BS1 (MODE) once.
Press BS1 (MODE) for more than 5 sec.
Setting mode 1
(Initial condition)
Press BS3
(RETURN) once.
Setting item selection
(SET)
Setting condition
selection (
SET
)
Press BS3
(RETURN) once.
Setting condition
(Contents) display
Press BS3
(RETURN) once.
Press BS1
(MODE) once.
Press BS1
(MODE)
once.
Check item selection
(SET)
Press BS3
(RETURN) once.
Press BS3
(RETURN) once.
