SiBE37-704_A Test Operation
Test Operation 164
Note:
After knocking out the holes, we recommend you remove burrs in the knock holes (See
above figure) and paint the edges and areas around the edges using the repair paint.

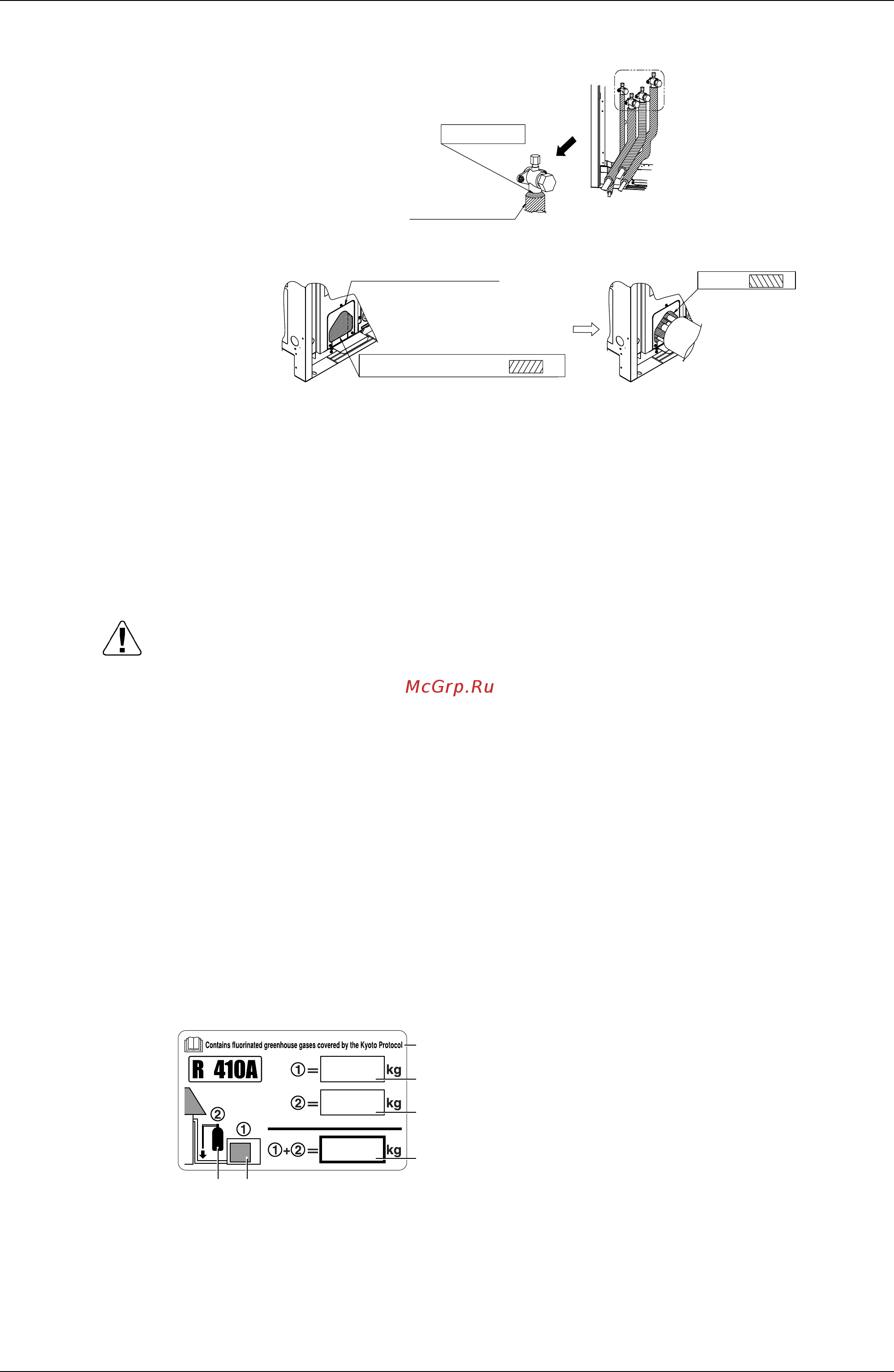

1.2.5 Charging Refrigerant
- REYQ8~16P8Y1B
The outdoor unit is factory charged, but depending on the length of the piping when installed,
the outdoor unit may require additional charging.
For charging the additional refrigerant follow the procedure as described in this chapter.
Refrigerant cannot be charged until all field wiring and field piping has been completed.
Refrigerant may only be charged after performing the leak test and the vacuum drying.
1.2.5.1 Important information regarding the refrigerant used
This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent
gases into the atmosphere.
Refrigerant type : R-410A
GWP
(1)
value : 1975
(1)
GWP = global warming potential
Please fill in with indelible ink,
the factory refrigerant charge of the product,
the additional refrigerant amount charged in the field and
+ the total refrigerant charge
on the refrigerant charge label supplied with the product.
The filled out label must be adhered in the proximity of the product charging port (e.g. onto the
inside of the service cover).
Caulking, etc.
Insulation material
Piping lead-out hole lid
Open a knock hole at “ ”.
Block “ ”.
3
5
6
2
1
4
-
1 factory refrigerant charge of the product:
see unit name plate
2 additional refrigerant amount charged in the field
3 total refrigerant charge
4 contains fluorinated greenhouse gases covered by the
Kyoto Protocol
5 outdoor unit
6 refrigerant cylinder and manifold for charging
