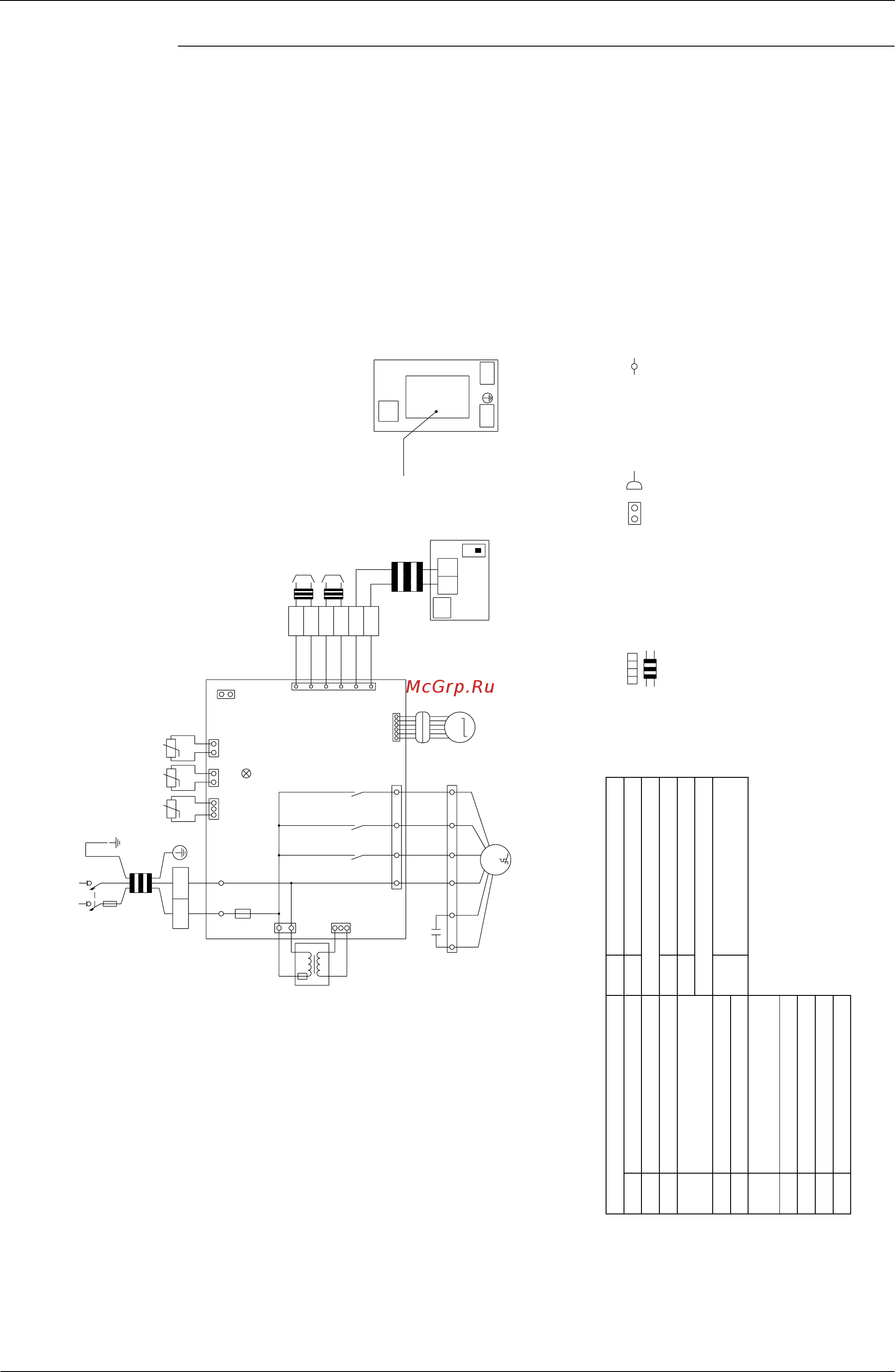

Wiring Diagrams for Reference SiBE37-704_A
443 Appendix
FXLQ20MA / 25MA / 32MA / 40MA / 50MA / 63MAVE
FXNQ20MA / 25MA / 32MA / 40MA / 50MA / 63MAVE
POWER SUPPLY
220-240V 220V
~~
60Hz50Hz
X1M
A1P
LN
RED BLU
L
N
F1U
X3A
X13A X12A X11A
R1T R2TR2T R3T
t° t° t°
HAP
X18A
X30A
T2
T1
F2
F1
P2
P1
PNK
WHT
YLW
ORG
BLU
BLK
T2
T1
F2
F1
P2
P1
X2M
NOTE-4
INPUT FROM OUTSIDE
NOTE-3
TRANSMISSION WIRING
CENTRAL REMOTE CONTROLLER
X18A
T1R
A1P
X1M
X2M
CONTROL BOX
R1T
P1
P2
SS1
WIRED REMOTE CONTROLLER
(OPTIONAL ACCESSORY)
WHT
X7A
M
Y1E
K3R
FLL
BRN
WHT
BRN
K2R
FL
ORG
ORG
K1R
FH
BLK
BLK
Q1M
M1F
M
~
RED
RED
YLW
YLW
FC
X4A
C1
WHT
WHT
X1A
T1R
t°
INDOOR UNIT X2M
TERMINAL BLOCK (CONTROL)
A1P PRINTED CIRCUIT BOARD Y1E
ELECTRONIC EXPANSION VALVE
C1 CAPACITOR (M1F) WIRED REMOTE CONTROLLER
F1U FUSE ( (B) , 5A, 250V) R1T THERMISTOR (AIR)
HAP LIGHT EMITTING DIODE
(SERVICE MONITOR-GREEN)
SS1
SELECTOR SWITCH (MAIN/SUB)
CONNECTOR FOR OPTIONAL PARTS
K1R-K3R
MAGNETIC RELAY (M1F) X18A
CONNECTOR (WIRING ADAPTOR FOR
ELECTRICAL APPENDICES)
M1F MOTOR (INDOOR FAN)
Q1M THERMO. SWITCH
(M1F EMBEDDED)
R1T THERMISTOR (AIR)
R2T·R3T
THERMISTOR (COIL)
T1R
TRANSFORMER (220-240V/22V)
X1M TERMINAL BLOCK (POWER)
NOTES)
1. : TERMINAL BLOCK, , : CONNECTOR, : TERMINAL
2. : FIELD WIRING
3. IN CASE USING CENTRAL REMOTE CONTROLLER, CONNECT IT TO THE UNIT IN
ACCORDANCE WITH THE ATTACHED INSTRUCTION MANUAL.
4. WHEN CONNECTING THE INPUT WIRES FROM OUTSIDE, FORCED OFF OR ON/OFF
CONTROL OPERATION CAN BE SELECTED BY REMOTE CONTROLLER. IN DETAILS,
REFER TO THE INSTALLATION MANUAL ATTACHED THE UNIT.
5. SYMBOLS SHOW AS FOLLOWS. (PNK : PINK WHT : WHITE YLW : YELLOW
ORG : ORANGE BLU : BLUE BLK : BLACK RED : RED BRN : BROWN)
6. USE COPPER CONDUCTORS ONLY.
3D039826E
