SiBE37-704_A Precautions for New Refrigerant (R-410A)
Precautions for New Refrigerant (R-410A) 478

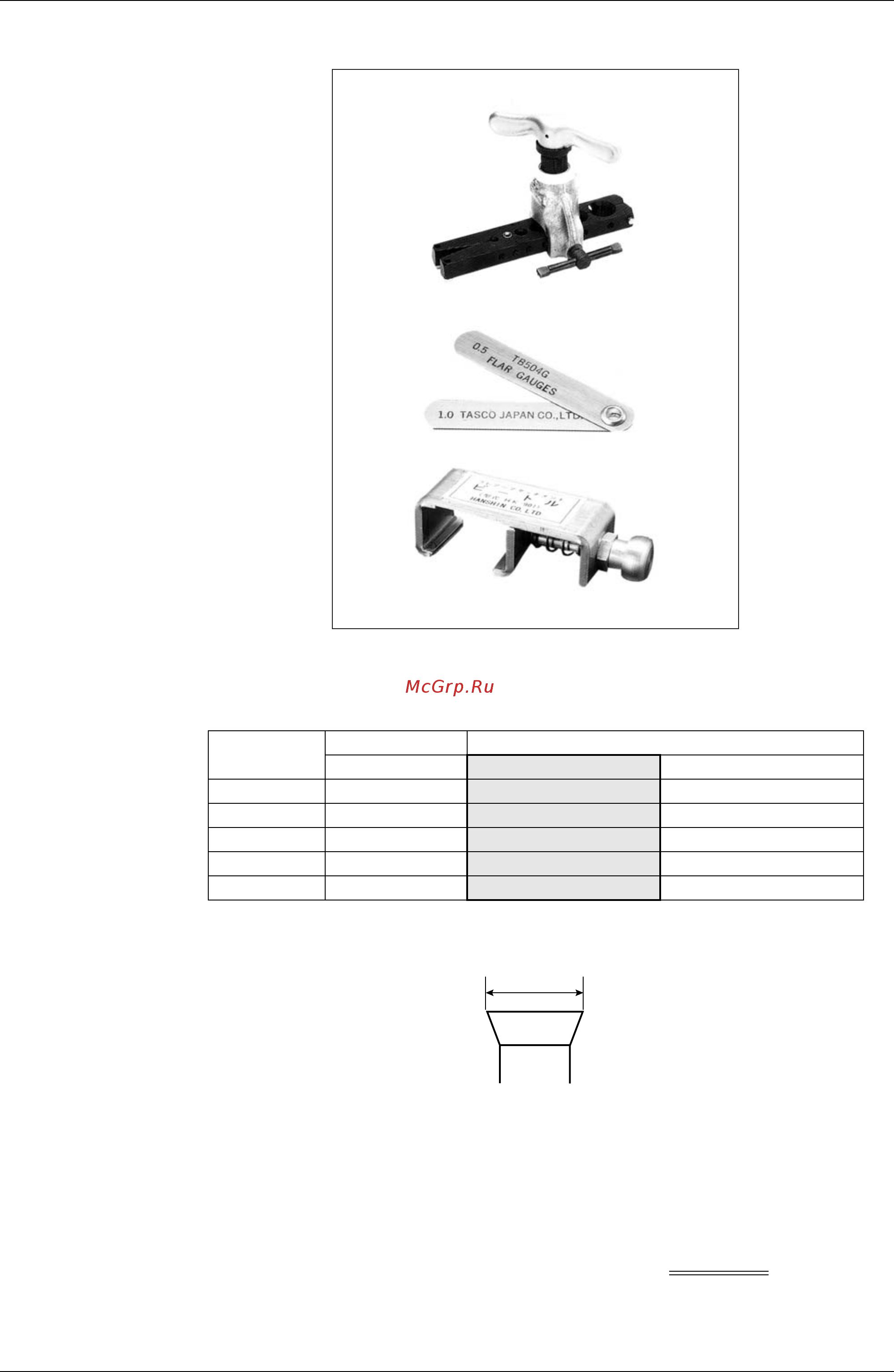

1. Flaring tool
Specifications
• Dimension A
Unit:mm
Differences
• Change of dimension A
Conventional flaring tools can be used when the work process is changed.
(change of work process)
Previously, a pipe extension margin of 0 to 0.5mm was provided for flaring. For R-410A air
conditioners, perform pipe flaring with a pipe extension margin of 1.0 to 1.5mm
.
(For clutch type only)
Conventional tool with pipe extension margin adjustment can be used.
Nominal size
Tube O.D. A
Do
Class-2 (R-410A) Class-1 (Conventional)
1/4 6.35 9.1 9.0
3/8 9.52 13.2 13.0
1/2 12.70 16.6 16.2
5/8 15.88 19.7 19.4
3/4 19.05 24.0 23.3
Flare gauge
+
0
−
0.4
Dimension A
For class-1: R-407C
For class-2: R-410A
