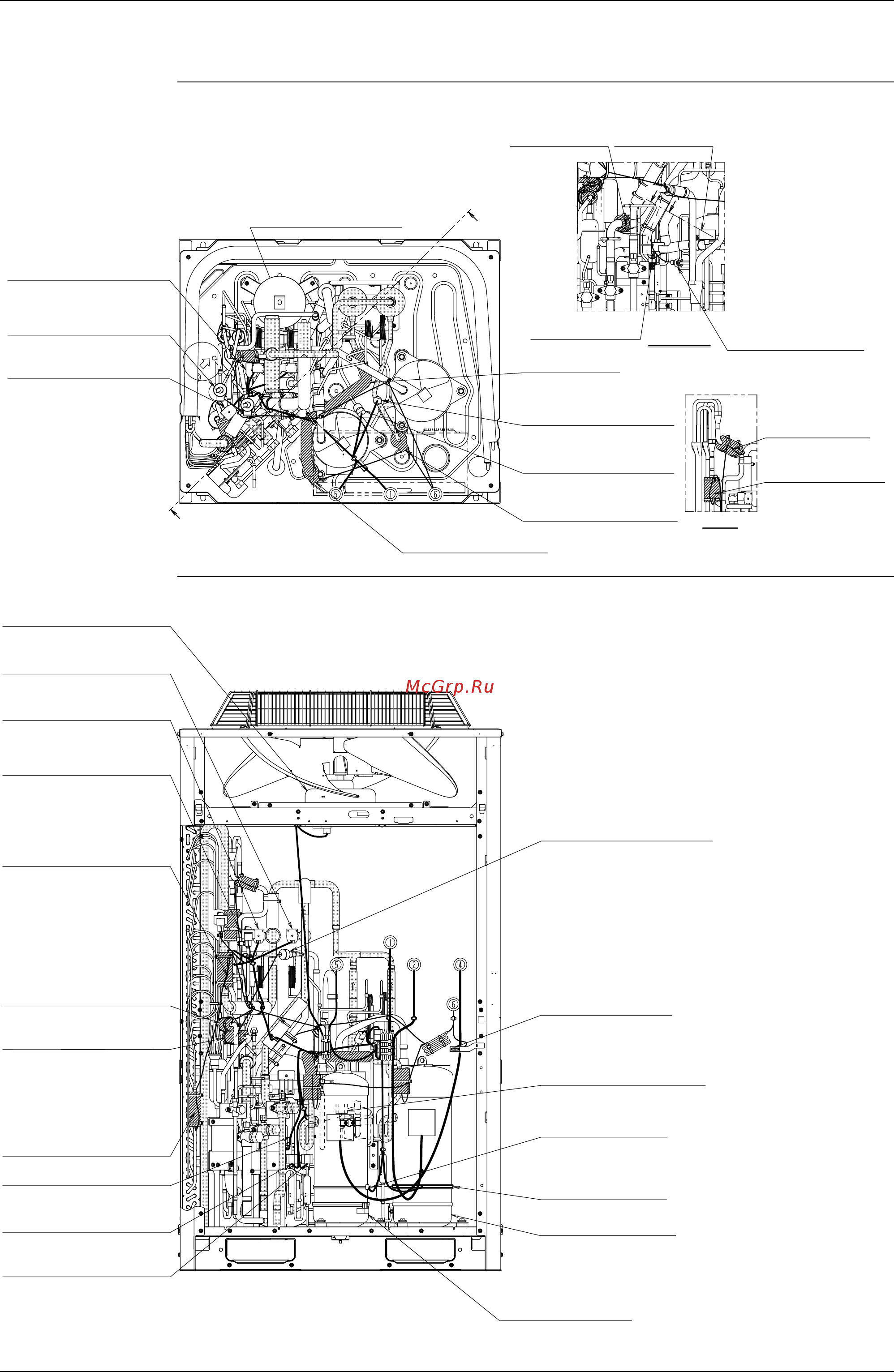

SiBE37-704_A Functional Parts Layout
Refrigerant Circuit 76
2.4 REMQ10P, 12P
Plan
Front View
Note: For reference number, refer to page 67.
(11) SOLENOID VALVE
(RMTL)
(7)
COIL FOR EXPANSION VALVE
(SUBCOOLING)
(9) SOLENOID VALVE
(EV BYPASS)
(25)
REFRIGERANT REGULATOR
M
(31) THERMISTOR
(M1C DISCHARGE PIPE)
(20)
PRESSURE SWITCH
(HIGH PRESSURE PROTECTION)
(31) THERMISTOR
(SUCTION)
(10)
SOLENOID VALVE
(HOT GAS)
(8)
COIL FOR EXPANSION
VALVE (CHARGE)
SECTION M-M
(18) PRESSURE SENSOR
(LOW PRESS.)
(40) THERMISTOR
(LIQUID)
(38)
THERMISTOR
(SUBCOOLING HEAT EXCH. GAS)
VIEW N
M
INSULATION TUBE
(19)
PRESSURE SWITCH
(HIGH PRESSURE PROTECTION)
(33) THERMISTOR
(M2C DISCHARGE PIPE)
N
(Y4S)
(Y3E)
(Y6S)
(
R31T
)
(R32T)
(S1PH)
(S2PH)
(Y2E)
(R8T)
(Y5S)
(S2NPL)
(R9T)
(R5T)
(4) FAN MOTOR
(16)
FOUR WAY VALVE (PIPE)
(15)
FOUR WAY VALVE (HEAT EXC.)
(6)
COIL FOR EXPANSION VALVE
(MAIN)
(36) THERMISTOR
(HEAT EXC. GAS)
(37) THERMISTOR
(39) THERMISTOR
(35) THERMISTOR
(HEAT EXCH. DEICER)
EARTH WIRE
(2) COMPRESSOR (STD1)
(17)
PRESSURE SENSOR (HIGH PRESS.)
(12)
SOLENOID VALVE (RMTG)
(13)
SOLENOID VALVE (RMTO)
(30) THERMISTOR (AIR)
(14) SOLENOID VALVE (RMTT)
CRANKCASE HEATER
CRANKCASE HEATER
(1) COMPRESSOR (INV)
(M1F)
(Y2S)
(Y3S)
(Y1E)
(R2T)
(R7T)
(R6T)
(R4T)
(Y1S)
(Y7S)
(M1C)
(M2C)
(E2HC)
(E1HC)
(Y8S)
(R1T)
(S1NPH)
